Automatic Shrink Wrap Machine
This automatic shrink wrap machine is designed for efficient packaging of various products using heat-shrinkable film. It features adjustable conveyor speeds and temperature controls to accommodate different film types and product sizes.
Technical Specifications
Product Overview
High-Efficiency Shrink Packaging

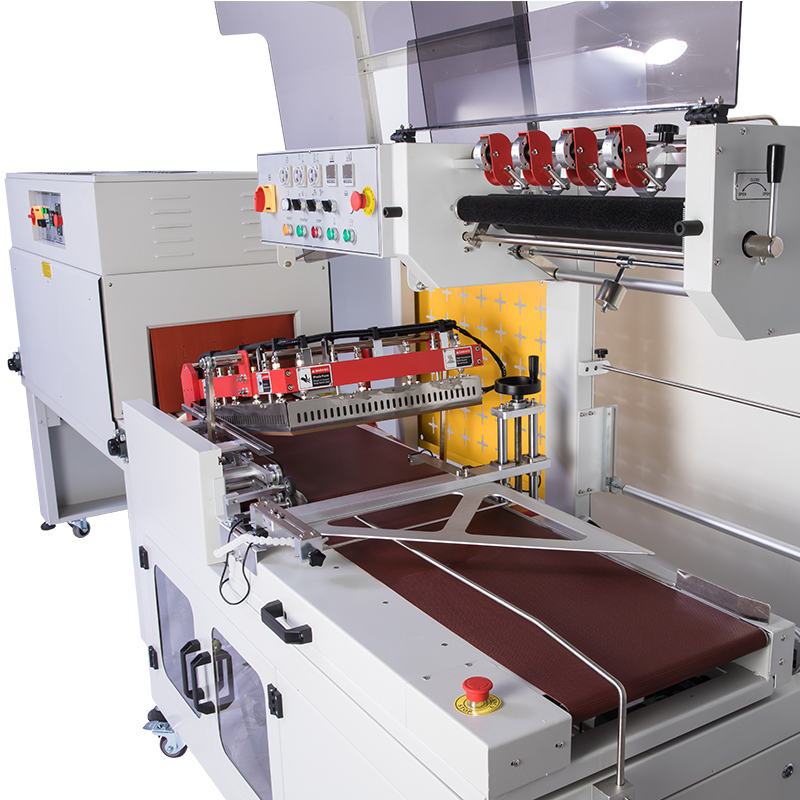

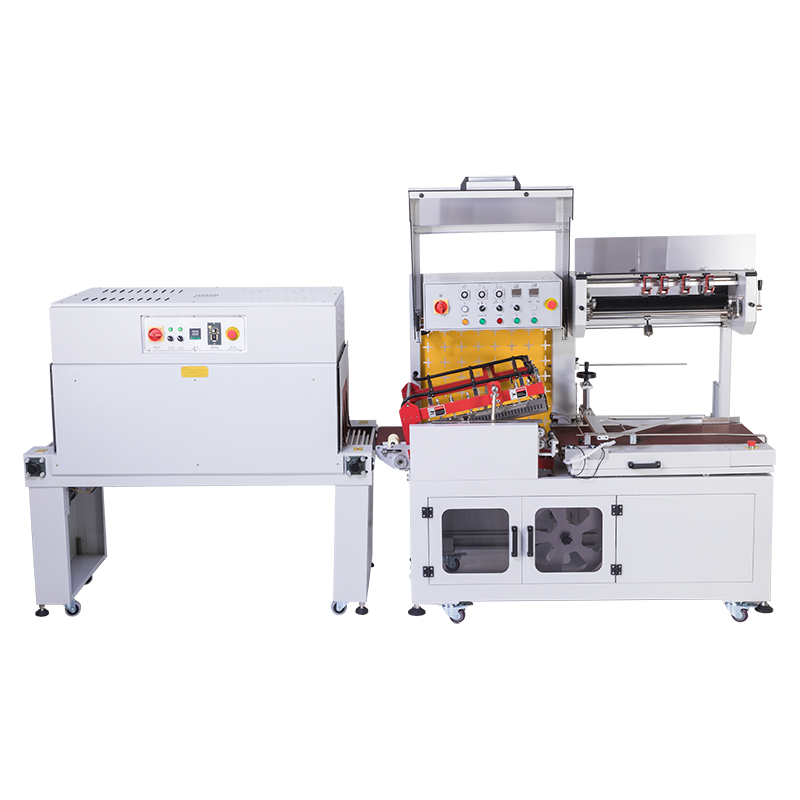

The automatic shrink packaging machine is designed for seamless integration into production lines, offering high working efficiency. It automates the entire process of feeding, transporting, packing, sealing, and shrinking in a single operation. This system is ideal for industries such as food, beverage, and pharmaceuticals, providing a secure, tamper-evident finish for various product sizes.
Technical Specifications
Model Specifications
| Feature | Model DQL-5545 | Model SM4525 |
|---|---|---|
| Voltage | 220V/50-60HZ | 220V/380V 50-60HZ |
| Power | 3KW | 10KW |
| Packing Speed | 0-30pcs/min | 0-20m/min |
| Machine Weight | 330KG | 185KG |
Maximum Packing Dimensions
- H < 130
- L + 2H < 550
- W + 2H < 450
- W 450 * H 250
- Cutter Dimensions
- L 565 * W 460
Key Features
Operational Capabilities
Automatic FeedingContinuous OperationAdjustable Conveyor SpeedTemperature Control
- Safety Features
- Emergency StopThermal Overload ProtectionProtective GuardsWarning Labels
