Automatic Nitrogen Tire Inflator for Trucks
This automatic nitrogen tire inflator is a portable system for light and heavy truck tires. It provides efficient nitrogen generation for optimal tire inflation.
Technical Specifications
Product Overview
Professional Nitrogen Inflation System

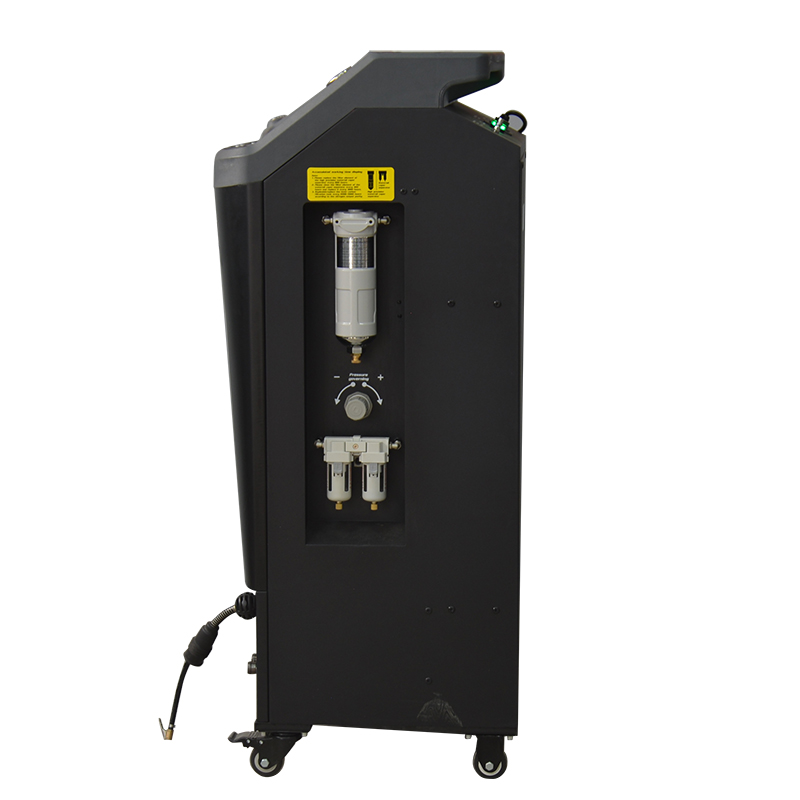

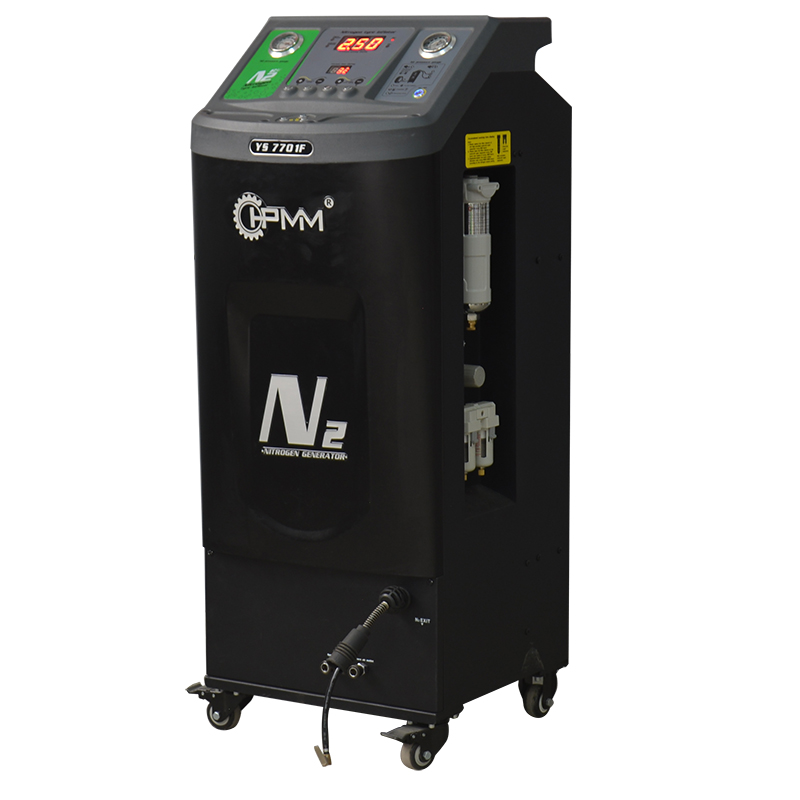

The Explorer Series Nitrogen Generator and Inflator is a professional-grade, fully automatic solution designed for efficient tire maintenance. Featuring advanced vacuum generation and integrated water/oil vapor separation, this portable system ensures high-purity nitrogen inflation for light truck and truck tires. Its robust construction and user-friendly LCD interface make it an essential tool for automotive service centers seeking reliability and precision.
Performance Metrics
Key Performance Metrics
99 %
Max Nitrogen Purity
50 L/min
Max Output Capacity
50 L
Tank Capacity
Technical Specifications
- Power Supply
- AC220V/1PH/50Hz
- Air Inlet Pressure
- 9-10 bar (130-145 psi)
- Nitrogen Output Pressure
- 1-6 bar (15-87 psi)
- Required Air Compressor
- 5.5-7.5kw, 10bar, 1-1.5m³/Min
Features & Equipment
Included Components
- 10M Hose Reel
- Water/Oil Filter & Separator
- High Precision Filter
- System Features
- Full-AutomaticPortableVacuum GenerationLCD DisplayAutomatic Water Drainage
Compatibility
Suitable For
CarLight TruckTruck
