Automatic Nail Making Machine for Iron Steel and Concrete

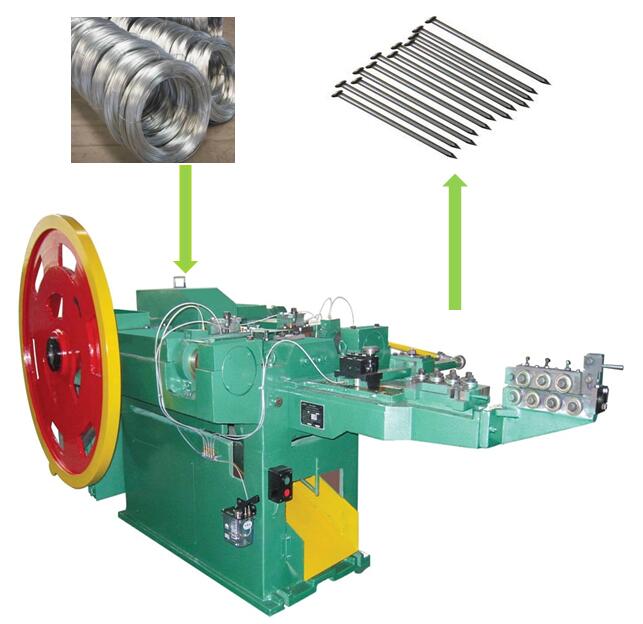

This automatic machine is designed for the efficient production of iron, steel and concrete nails. It is engineered for continuous operation and offers reliable performance in demanding industrial environments.
Technical Specifications
Product Overview
Automatic Nail Making Series

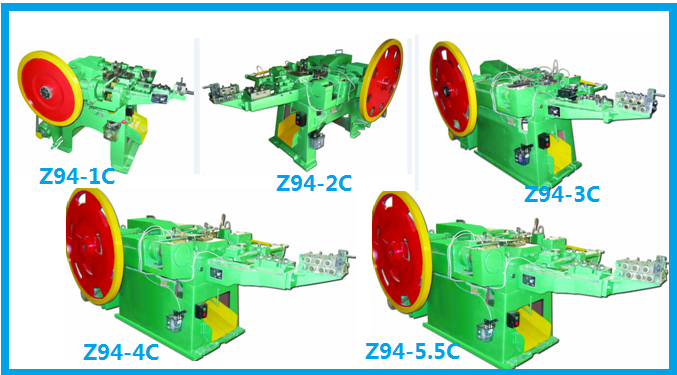

The Z94 series automatic nail making machine is a high-performance solution engineered for the efficient production of iron, steel, and concrete nails. Featuring advanced plunger and oil pipe lubrication, these machines ensure high-speed operation, low noise levels, and minimal impact during the manufacturing process. Designed for durability and versatility, the series supports the creation of standard, concrete, stainless steel, D-shape, and T-shape nails, making it an essential asset for industrial-scale nail production.
Technical Specifications
Performance Comparison
| Parameter | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5.5C | Z94-6.5C |
|---|---|---|---|---|---|---|
| Max Nail Diameter (mm) | 1.6 | 2.8 | 3.4 | 4.5 | 5.5 | 6.5 |
| Min Nail Diameter (mm) | 0.9 | 1.2 | 1.8 | 2.8 | 3.7 | 4.5 |
| Max Nail Length (mm) | 25 | 50 | 80 | 100 | 150 | 200 |
| Min Nail Length (mm) | 9 | 16 | 30 | 50 | 80 | 100 |
| Output (pcs/min) | 450 | 350 | 320 | 260 | 200 | 160 |
| Motor Power (kW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 11 |
| Weight (kg) | 560 | 1,200 | 1,400 | 2,000 | 2,500 | 5,000 |
Certification and Quality
- Standards and Compliance
- CEISO 9001
Manufacturing Capabilities
Supported Nail Types
- Standard Nails
- Concrete Nails
- Stainless Steel Nails
- Asphalt Felt Nails
- D-Shape Nails
- T-Shape Nails
