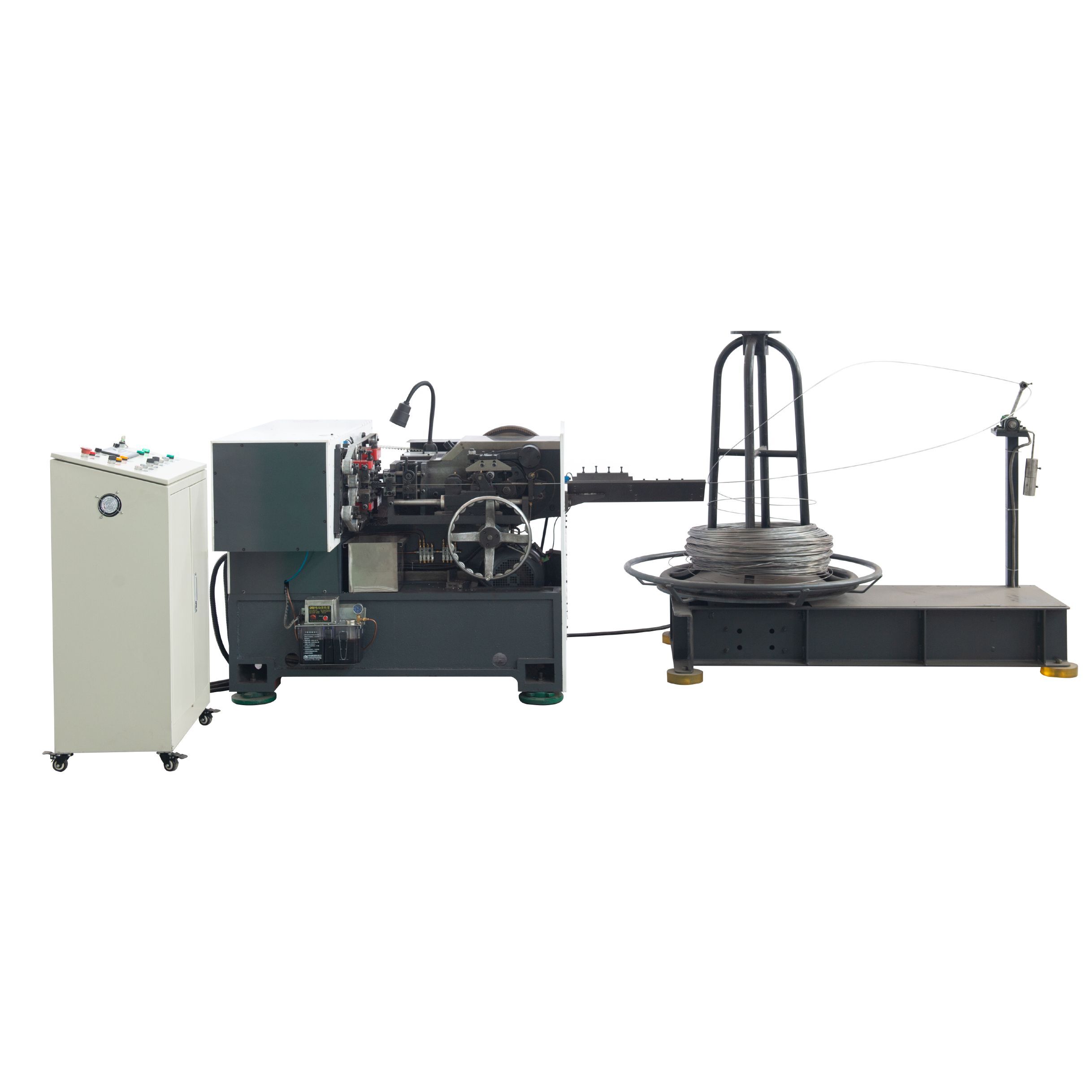

Automatic Nail Making Machine
This automatic nail making machine is designed for the efficient production of various nail sizes and shapes. It utilizes an automated wire feeding system and synchronized components for optimal performance.

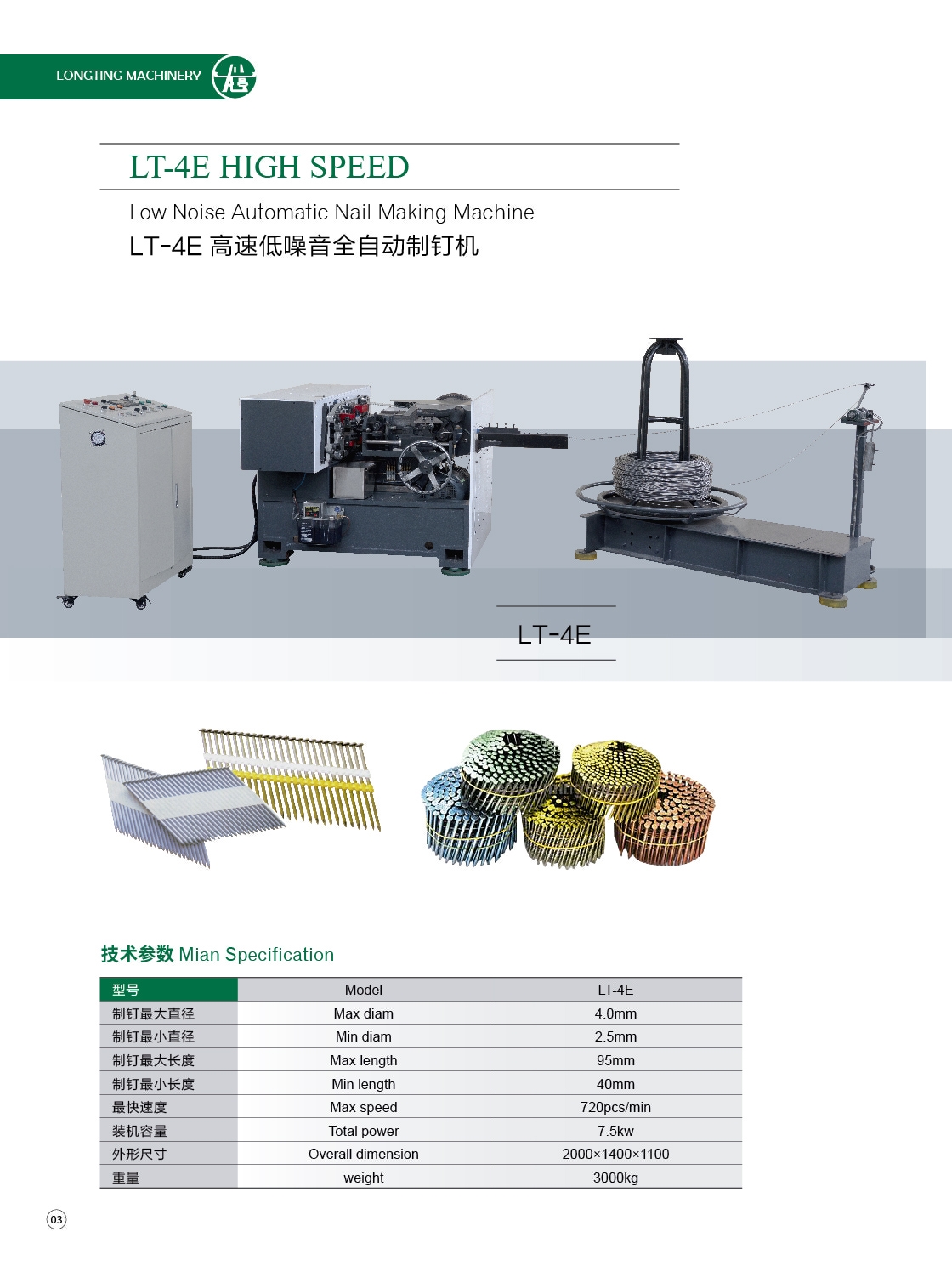

Technical Specifications
Overview
High-Efficiency Nail Production
This automatic nail making machine is engineered for high-speed, stable, and durable industrial performance. Designed for precision, it features an automated wire feeding system and synchronized cutting and forming units to ensure consistent quality. Its robust mechanical structure and compact footprint make it a reliable solution for diverse nail manufacturing requirements.
Technical Specifications
Production Speed
720 PCS/min
Output Rate
Nail Dimensions
| Parameter | Range |
|---|---|
| Nail Length | 40-95 mm |
| Nail Diameter | 2.5-4.0 mm |
Power Requirements
- Voltage: AC380V
- Total Power: 7.5 KW
- Rated Frequency: 50 HZ
Physical Attributes
- Dimensions
- 2000 x 1400 x 1100 mm
- Weight
- 3000 KG
Key Features
Operational Advantages
High SpeedStable QualityConvenient OperationDurable
