Automatic Motor Coil Winding Machine
This automatic motor coil winding machine features a 32-bit controller for enhanced speed and reliability. Its synchronous design and compact size make it suitable for assembly line integration.
Technical Specifications
Overview
High-Efficiency Coil Winding Solution

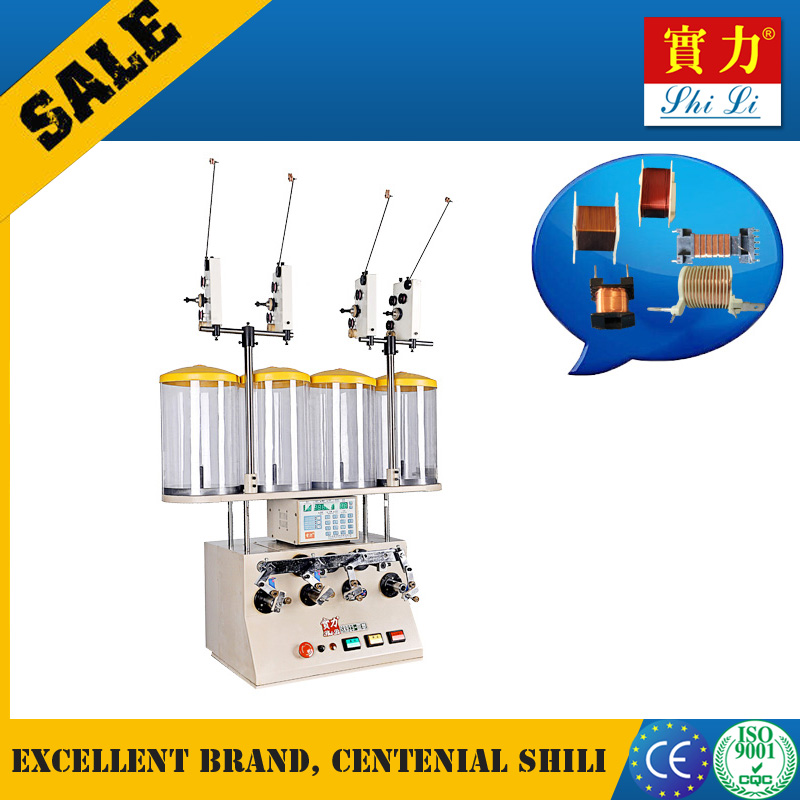

This automatic 4-spindle motor coil winding machine is engineered with a 32-bit controller chip for superior speed and reliability. Featuring a heavy-duty architecture and synchronous winding technology, it provides high-speed, low-noise performance for demanding assembly lines. The unit includes automated self-detection, programmable spindle speeds, and data retention capabilities to ensure consistent quality and production stability.
Key Performance Metrics
Operational Performance
7,000 turn/min
Max Speed
4 heads
Spindle Count
100 mm
Winding Width
105 kg
Net Weight
Technical Specifications
Winding Parameters
| Parameter | Value |
|---|---|
| Wire Size Range | 0.04-0.45 mm |
| Loop Diameter | 70 mm |
| Max Wire Spacing | 9.99 mm |
Electrical Requirements
- Input Power: 220V 50HZ/60HZ
- Spindle Motor: Phase motor + AC Drivers
- Winder Motor: Stepping motor
- Premium Components
- Japan NSK/NTN BearingsJapan BANDO BeltJapan GATES BeltTaiwan TBI Ball ScrewTaiwan Transducers
Compliance & Certifications
Quality Certifications
CEISO 9001CQC
