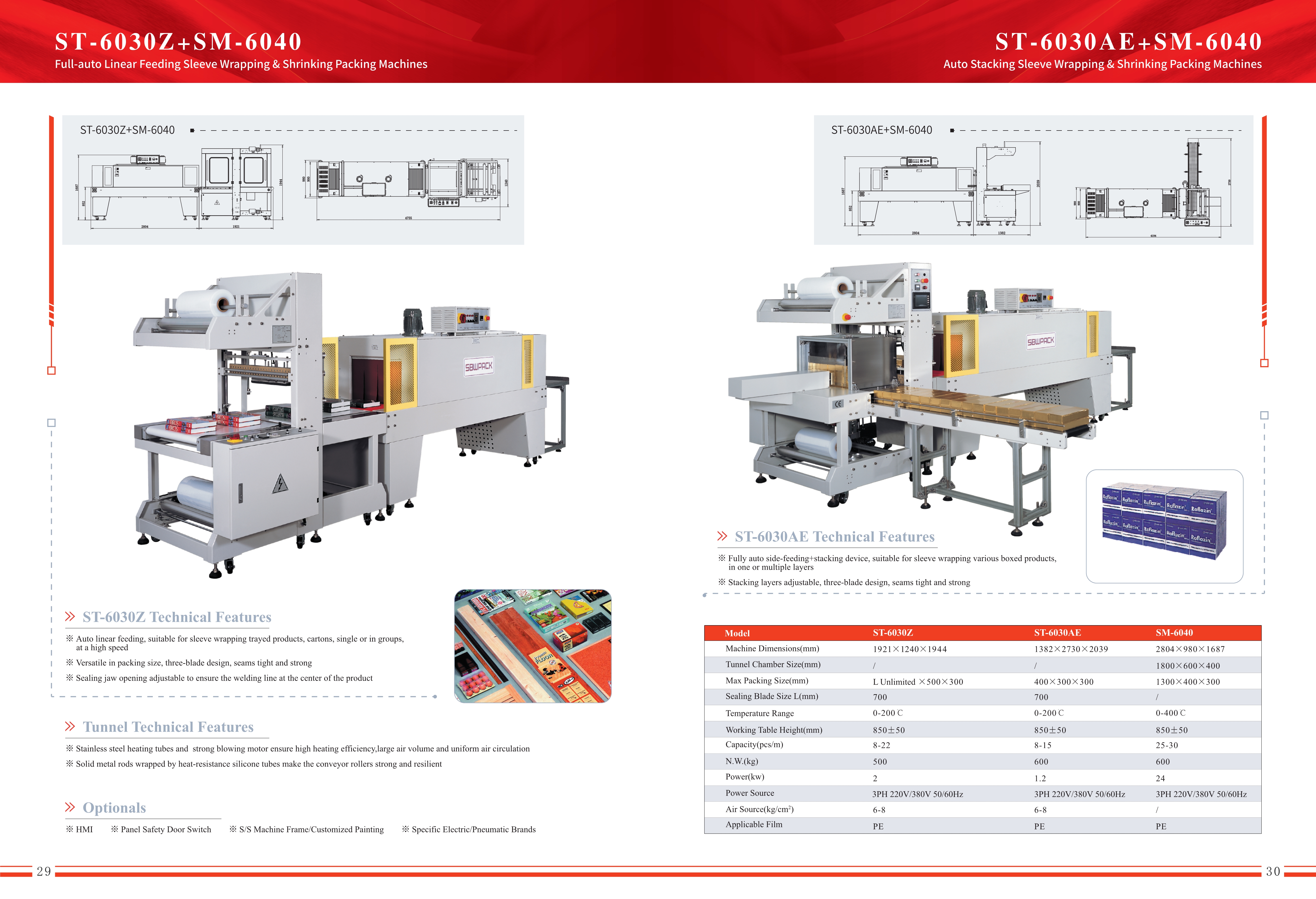

Automatic Linear Sleeve Wrapper and Shrink System
This automatic linear sleeve wrapper and shrink system integrates feeding, wrapping, and shrinking processes for efficient packaging. It features adjustable conveyor speeds, precise film tension control, and a temperature-controlled shrink tunnel for consistent sealing.
Technical Specifications
Overview
High-Efficiency Sleeve Wrapping & Shrinking
This automatic linear sleeve wrapper and shrink system provides a comprehensive solution for efficient packaging of trayed products, cartons, and individual items. Designed for high speed and versatility, the system features a three-blade design for strong, tight seams and an adjustable sealing jaw to ensure precise welding alignment. With integrated heating technology and robust construction, it offers consistent performance for various industrial packaging needs.
Performance Metrics
Key Performance Indicators
22 pcs/m
Max Capacity (ST-6030Z)
15 pcs/m
Max Capacity (ST-6030AE)
30 pcs/m
Max Capacity (SM-6040)
Technical Specifications
Model Comparison
| Feature | ST-6030Z | ST-6030AE | SM-6040 |
|---|---|---|---|
| Machine Dimensions (mm) | 1921×1240×1944 | 1382×2730×2039 | 2804×980×1687 |
| Max Packing Size (mm) | L Unlimited×500×300 | 400×300×300 | 1300×400×300 |
| Net Weight (kg) | 500 | 600 | 600 |
| Power (kW) | 2 | 1.2 | 24 |
Common Technical Parameters
- Power Source: 3PH 220V/380V 50/60Hz
- Working Table Height: 850±50mm
- Applicable Film: PE
- Air Source: 6-8 kg/cm² (ST-6030Z/AE)
Key Features
Optional Configurations
HMI InterfacePanel Safety Door SwitchStainless Steel FrameCustomized PaintingSpecific Electric/Pneumatic Brands
- System Highlights
- Auto Linear FeedingThree-Blade DesignAdjustable Sealing JawStainless Steel Heating TubesUniform Air CirculationHeat-Resistant Silicone Conveyor Rollers
