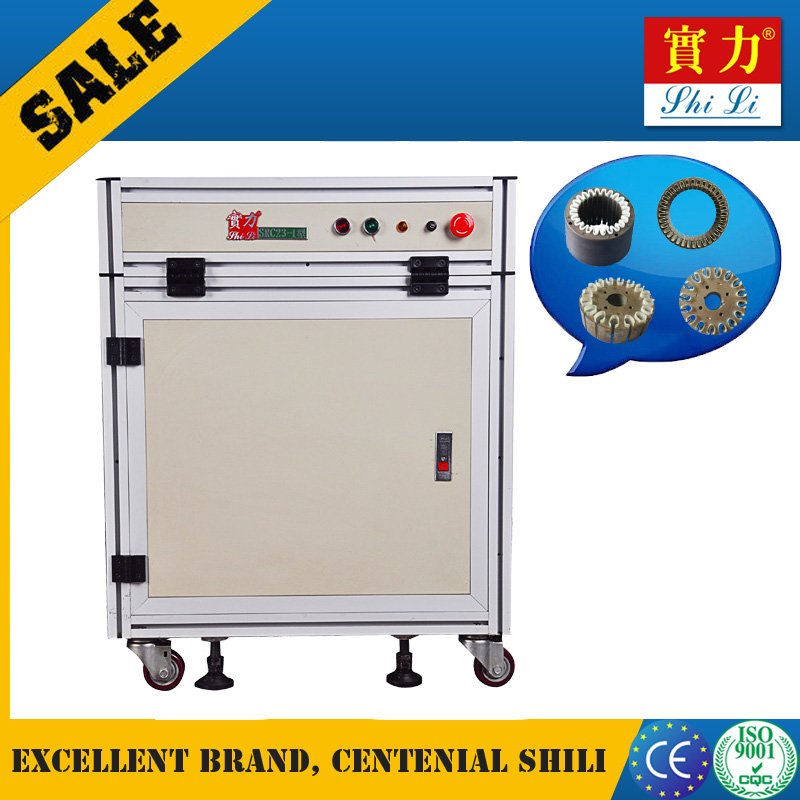

Automatic Insulation Paper Insertion Machine
This machine utilizes mechanical transmission and an electrical control system for stable and reliable performance. It is designed for the automatic insertion of insulation paper in electrical components, enhancing manufacturing efficiency.
Technical Specifications
Product Overview
Precision Insulation Paper Insertion
This automatic insulation paper insertion machine is engineered for high-precision manufacturing of brushless motor stators. It utilizes a robust mechanical transmission and electrical control system to ensure stable, reliable performance during high-speed production. The system is designed to streamline manufacturing workflows, providing consistent and accurate insulation placement for a wide range of motor components.
Technical Specifications
Performance Metrics
70 num/min
Insertion Speed
200 mm
Max Stator Outer Diameter
40 mm
Min Stator Inner Diameter
Stator Compatibility
| Parameter | Value |
|---|---|
| Stator Thickness | 8-35 mm |
| Stator Slots Number | 10-36 slots |
Physical Dimensions
Physical Dimensions and Weight
- Machine Size: 720 x 710 x 920 mm
- Package Size: 910 x 710 x 1010 mm
- Net Weight: 220 kg
- Gross Weight: 250 kg
Power Requirements
- Power Input
- 220V 50Hz
Certifications
- Compliance and Standards
- CEISOCQC
