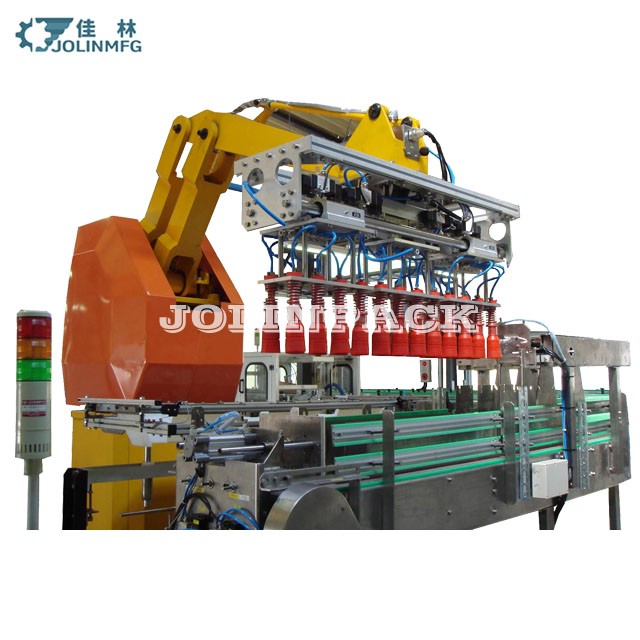

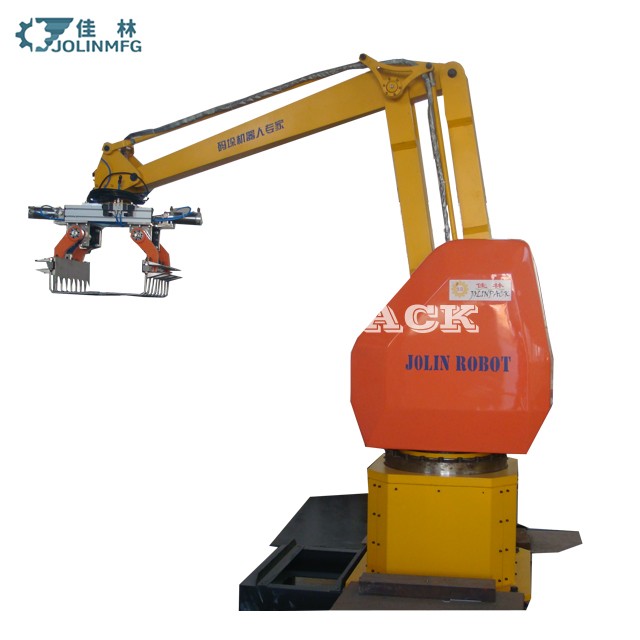

Automated Robotic Palletizer
This automatic palletizer consists of a group organizing and bag/carton pushing machine, a palletizing machine, a pallet storing machine, an empty pallet conveyor, and a ready pallet conveyor. The control system consists of a PLC, touch screen, and pneumatic system.
Technical Specifications
System Overview
Automated Robotic Palletizer
This high-performance automated palletizing system is designed for seamless integration into modern production environments. It features a complete assembly including group organizing, carton/bag pushing mechanisms, empty pallet storage, and dedicated conveyor systems for both empty and ready pallets. Controlled by an advanced PLC and touch screen interface, it offers high-speed, reliable material handling with pneumatic precision.
Core Components
- Group organizing unit
- Bag/carton pusher
- Robotic palletizing unit
- Pallet storage module
- Empty pallet conveyor
- Ready pallet conveyor
- PLC control system
- Touch screen interface
- Pneumatic system
Performance Metrics
Capacity
30 units/min
Maximum Throughput
Technical Specifications
- Power Consumption
- 10 KW
- Electrical Input
- 380V AC 50Hz
- Operating Air Pressure
- 0.5 - 0.6 MPa
- Air Consumption
- 45 NM3/Hour
- Operational Noise
- 75 dB
Physical Dimensions
- Standard Pallet Dimensions
- 1400mm x 1200mm x 160mm
