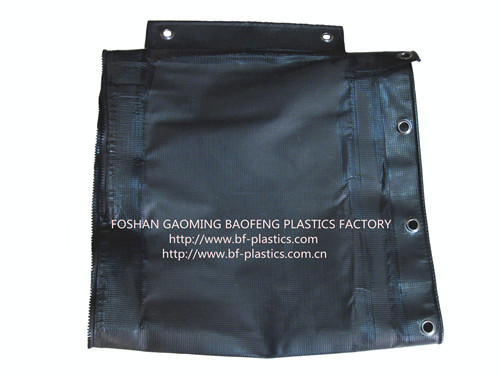

Antistatic Ventilation Duct with Zipper Ends
This antistatic ventilation duct supplies fresh air in environments with flammable gases, ensuring worker safety. Its positive pressure design and zipper ends facilitate easy installation and secure connections.
Technical Specifications
Product Overview
Industrial Ventilation Safety
This PVC positive pressure antistatic tunnel duct is engineered for safe air supply in environments where flammable or explosive gases may be present. It features a specialized conductive fabric that prevents static buildup while offering superior fire retardancy and physical durability. The design focuses on operational efficiency, featuring high-strength zipper connections for rapid installation and airtight performance to ensure worker safety.
Technical Specifications
Standard Lengths
- 5m
- 10m
- 15m
- Surface Resistance
- 2×10^5 Ohm
- Material Features
- AntistaticExplosion-proofFire-retardantCorrosion-resistantWear-proof
- Available Diameters
- 100mm to 1600mm
Operational Features
- Connection Type
- Zipper with internal sealing joint
- Hanging Method
- Yes
- Storage and Portability
- Lay flat design for easy transportation and compact storage
Industrial Applications
Recommended Use Cases
Coal MiningTunnelingSubway Construction
