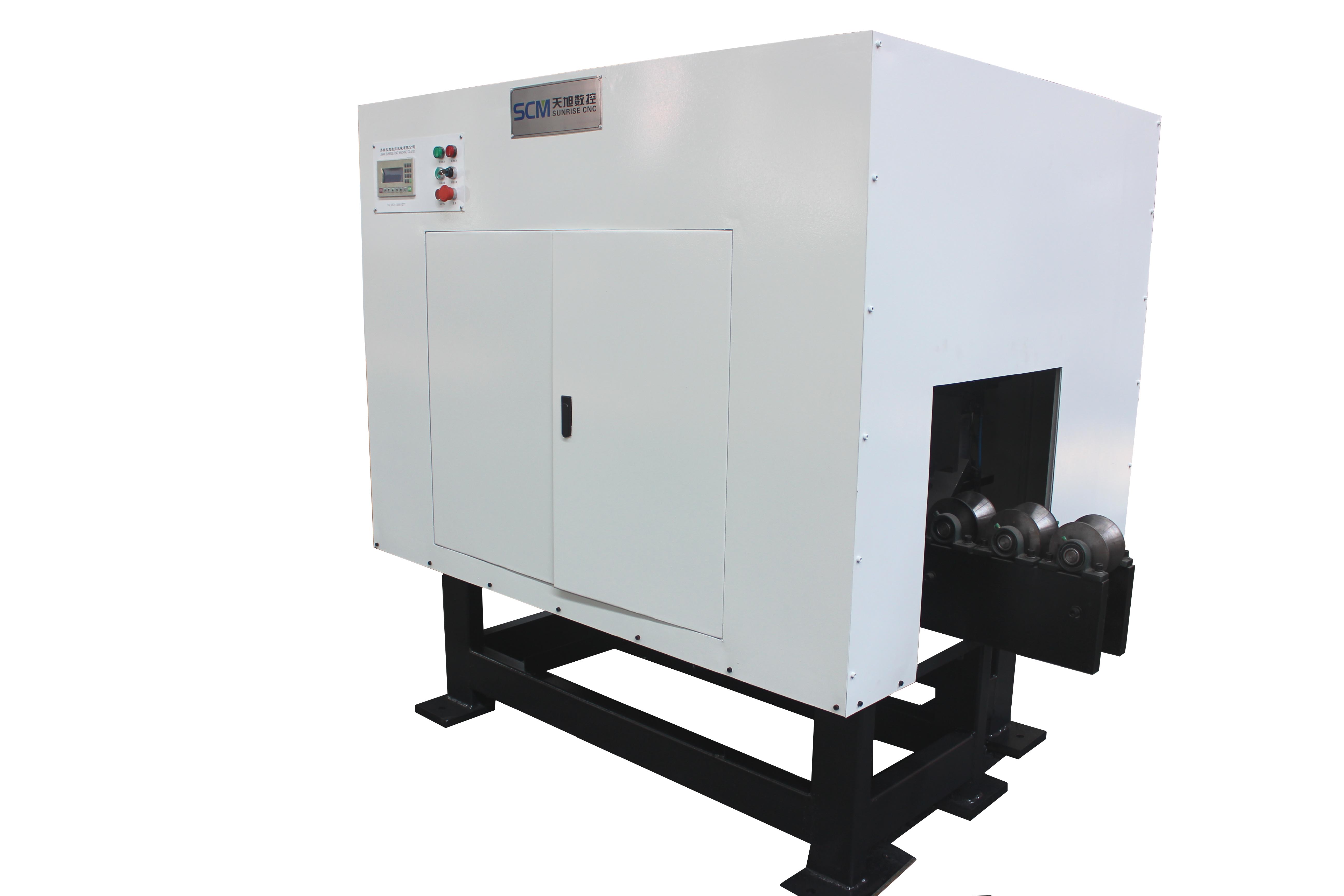

Angle Back Milling Machine
This angle back milling machine is designed for precision metal cutting and grinding applications. Its robust construction ensures stability and accuracy, making it suitable for industrial use.
Technical Specifications
Product Overview
Angle Back Milling Machine Series
The TQC series Angle Back Milling Machines are high-performance tools engineered for precision metal processing in industrial environments. Featuring a robust, stable frame and a user-friendly control interface, these machines deliver reliable metal removal and accurate angle milling. With multiple model configurations available, they provide scalable solutions for varied material sizing and processing requirements.
Performance Metrics
Core Operational Specs
500 mm/min
Max Feeding Speed
18.5 kW
Max Power
60 KN
Cylinder Pressure
Technical Specifications
Technical Comparison Table
| Feature | TQC200 | TQC250 | TQC360 |
|---|---|---|---|
| Angle Processing Size (mm) | L63*6～L200*20 | L63*6～L250*32 | L63*6～L360*30 |
| Total Power (kW) | 7.5 | 9.5 | 18.5 |
| Weight (T) | ~2.5 | ~3.5 | ~4.5 |
Machine Configuration
Capacity & Dimensions
- Oil tank capacity: 130 L
- Processing length: 380 mm to infinity
- Feeding motor quantity: 2
Certification & Build
- Construction Details
- Robust Steel FrameDigital Control InterfaceIndustrial GradeHigh-Precision Surface
