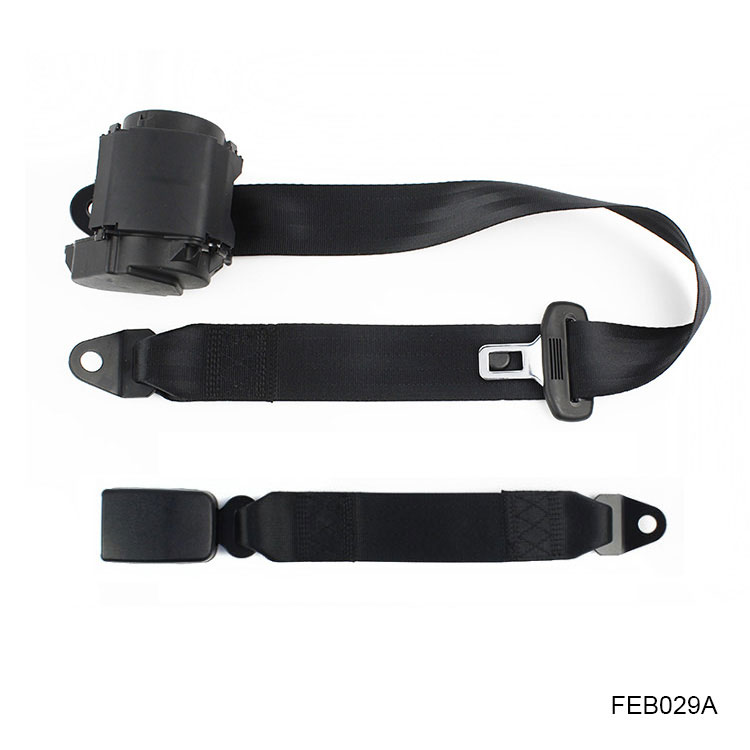

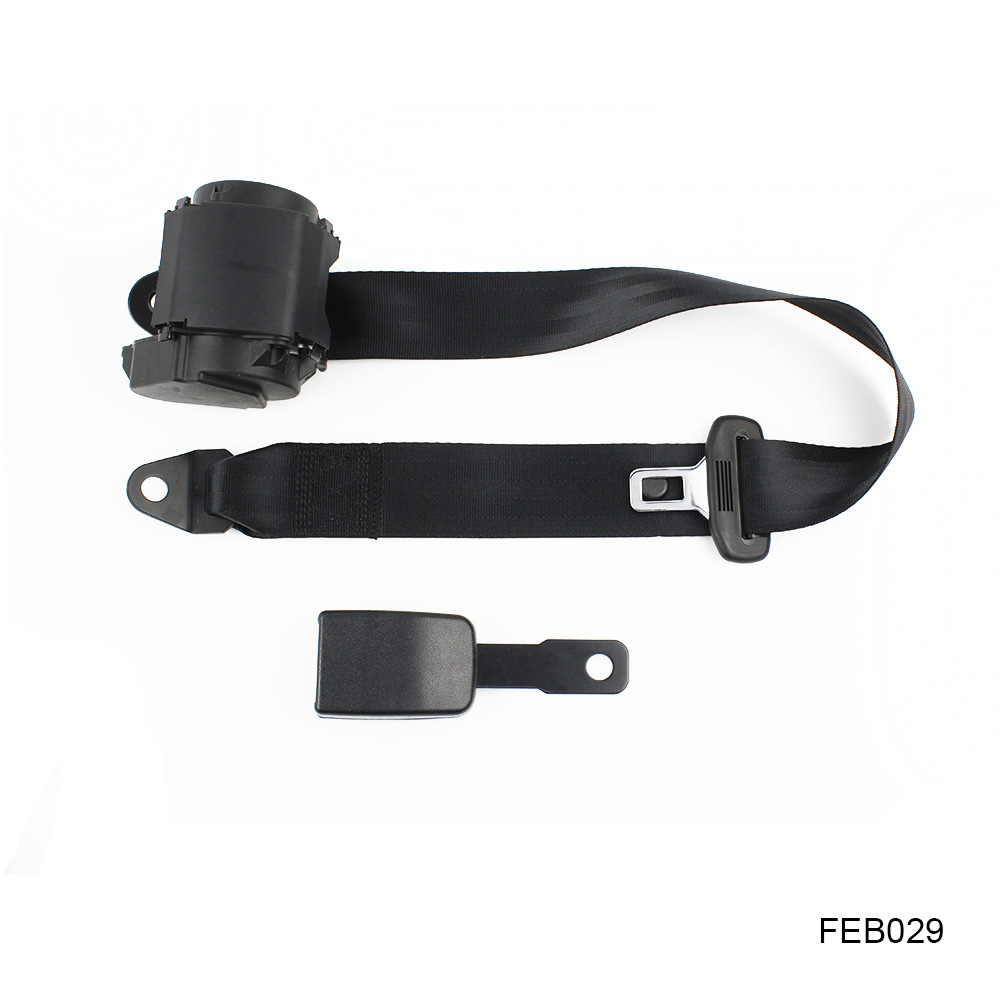

Angle Adjustable 3-Point Retractor Car Seat Belt
This angle-adjustable 3-point retractor car seat belt provides secure restraint. It features durable webbing and a sturdy buckle for automotive safety.
Technical Specifications
Overview
Universal 3-Point Retractable Safety Solution
This angle-adjustable 3-point ELR seatbelt is designed for universal fitment across cars, trucks, buses, and engineering vehicles. Featuring heavy-duty polyester webbing and a smooth Emergency Locking Retractor (ELR) mechanism, it provides reliable security for both driver and passenger positions. The adjustable retractor angle makes it particularly versatile for various seat configurations, including specialized rear-seat applications.
Key Metrics
Primary Specifications
2,860 mm
Total Length
47 mm
Webbing Width
50 pcs
Minimum Order
Technical Specifications
- Item Number
- FEB029
- Webbing Material
- Polyester / Heavy-duty Nylon
- Retractor Type
- 3-Point ELR (Emergency Locking Retractor)
- Angle Adjustment Range
- 90°-75° to 90°-135°
Dimensions
- Webbing Thickness
- 1.1 mm
- Retractor Size (L x W x H)
- 95mm x 78mm x 83mm
- Mounting Hole Diameter
- 12 mm
Compliance & Safety
- Quality Certifications
- ISO9001: 2015DOTCCCECER16FMVSS 302
Application
Compatible Vehicles
- Passenger Cars
- Buses
- Trucks
- Engineering Vehicles
- Vans

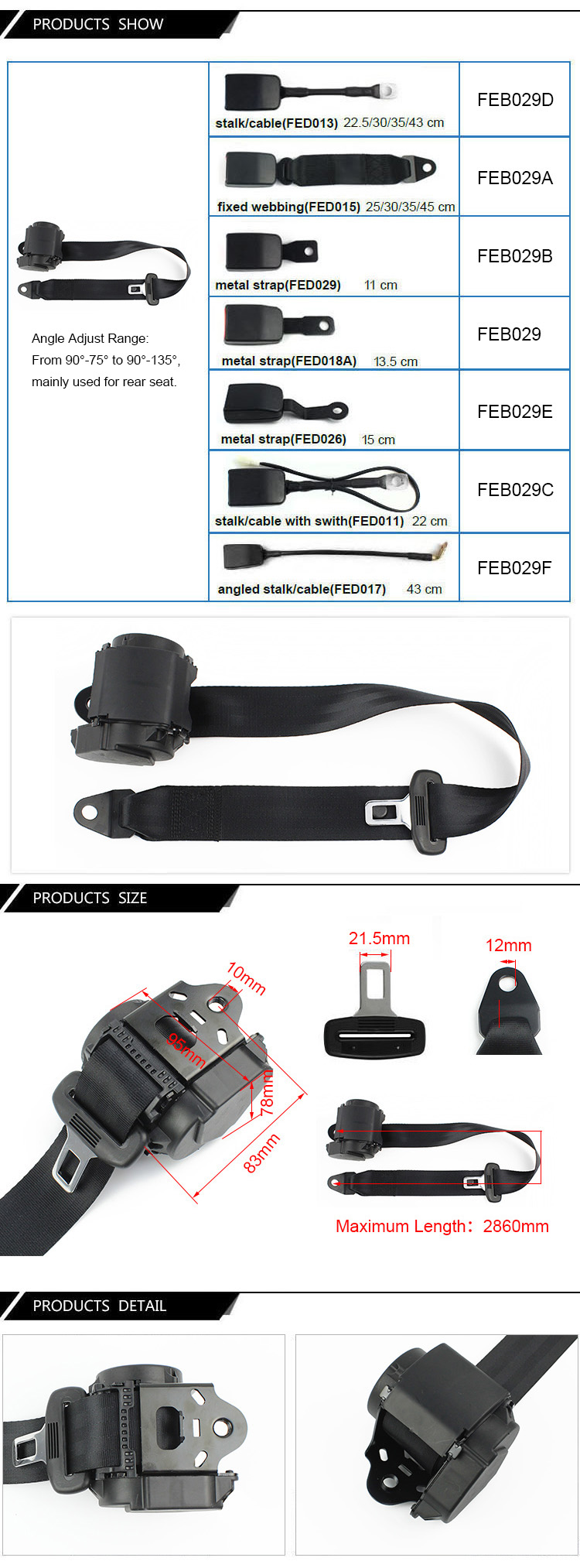

Configuration Options
Available Stalk & Strap Options
| Model Ref | Type | Length/Size |
|---|---|---|
| FED013 | Stalk/Cable | 22.5 / 30 / 35 / 43 cm |
| FED015 | Fixed Webbing | 25 / 30 / 35 / 45 cm |
| FED029 | Metal Strap | 11 cm |
| FED018A | Metal Strap | 13.5 cm |
| FED011 | Stalk/Cable with Switch | 22 cm |
| FED017 | Angled Stalk/Cable | 43 cm |
Logistics
Nearest Ports
NingboShanghai
- Lead Time
- 20 Days against order confirmation
