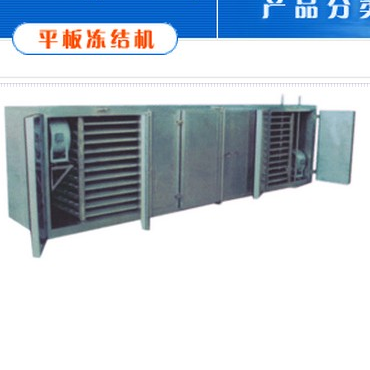

Aluminum Alloy Contact Plate Freezer
This aluminum alloy contact freezer utilizes evaporative plates and insulated panels for efficient operation. It directly contacts frozen foods using a hoist cylinder, ensuring high freezing speed and energy savings.
Technical Specifications
Overview
High-Efficiency Aluminum Alloy Contact Freezer
The Aluminum Alloy Contact Freezer is a professional-grade industrial solution designed for rapid, uniform freezing of food products. By utilizing direct contact heat conduction, this unit maximizes freezing efficiency while minimizing moisture loss, ensuring superior product quality and texture. Its compact, energy-saving design makes it an ideal choice for cold storage facilities, meat processing plants, and fishery operations.
Key Features
- Suitable Applications
- Cold StorageAquatic FoodsMeat ProcessingFish Catching BoatsFishery Processing
Technical Details
Mechanical Clearances
78 mm
Pressing Close Clearance
118 mm
Pull Open Clearance
System Components
- Evaporative Plate
- Insulation Panel
- Hydraulic Station
- Hoist Cylinder
- Control Box
- Freezing Performance
- Fish (Tray Size: 600*400*80mm, 15kg/tray): 4 hours per shift
Model Specifications
Model Specifications Table
| Model | Layers | Evap Area (m²) | Fish Cap. (kg/shift) | Weight (kg) |
|---|---|---|---|---|
| PD0.72-K1 | 8 | 31 | 720 | 2,180 |
| PD0.72-K2 | 8 | 31 | 720 | 2,240 |
| PD0.96-K1 | 8 | 42 | 960 | 2,600 |
