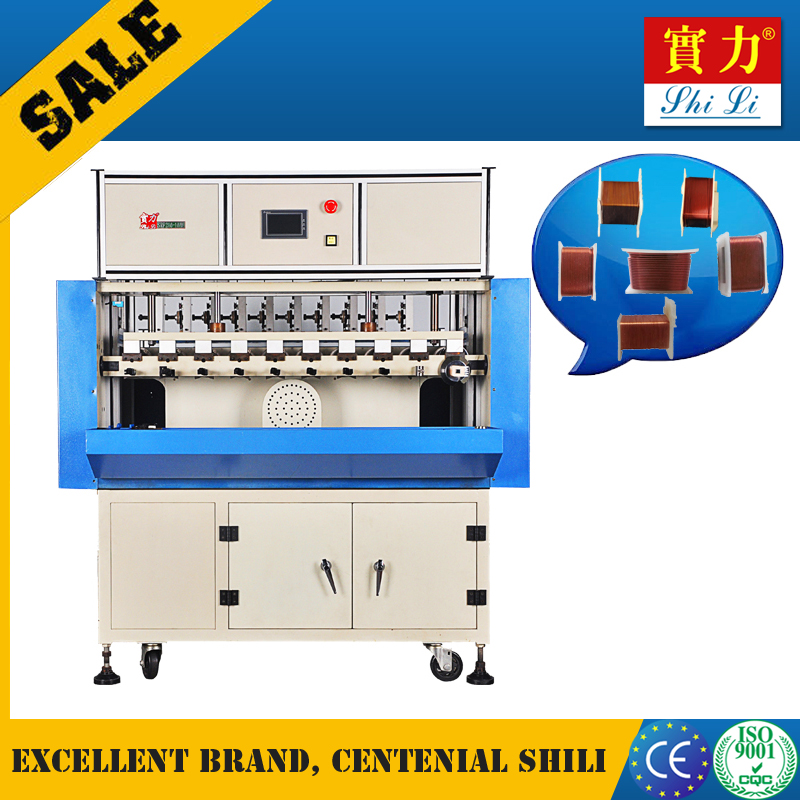

Alternating Coil Winding Machine
This alternating winding machine is designed for precise and efficient coil winding. It features a programmable control system for customized winding patterns and parameters.
Technical Specifications
Product Overview
High-Efficiency Alternating Coil Winding Machine
This advanced alternating coil winding machine is engineered for high-speed, precision winding of small transformers, relays, and motor coils. Featuring a robust cast iron construction and high-quality international components like NSK bearings and TBI ball screws, it ensures reliable long-term performance. The system supports simultaneous winding of up to 10 products and includes automated features like wire disconnection detection and auto-flip for bobbin changing to maximize productivity.
Technical Performance
Key Performance Metrics
10 heads
Spindle Count
4,500 turn/min
Max Winding Speed
1.5 KW
Spindle Motor Power
Wire Winding Specifications
| Parameter | Value |
|---|---|
| Wire Size Range A | 0.1-0.55 mm |
| Wire Size Range B | 0.1-0.6 mm |
| Max Wire Spacing | 9.99 mm |
| Loop Diameter | 75 mm |
Operational Capabilities
Core Features
- Simultaneous 10-product winding capability
- Auto-flip function for continuous operation
- Disconnection detection system
- Front and rear machine limit protection
- Magnetic tensioning for improved winding quality
- Quality Standards
- CEISO 9001CQC
Physical Dimensions
Physical Dimensions
1,480 mm
Length
900 mm
Width
1,580 mm
Height
219 kg
Net Weight
