Adjustable Thermal Magnetic Molded Case Circuit Breaker
This molded case circuit breaker provides adjustable thermal and magnetic protection. It is designed to offer overload and short-circuit protection in electrical distribution applications.
Technical Specifications
Overview

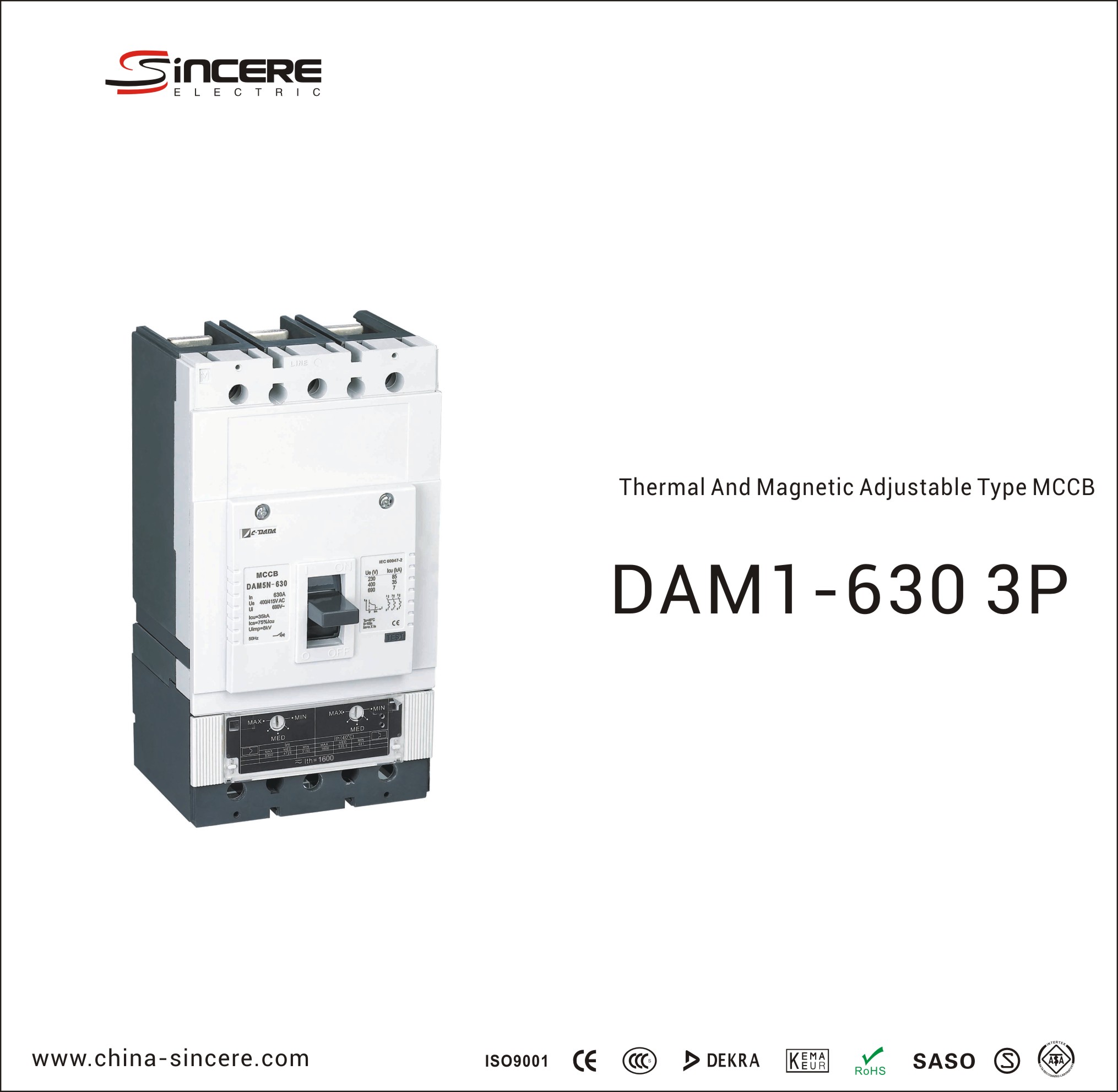

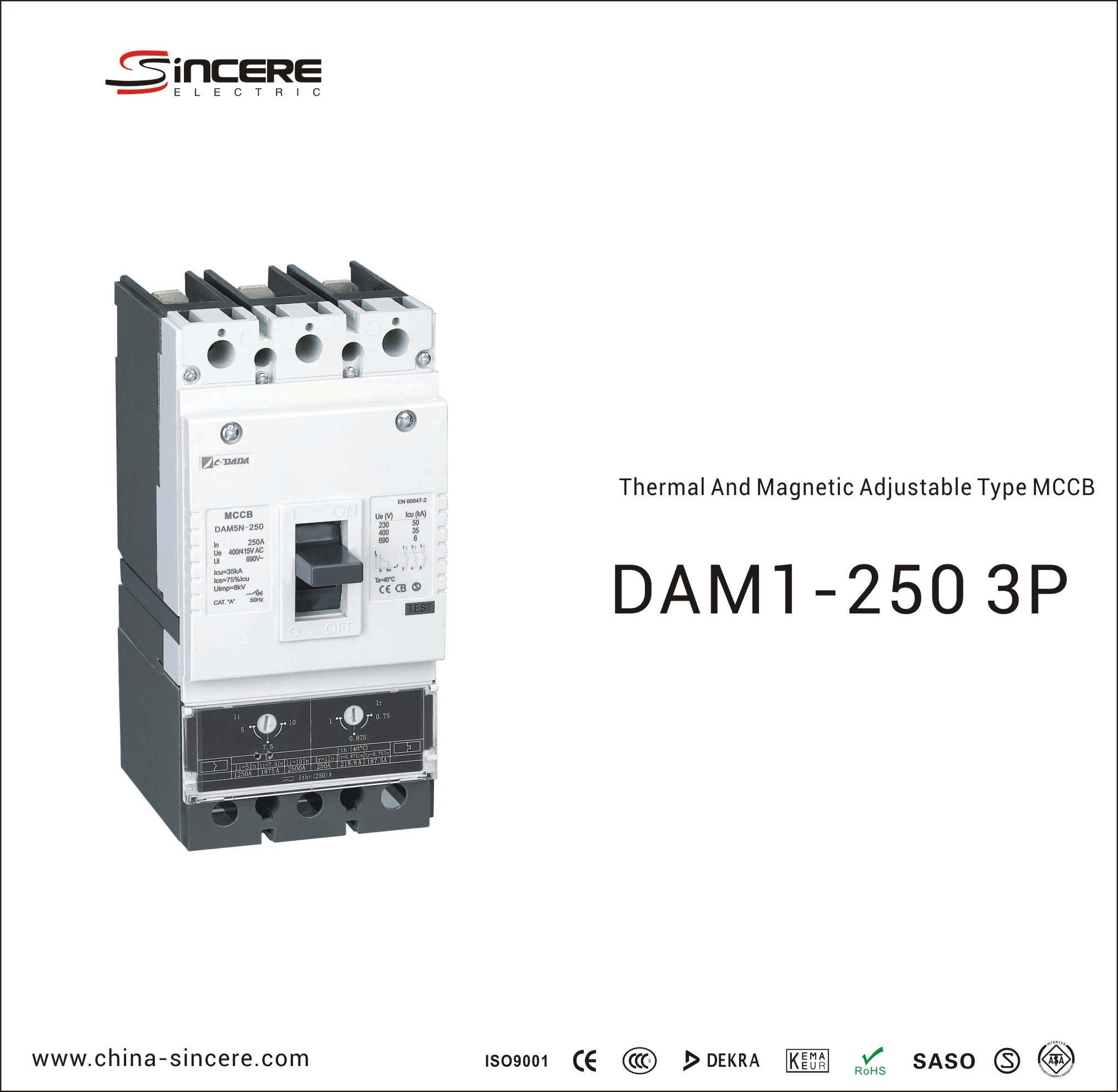

Thermal and Magnetic Adjustable MCCB
The DAM1 series Molded Case Circuit Breaker (MCCB) is engineered for high-performance overload and short-circuit protection in electrical distribution systems. Featuring adjustable thermal and magnetic trip settings, it offers the flexibility required for a wide range of industrial and commercial applications. These units are built to meet rigorous global standards, ensuring reliability and safety in demanding electrical environments.
Performance
Electrical Ratings
160 A
Min Rated Current
1,600 A
Max Rated Current
415 V
Rated Voltage
8 kV
Impulse Withstand Voltage
Performance Parameters
| Model | Icu (kA) | Ics (kA) | Poles |
|---|---|---|---|
| DAM1-250 | 35 | 26.25 | 3P/4P |
| DAM1-630 | 35 | 26.25 | 3P/4P |
- Certifications
- ASTAKEMASEMKOCECBROHS
Features
Key Advantages
- Adjustable thermal setting (70-100% In)
- Adjustable magnetic setting (5-10 times In)
- Push to trip button provision
- Separate main and arcing contacts
- Compact physical dimensions
- Wide range of available accessories
