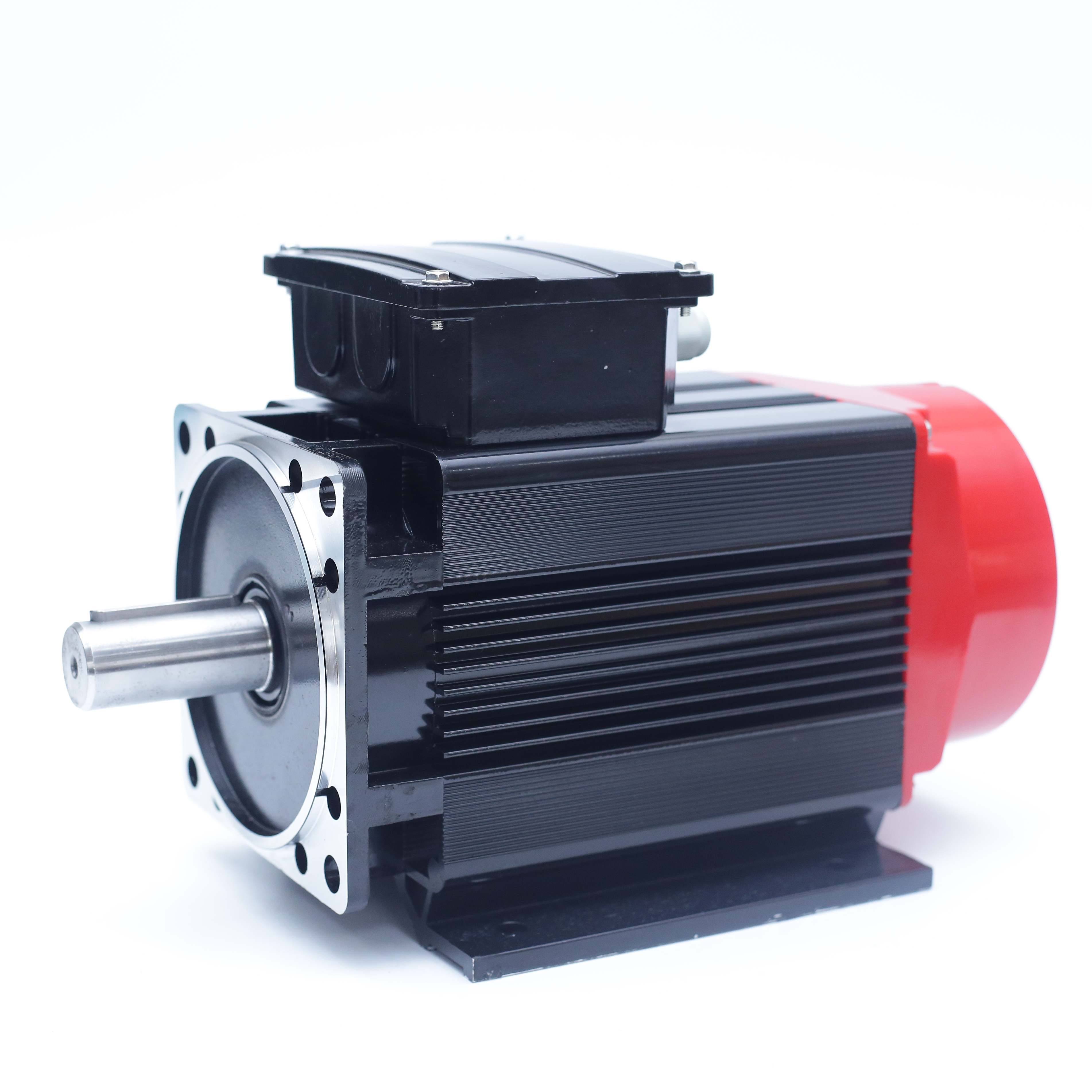

Adjustable Rotation Synchronous Motor with Rare-Earth Magnets
This synchronous motor features rare-earth permanent magnets for energy savings. The rotation direction is adjustable, providing versatility for different industrial applications.
Technical Specifications
Product Overview
High-Efficiency Synchronous Solution
The XNTZ series permanent-magnet synchronous motor utilizes advanced rare-earth NdFeB magnets to deliver exceptional efficiency, energy savings up to 35%, and high power density. Designed for industrial reliability, it features a modular structure that allows for easy replacement of standard asynchronous motors while providing superior dynamic response and stable control. This motor is an ideal, high-performance solution for demanding applications such as industrial fans, pumps, and air compressors.
Key Features
- Performance Advantages
- Energy Efficient (IE4 Standard)High Power FactorRare-Earth NdFeB MaterialModular DesignVariable Speed ControlCompact Volume
Technical Specifications
Operating Characteristics
96 %
Maximum Efficiency
0.98 cosΦ
Power Factor
200 HZ
Frequency
3,000 r/min
Operating Speed
Model Specifications
| Model | Power (kW) | Voltage (V) | Current (A) |
|---|---|---|---|
| XNTZ-120-90S | 1.5 | 380 | 3 |
| XNTZ-120-90L | 4 | 380 | 7.5 |
| XNTZ-180-112S | 5.5 | 380 | 10 |
| XNTZ-180-112L | 15 | 380 | 27 |
| XNTZ-210-132S | 11 | 380 | 19 |
| XNTZ-210-132L | 22 | 380 | 38.5 |
Application Suitability
Industrial Applications
- Industrial Fans
- Pumps
- Pavement Construction Machines
- Air Compressors
