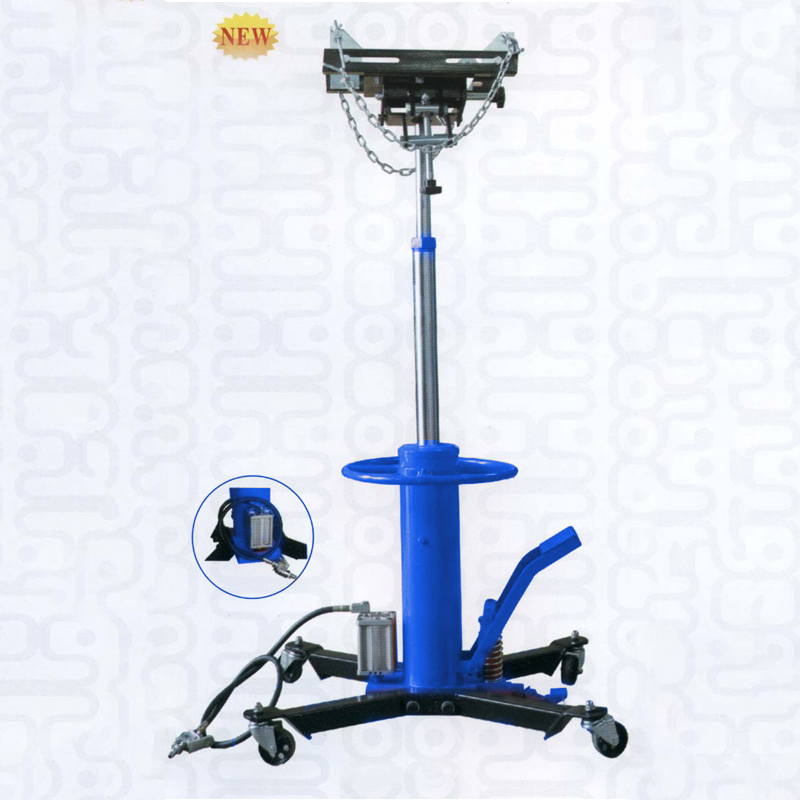

Adjustable Head Transmission Jack
This professional lifting transmission jack features an adjustable head that can be tilted for alignment. It is equipped with steel wheels, swivel casters, and a load-restraining chain for safety.
Technical Specifications
Product Overview
Professional Transmission Lifting Solution
This professional-grade transmission jack is engineered for optimum alignment of transmission bolt patterns and pins, featuring a versatile head that tilts forward, backward, and side-to-side. Designed with rugged steel wheels and full swivel ball-bearing casters, it allows for easy movement and precise positioning within the workshop. Safety is prioritized through integrated multi-adjustment knobs and a secure load-restraining chain for reliable lifting and lowering operations.
Key Features
- Safety and Mobility
- Tilting HeadLoad-restraining ChainSwivel CastersSteel Wheels
Performance Metrics
Capacity Range
0.5 ton
Minimum Capacity
1.5 ton
Maximum Capacity
Technical Specifications
Model Specifications
| Model | Capacity (ton) | Min Height (mm) | Max Height (mm) |
|---|---|---|---|
| GT0901 | 1 | 230 | 760 |
| GT0902 | 0.5 | 170 | 680 |
| GT0903 | 1.5 | 230 | 880 |
| GT0801 | 0.5 | 830 | 1,800 |
| GT0801A | 1 | 830 | 1,800 |
| GT0802 | 0.5 | 855 | 1,760 |
| GT0803 | 0.5 | 1,130 | 1,940 |
| GT0804 | 0.5 | 1,300 | 1,800 |
