Adapter Sleeve
Adapter sleeves are used to secure bearings with tapered bores to cylindrical shafts. They simplify bearing mounting, dismounting, and adjustments.
Technical Specifications
Overview
High-Performance Adapter Sleeves
These adapter sleeves are essential mechanical components designed to secure bearings with tapered bores onto cylindrical shafts efficiently. They facilitate a seamless mounting and dismounting process, allowing for precise adjustments and simplified maintenance in industrial applications. Constructed from high-strength steel, these sleeves are engineered to withstand heavy loads and significant vibrations, ensuring long-term reliability.
Technical Specifications
- Taper Ratio
- 1:12
- Material
- High-strength steel
- Key Features
- Easy MountingVibration ResistantHeavy Load CapacityAdjustable

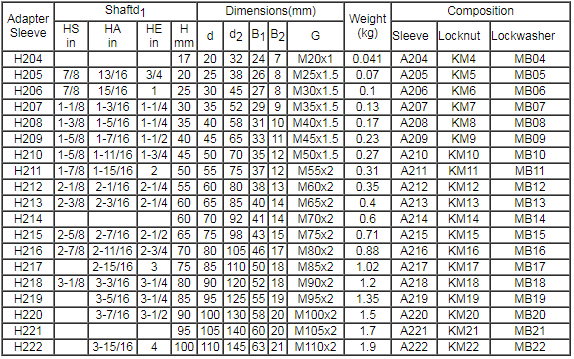

Series H200 Dimensions
H200 Series Specifications
| Model | Shaft (mm) | d2 (mm) | B1 (mm) | Thread (G) | Weight (kg) |
|---|---|---|---|---|---|
| H204 | 17 | 32 | 24 | M20x1 | 0.041 |
| H205 | 20 | 38 | 26 | M25x1.5 | 0.07 |
| H208 | 35 | 58 | 31 | M40x1.5 | 0.17 |
| H210 | 45 | 70 | 35 | M50x1.5 | 0.27 |
| H215 | 65 | 98 | 43 | M75x2 | 0.71 |
| H220 | 90 | 130 | 58 | M100x2 | 1.5 |
| H222 | 100 | 145 | 63 | M110x2 | 1.9 |

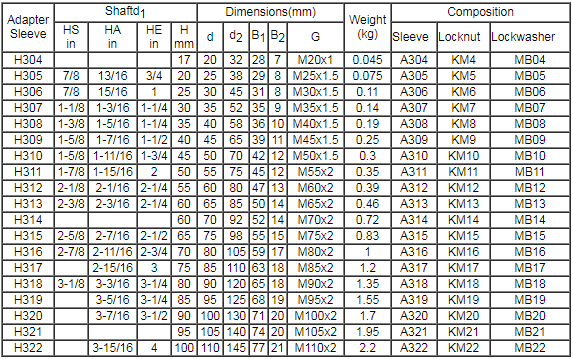

Series H300 Dimensions
H300 Series Specifications
| Model | Shaft (mm) | d2 (mm) | B1 (mm) | Thread (G) | Weight (kg) |
|---|---|---|---|---|---|
| H304 | 17 | 32 | 28 | M20x1 | 0.045 |
| H305 | 20 | 38 | 29 | M25x1.5 | 0.075 |
| H308 | 35 | 58 | 36 | M40x1.5 | 0.19 |
| H310 | 45 | 70 | 42 | M50x1.5 | 0.3 |
| H315 | 65 | 98 | 55 | M75x2 | 0.83 |
| H320 | 90 | 130 | 71 | M100x2 | 1.7 |
| H322 | 100 | 145 | 77 | M110x2 | 2.2 |
Components
Standard Assembly Components
- Adapter Sleeve
- Locknut (KM Series)
- Lockwasher (MB Series)
