AD22-30AS Blue LED Panel Indicator Light

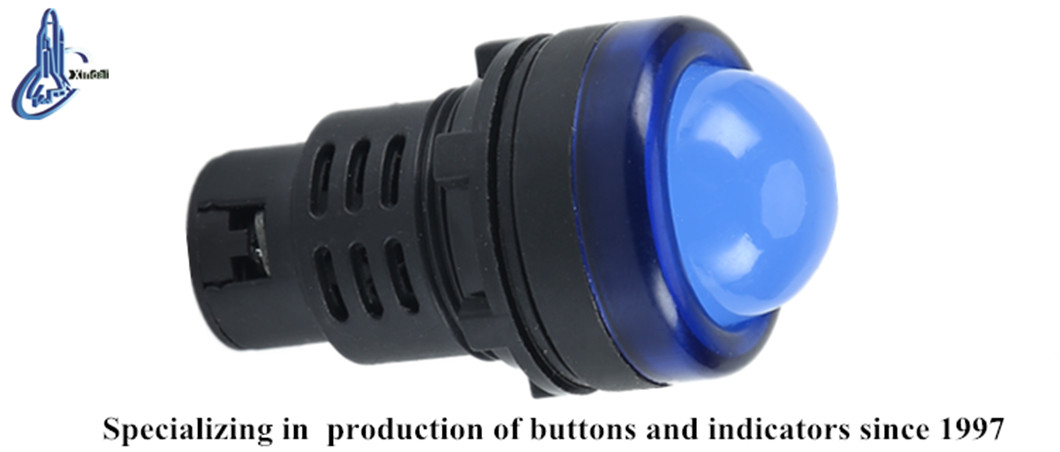

The AD22-30AS is a plastic LED indicator light with a large blue LED lamp. It is designed for panel mounting to provide a clear and bright indication signal.
Technical Specifications
Product Overview
High-Visibility LED Panel Indicator
The AD22-30AS is a high-performance blue LED indicator light designed for clear visual signaling in industrial control panels. Utilizing advanced LED chip technology, it offers significantly longer life and lower power consumption compared to traditional incandescent or neon lamps. Its durable polycarbonate lens and anti-surge performance make it a reliable choice for demanding environments such as power plants, telecommunications, and machine tool manufacturing.
Key Metrics
Key Performance Metrics
2.5 kV
Dielectric Strength
2 MΩ
Insulation Resistance
Technical Specifications
- Working Frequency Voltage
- 2.5kV (AC valid value), 1min
- Voltage Wave Allowed
- ±20%
- Performance Features
- High BrightnessGood ReliabilityAnti-SurgeLow ConsumptionLong Life
Dimensions & Installation
Physical Dimensions
| Dimension Type | Measurement |
|---|---|
| Head Diameter | 36.2mm |
| Installation Diameter (Neck) | M28 / Φ20.3mm |
| Top Section Height | 22.2mm |
| Total Height | 40mm |
| Max Flange Thickness | 6mm |
Electrical Configuration
Available Voltage Ratings
- 24V AC/DC
- 36V AC/DC
- 48V AC/DC
- 110V AC/DC
- 220V AC
- 380V AC
Application Areas
Suitable Industries
- Electrical Power Systems
- Telecommunications
- Machine Tools
- Watercraft & Marine Equipment
- Textile & Printing Machinery
- Mining Machinery
Material & Design
Construction Details
| Component | Material/Feature |
|---|---|
| Lampshade | Polycarbonate (High Intensity) |
| Connector Type | Bolt-type (Safe & Convenient) |
| Light Source | LED Shining Chip |
| Base Type | Short Base (S-type) |
