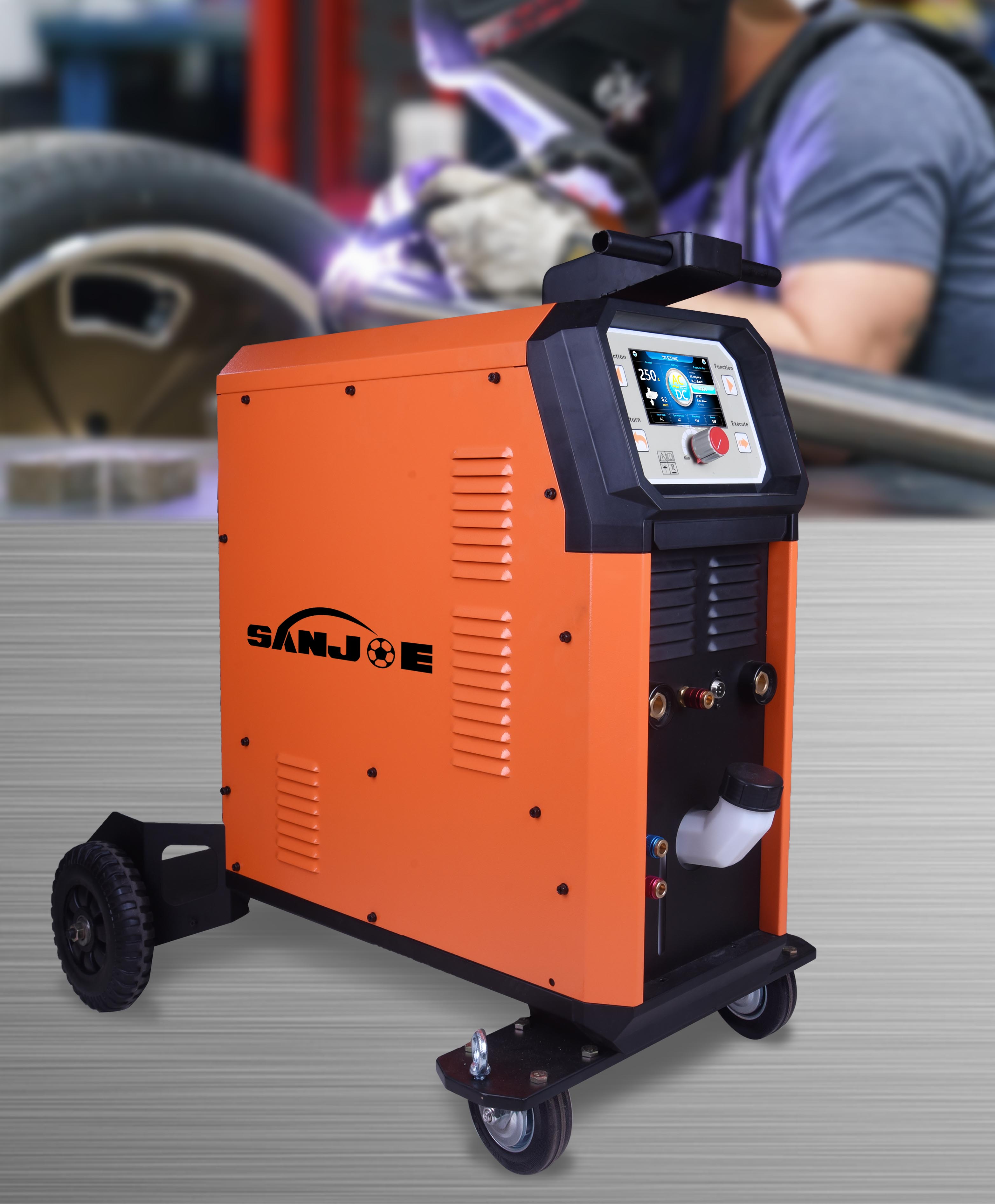

AC/DC TIG Welding Machine with LCD Interface
This AC/DC TIG welding machine features a user-friendly LCD screen interface for precise control. It supports both AC and DC welding modes, making it suitable for a wide range of materials and applications.
Technical Specifications
Overview
Advanced AC/DC TIG Welding Solution
This professional-grade TIG welding machine features a high-resolution 5-inch color LCD interface for precise control and monitoring of all welding parameters. Utilizing advanced IGBT inverter technology, it offers versatile AC and DC welding modes suitable for a wide range of materials. With 18 job memory slots and support for 9 languages, this unit is designed to streamline workflows for experienced metal fabricators.
Performance Metrics
Welding Performance
320 A
Max TIG Current
250 A
Max MMA Current
200 Hz
Max Pulse Frequency
Duty Cycle Efficiency
| Duty Cycle | Current (A) |
|---|---|
| 30% | 320 |
| 60% | 226 |
| 100% | 175 |
Technical Specifications
Power & Electrical
- Input Voltage: 3~400V 50Hz
- TIG Power Consumption: 9.2 KVA
- MMA Power Consumption: 9.5 KVA
- Load Voltage: 71V
- Insulation Class: F
Physical Dimensions
- Dimensions: 550 x 320 x 480 mm
- Net Weight: 15 kg
- Protection Rating: IP21S
Welding Features
Advanced Control Features
- 5-inch Color LCD Interface
- 18 Job Memory Slots
- 6 Waveform Options (AC Mode)
- Adjustable AC Frequency (40-100 Hz)
- Adjustable AC Balance (10-90%)
- Full Welding Cycle Control (Pre-Flow, Start, Up-Slope, Peak, Base, Down-Slope, Crater, Post-Flow)
- Water Cooling System Ready
- Supported Modes
- TIG ACTIG DCMMAPulse Welding
