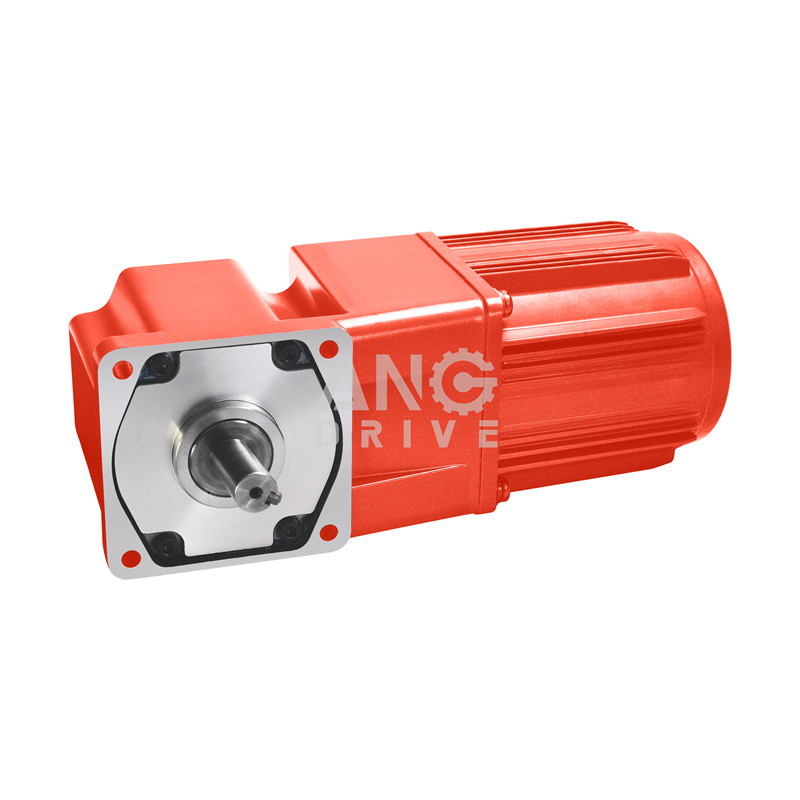

AC Right Angle Gear Motor
This AC right angle gear motor is designed for 90-degree angular power transmission. It is available in single or three-phase configurations.
Technical Specifications
Product Overview

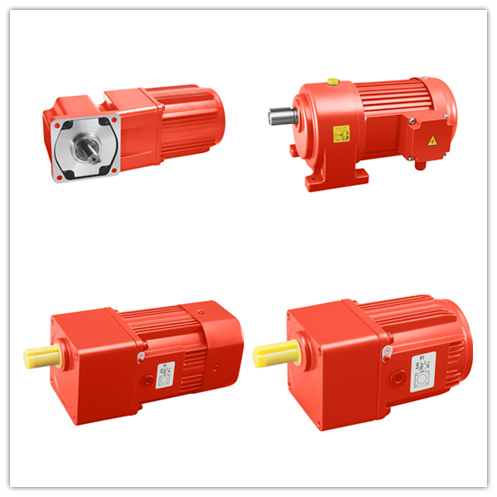

Versatile AC Right Angle Gear Motor
These professional-grade AC gear motors are engineered for applications requiring high torque and precise speed control in a compact 90-degree configuration. Available in both single and three-phase variants, they feature advanced heat dissipation designs, durable forged components, and high-protection electrical housings. Suitable for a wide range of industrial automation and mechanical transmission needs, these units are designed for reliability, efficiency, and long service life.
Technical Specifications
Power Output
- 6W
- 10W
- 15W
- 25W
- 40W
- 60W
- 90W
- 120W
- 140W
- 200W
- 370W
- 3700W
- Frame Sizes
- 60mm70mm80mm90mm104mm110mm130mm
- Voltage Configuration
- Single Phase 110V/220VThree Phase 220V/380V50Hz/60Hz
Performance Metrics
Operational Speed
1,200 rpm
Motor Min Speed
3,000 rpm
Motor Max Speed
Design Features
Available Gearbox Configurations
- Parallel shaft
- Right angle hollow worm shaft
- Right angle bevel hollow shaft
- Flat type hollow shaft
- Right angle solid worm shaft
- Right angle bevel solid shaft
- Flat type solid shaft
- Planetary center shaft
Motor Type Capabilities
InductionBrakeSpeed adjustingReversibleTorque Motor
