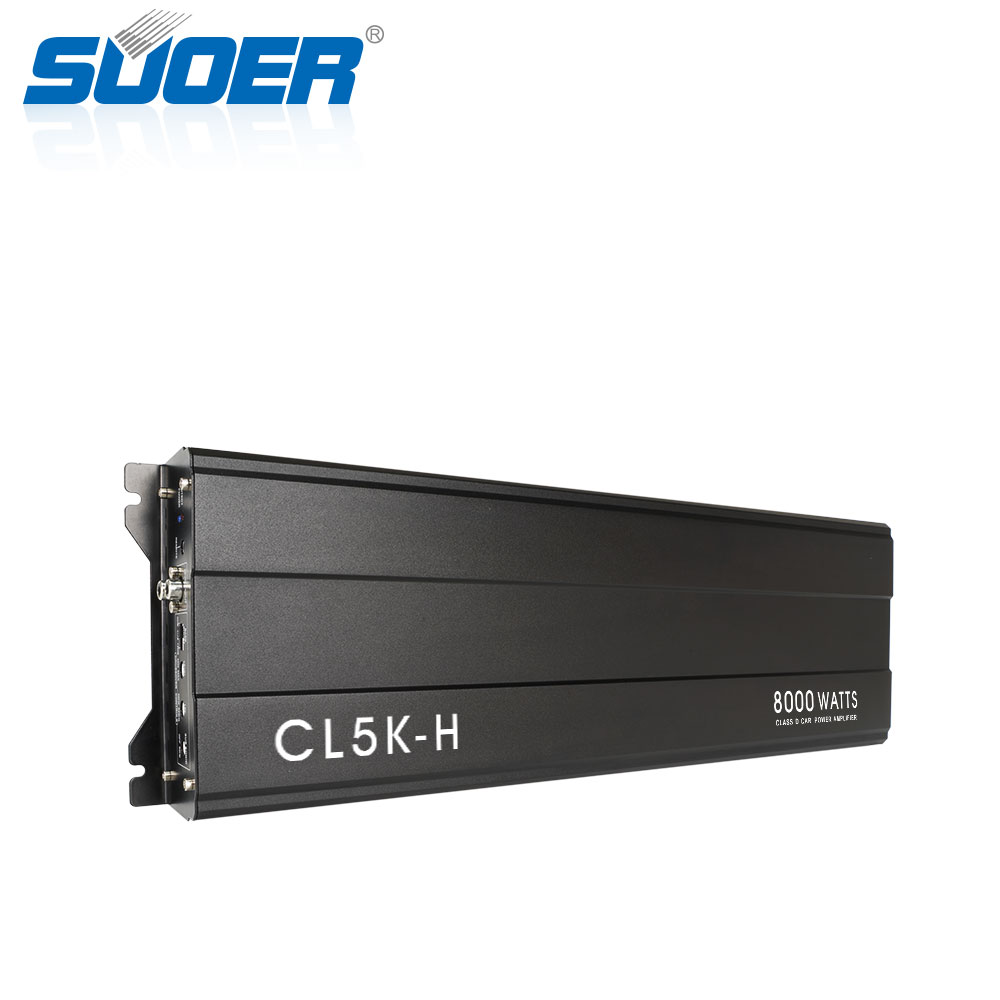

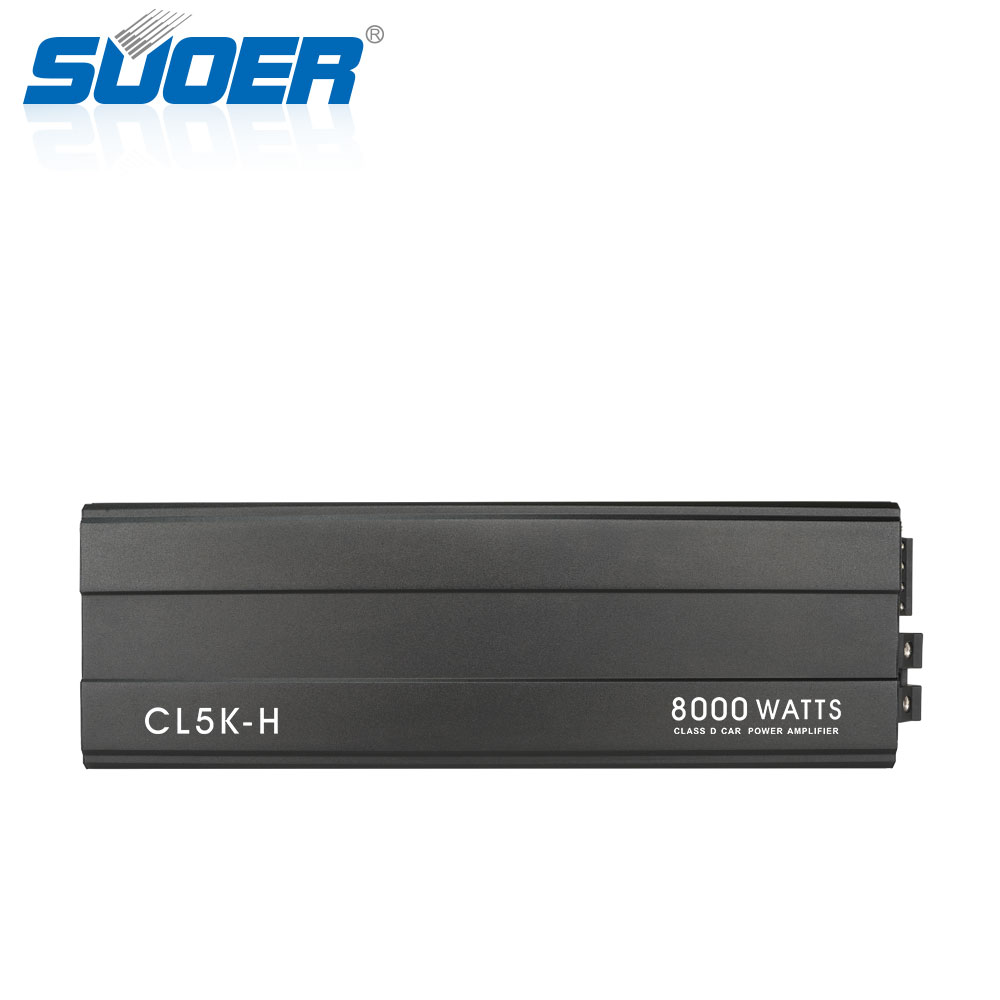

8000W Mono Channel Class D Car Amplifier
This mono channel car amplifier delivers 8000W of power with Class D technology. It is designed for car audio systems requiring substantial output.
Technical Specifications
Overview
High-Performance 8000W Mono Class D Amplifier
The CL5K-H is a high-power mono channel car amplifier engineered for audio enthusiasts seeking exceptional sound reproduction and impactful bass. Utilizing advanced Class D technology, it delivers up to 8000W peak power with high efficiency and minimal heat generation. This robust unit is designed to drive demanding subwoofers while offering comprehensive protection circuits and precise sound tuning for a superior in-car entertainment experience.
Power Performance
Peak Power Output
8,000 W
Peak Power
RMS Power Ratings (THD 1%)
| Impedance | RMS Power |
|---|---|
| 4 Ohm | 950W |
| 2 Ohm | 1800W |
| 1 Ohm | 2800W |
| 1 Ohm (THD 10%) | 3400W |
Technical Specifications
- Working Voltage
- DC 12-16V
- Frequency Response
- 10-220Hz (-3dB)
- Signal to Noise Ratio
- >95dB
- THD + Noise
- <0.03%
Audio Control
Sound Tuning Features
- Adjustable Input Sensitivity (0.2-6V)
- Low Pass Frequency (50-220Hz)
- High Pass Frequency (OFF-50Hz)
- Bass Boost Regulator (0-12dB)
- Remote Bass Control Support
Protection & Design
- Safety Systems
- Overcurrent ProtectionShort Circuit ProtectionThermal Overload ProtectionExternal FuseStatus LED Indicators
Physical Dimensions
- Unit Size
- 445 x 152 x 60 mm
- Net Weight
- 6.65 kg
Hardware Interface
Connection Terminals
- Power Input Terminal
- Horn Output Terminal
- Audio Signal Input
