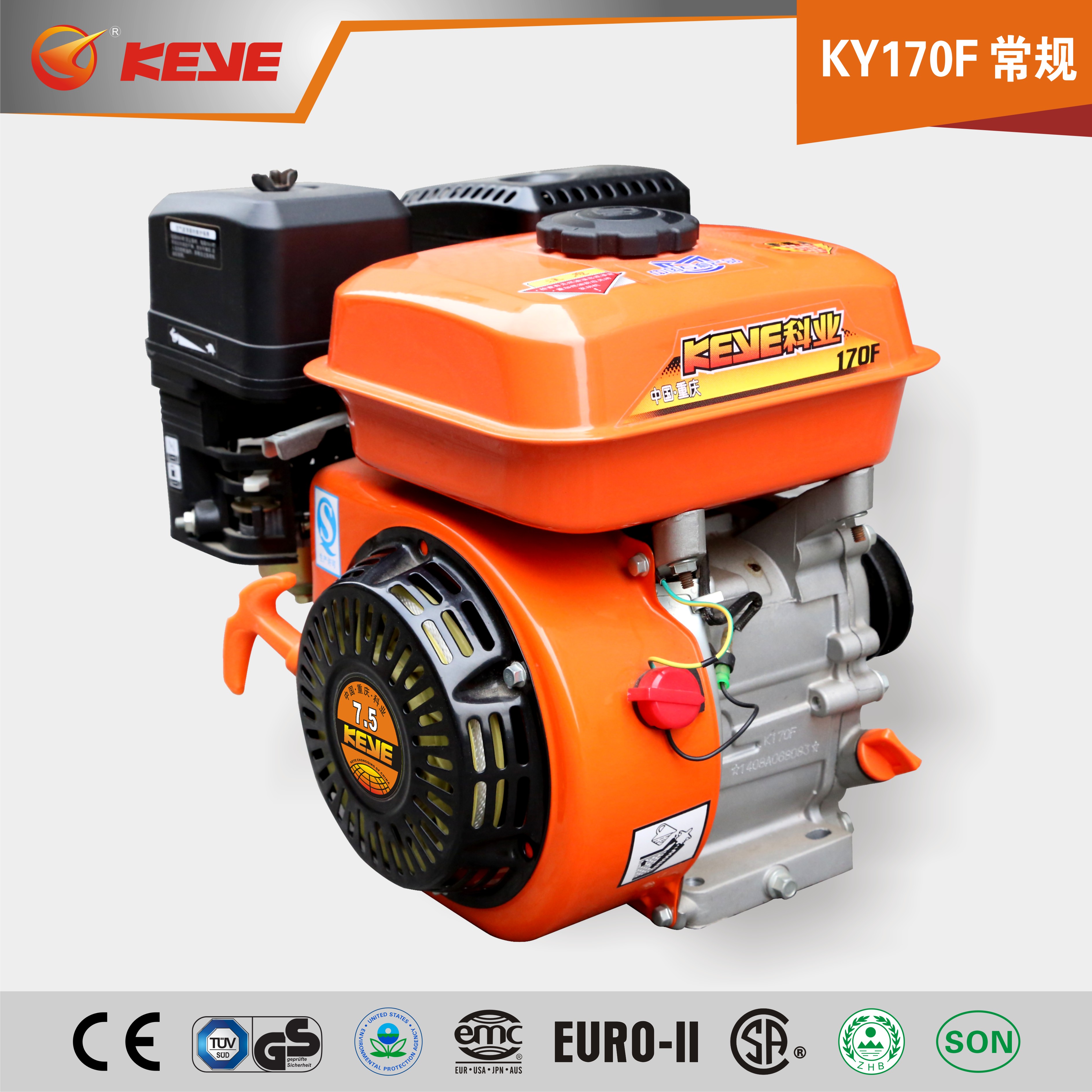

7.5 HP Gasoline Engine
This 7.5 horsepower gasoline engine is designed for various applications. It features a cyclone air filter and an enlarged oil tank for extended operation.
Technical Specifications
Overview
High-Efficiency 7.5 HP Gasoline Engine
This 7.5 HP gasoline engine is engineered for optimal performance and fuel efficiency, offering a 10% reduction in fuel consumption compared to standard models. It features a robust single-cylinder, four-stroke design with forced air cooling, ensuring reliability for heavy-duty applications. The engine is equipped with an improved recoil starter that enhances air intake and reduces heat, while the optimized combustion chamber design effectively eliminates carbon deposition.
Performance Metrics
Key Performance Metrics
8 kW
Rated Output
25 N.m
Max Torque
3,600 rpm
Rated Speed
Technical Specifications
Engine Core Specifications
| Parameter | Value |
|---|---|
| Engine Type | Single-cylinder OHV 25° inclined, four-stroke, forced air-cooled |
| Displacement | 420 ml |
| Bore x Stroke | 90 x 66 mm |
| Ignition System | Transistor magneto |
Fuel and Oil Capacity
- Fuel tank capacity: 6.5 L
- Oil capacity: 1.1 L
- Fuel consumption: ≤374 g/kW.h
Physical Properties
Dimensions and Weight
- Net weight: 31 kg
- Gross weight: 32 kg
- Dimensions: 520 x 465 x 485 mm
Logistics
Shipping Information
| Container Type | Quantity (Sets) |
|---|---|
| 20' GP | 192 |
| 40' GP | 500 |
Features
Certifications
CETÜV SUDEMCEURO-IISON
- Starting System
- Recoil startElectric start
