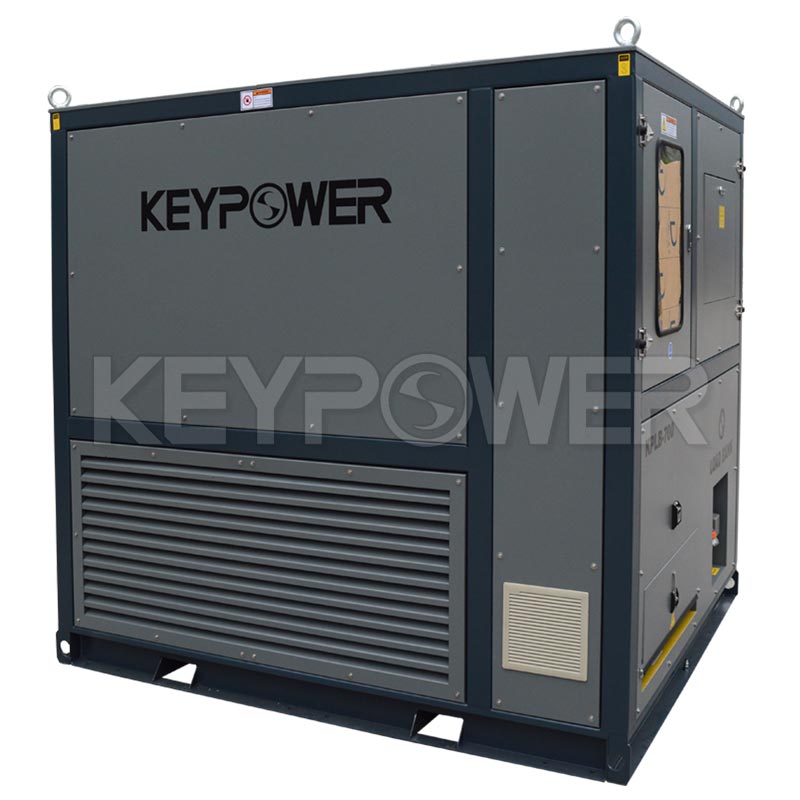

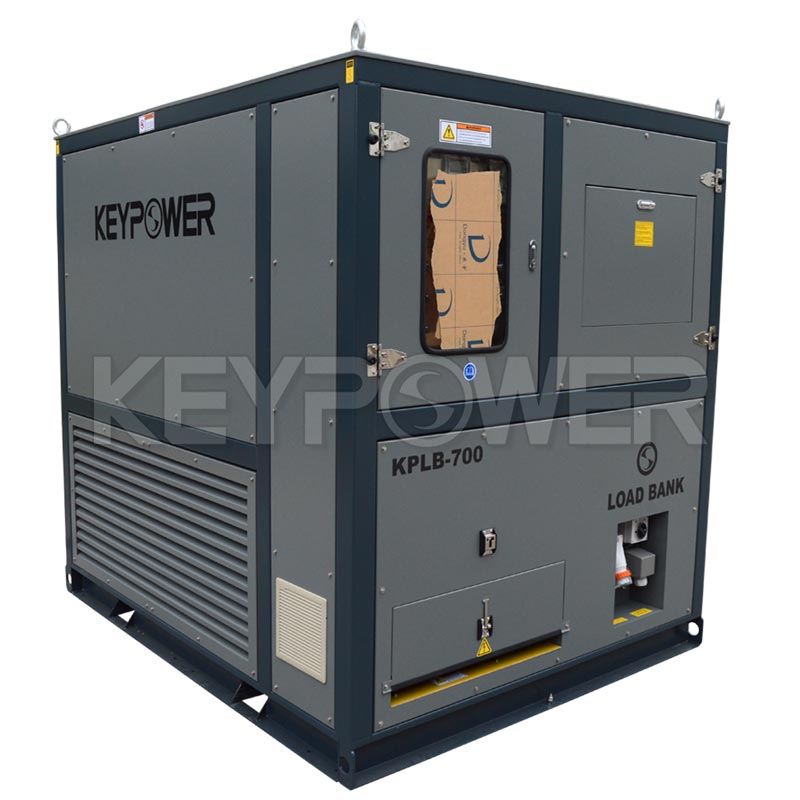

700 kW AC Resistive Load Bank for UPS Testing
This 700 kW AC resistive load bank is a reliable solution for testing and validating the performance of power and UPS systems. It provides a stable and controllable resistive load to simulate real-world operating conditions.
Technical Specifications
Overview
Professional Load Testing Solution
This 700 kW AC resistive load bank is engineered for high-precision testing of generators, UPS systems, and battery banks. Featuring robust stainless steel elements and forced-air cooling, it provides reliable performance for commissioning, maintenance, and troubleshooting. The system offers flexible load control with 10 kW resolution and comprehensive protection mechanisms to ensure safety and accuracy during critical power system evaluations.
Performance Metrics
Total Testing Capacity
700 kW
Max Capacity
10 kW
Step Resolution
- Load Type
- Resistive (PF = 1.0)
- Accuracy Grade
- 0.3
Electrical Specifications
- Voltage Range
- 110-480 VAC
- Rated Frequency
- 50/60 Hz
- Phase Configuration
- Single PhaseThree Phase
Components & Control
Control Modes
- Local manual control
- Optional remote control (up to 30m)
Core Components
| Component Type | Function |
|---|---|
| Contactors | Switching |
| Circuit Breakers | Protection |
| Relays | Control |
| Terminal Blocks | Connectivity |
Safety & Environment
Safety Protections
Overheating ProtectionFan Failure ProtectionOverload Protection
Operating Conditions
- Altitude: <= 3000m
- Ambient Temp: -10 to +50 °C
- Relative Humidity: <= 80%
