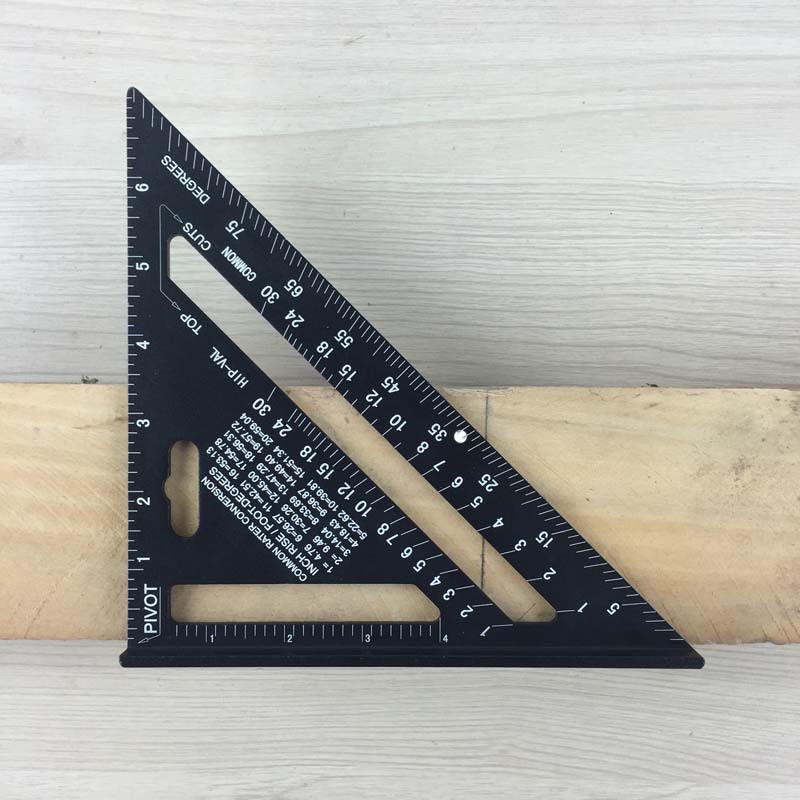

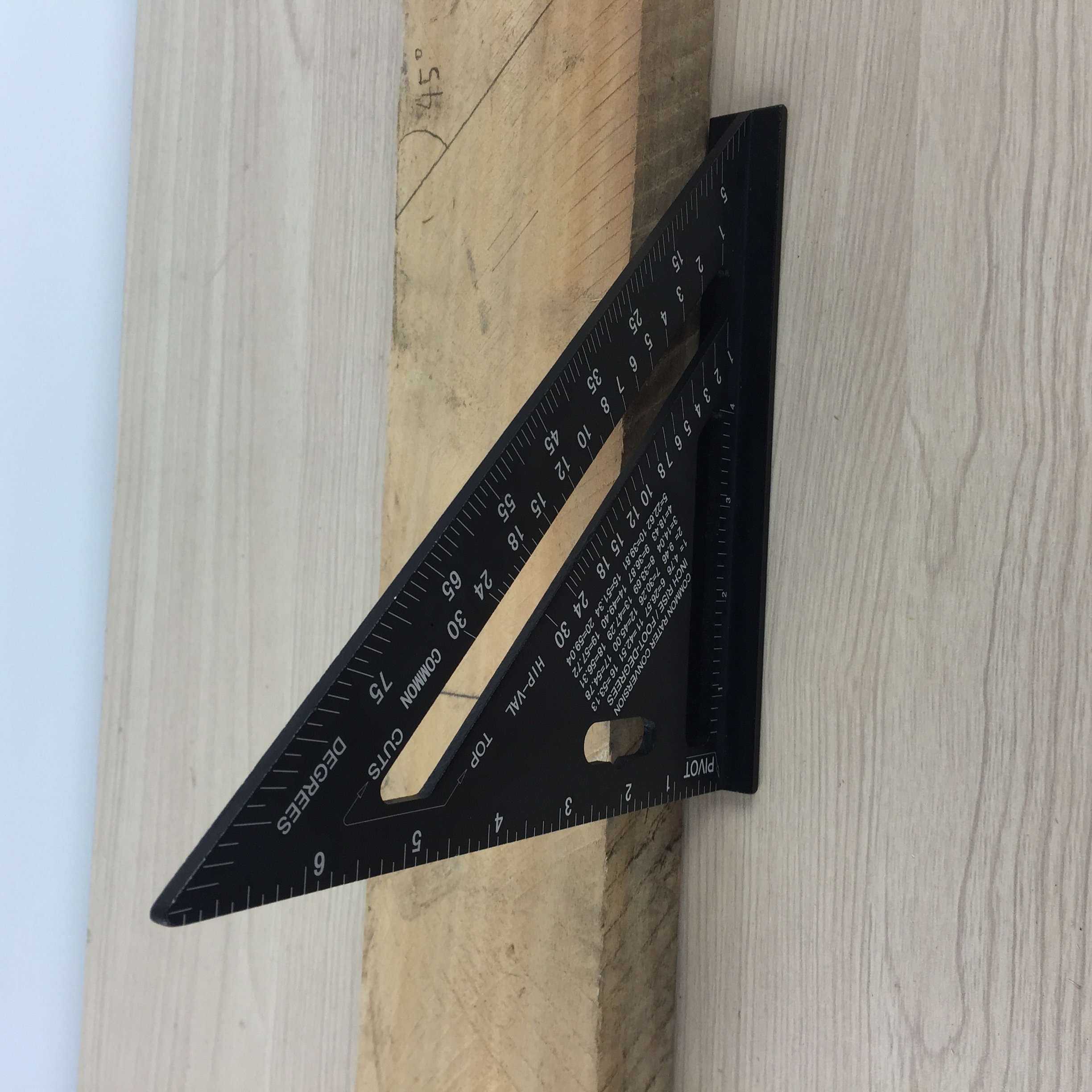

7-Inch Aluminum Pivot Rafter Angle Square
This 7-inch rafter square is made from durable aluminum and features a pivoting arm for versatile angle finding. It includes scales for common rafter cuts, hip-valley rafter cuts, and degree markings for precise measurements.
Technical Specifications
Product Overview
Professional Rafter Square
This 7-inch aluminum pivot rafter square is a precision tool designed for accurate angle measurements and marking in construction and woodworking. Featuring a durable black electrophoretic finish and clear laser-etched reticles, it provides reliable performance for common rafter cuts, hip-valley markings, and precise degree adjustments. The integrated pivot point allows for versatile angle finding, making it an essential companion for roofing, carpentry, and general construction projects.
Construction & Design
- Material
- Aluminum
- Finish
- Black electrophoretic paint
- Size
- 7 inch
Technical Features
Functionality
Pivot PointLaser ReticleQuick Angle Measurement
Conversion Reference
| Rise | Degree |
|---|---|
| 1 | 4.76 |
| 5 | 22.62 |
| 10 | 39.81 |
| 15 | 51.34 |
| 20 | 59.04 |
- Integrated Markings
- Common Rafter ConversionInch Rise/Foot-DegreesHip-Valley Rafter MarkingsDegree Markings
