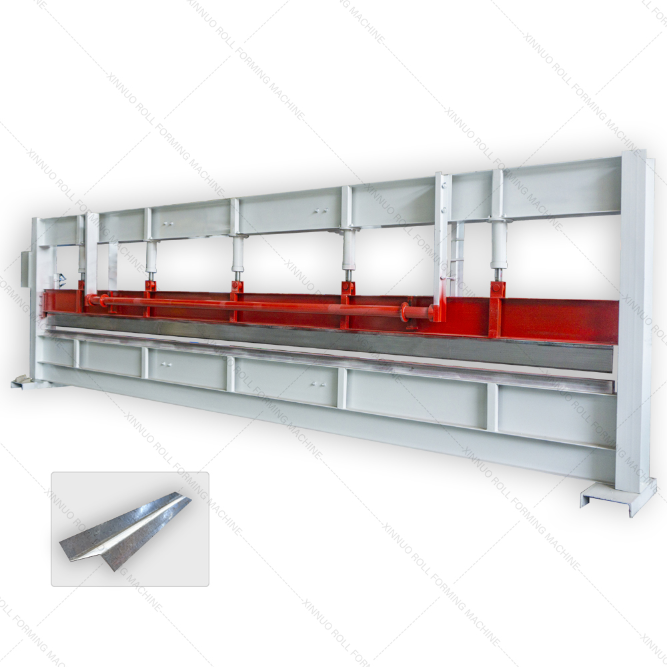

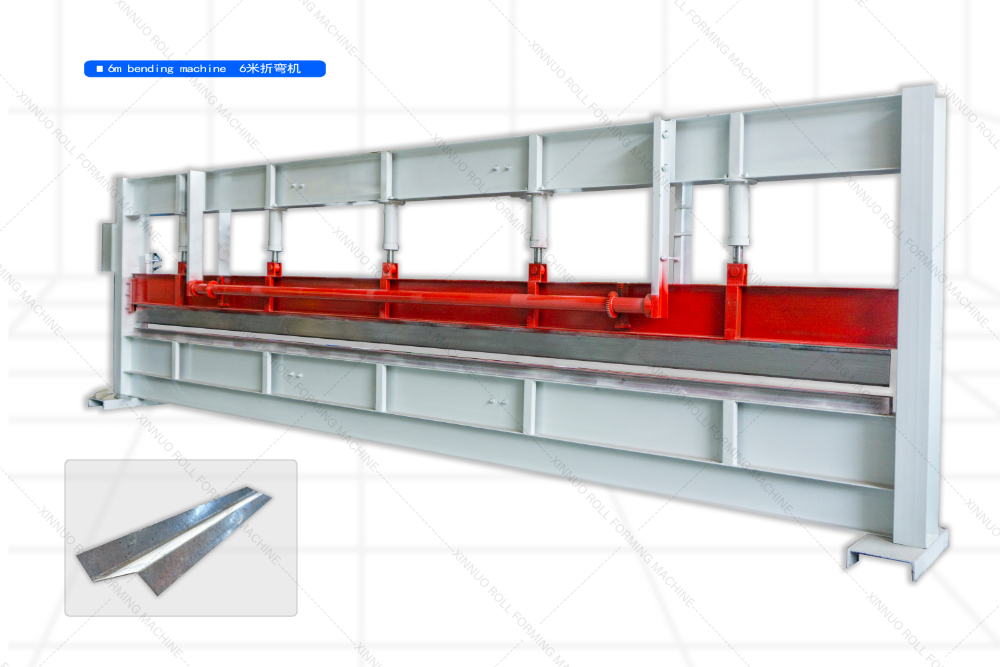

6m Hydraulic Sheet Metal Bending Machine
This 6m hydraulic bending machine is designed for forming metal panels. It utilizes hydraulic power for efficient and precise bending operations.
Technical Specifications
Product Overview
High-Performance 6m Hydraulic Bending Solution
This 6m hydraulic sheet metal bending machine is engineered for precision metal forming in heavy-duty industrial applications. Utilizing a robust steel welded structure and hydraulic transmission, it offers reliable performance and easy operation for processing long metal panels. It is an ideal solution for manufacturing structural components and profiles with high repeatability and accuracy.
Technical Capabilities
Performance Metrics
6,000 mm
Max Raw Material Width
3 KW
Motor Power
- Processing Thickness
- 0.2 - 1.0 mm
- Compatible Materials
- Color Steel PlateSteel PlateGalvanized Sheet
Build Quality & Materials
Machine Construction
- Steel welded structure for high rigidity
- Hydraulic transmission system
- Milling machine processed body after welding
- Sturdy and durable H300 or H350 steel frame
Component Specifications
| Component | Material / Treatment | Benefit |
|---|---|---|
| Roller | GCr15 | Ensures forming effect and longer service life |
| Cutting Blade | Cr12 Steel (Quenched) | High precision and resists deformation |
Safety & Operation
Safety & Control
- Emergency stop buttons
- Overload protection system
- User-friendly control panel
- Hydraulic cylinders for controlled bending force
Compliance
Quality Assurance
CE CertifiedISO 9001Quality Management System
