6D22 Engine Piston and Cylinder Liner Kit
This kit includes a high-quality piston, piston ring, and cylinder liner. The 6D22 kit is designed for Mitsubishi engines to ensure optimal engine performance and durability.
Technical Specifications
Overview
6D22 Engine Piston and Cylinder Liner Kit
This high-performance engine kit is designed specifically for 6D22 engines, providing a comprehensive solution for engine rebuilds and maintenance. The kit includes precision-engineered components manufactured to meet or exceed original equipment specifications, ensuring optimal engine performance, efficient combustion, and extended service life. With superior heat dissipation properties and robust construction, these parts are built to withstand demanding operating conditions.

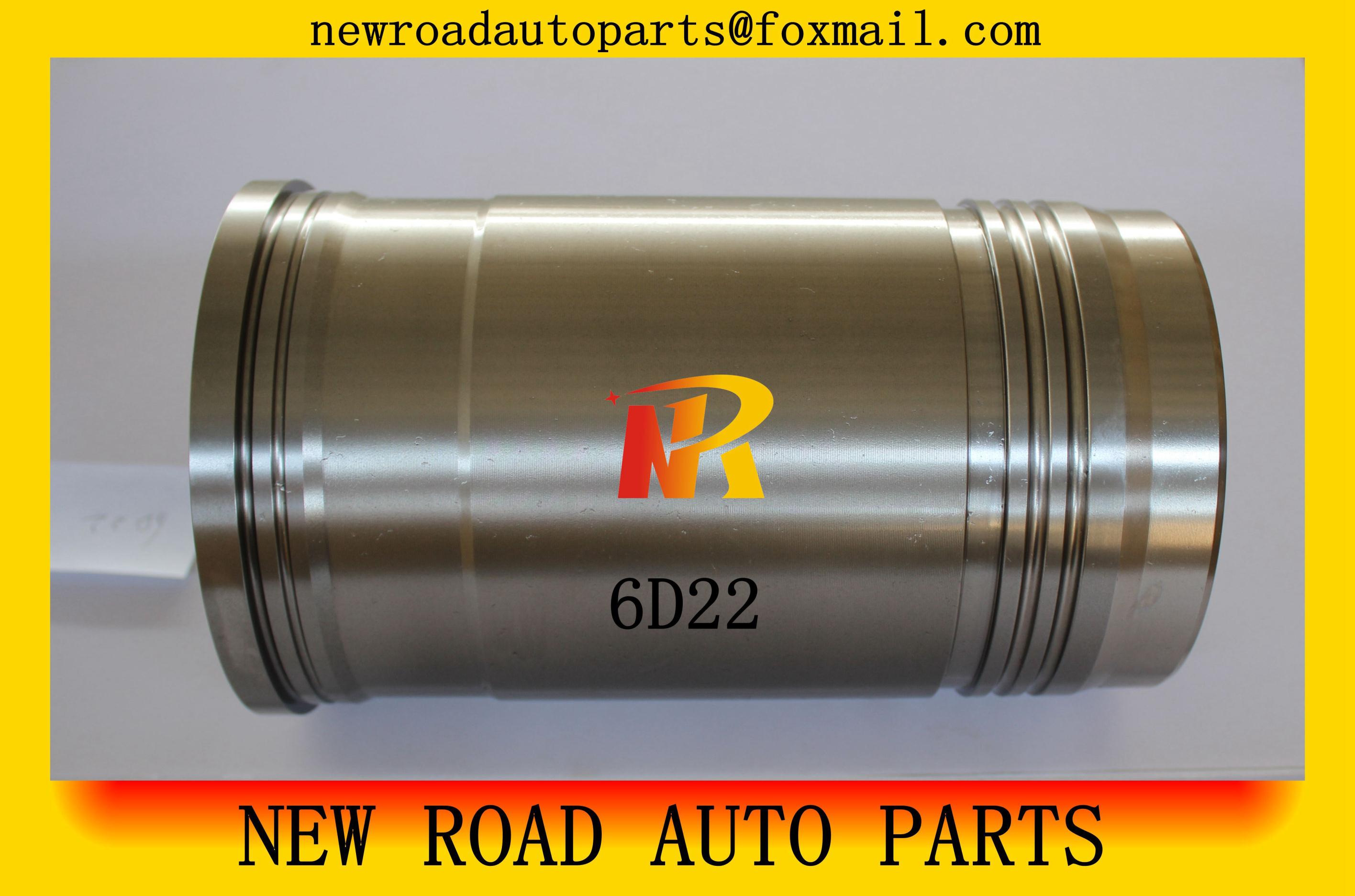

Cylinder Liner Specifications
Liner Dimensions
| Measurement | Value | Unit |
|---|---|---|
| Bore | 130 | mm |
| Outer Diameter | 147 | mm |
| Total Length | 149 | mm |
| Flange Diameter | 262 | mm |
| Flange Height | 11.5 | mm |

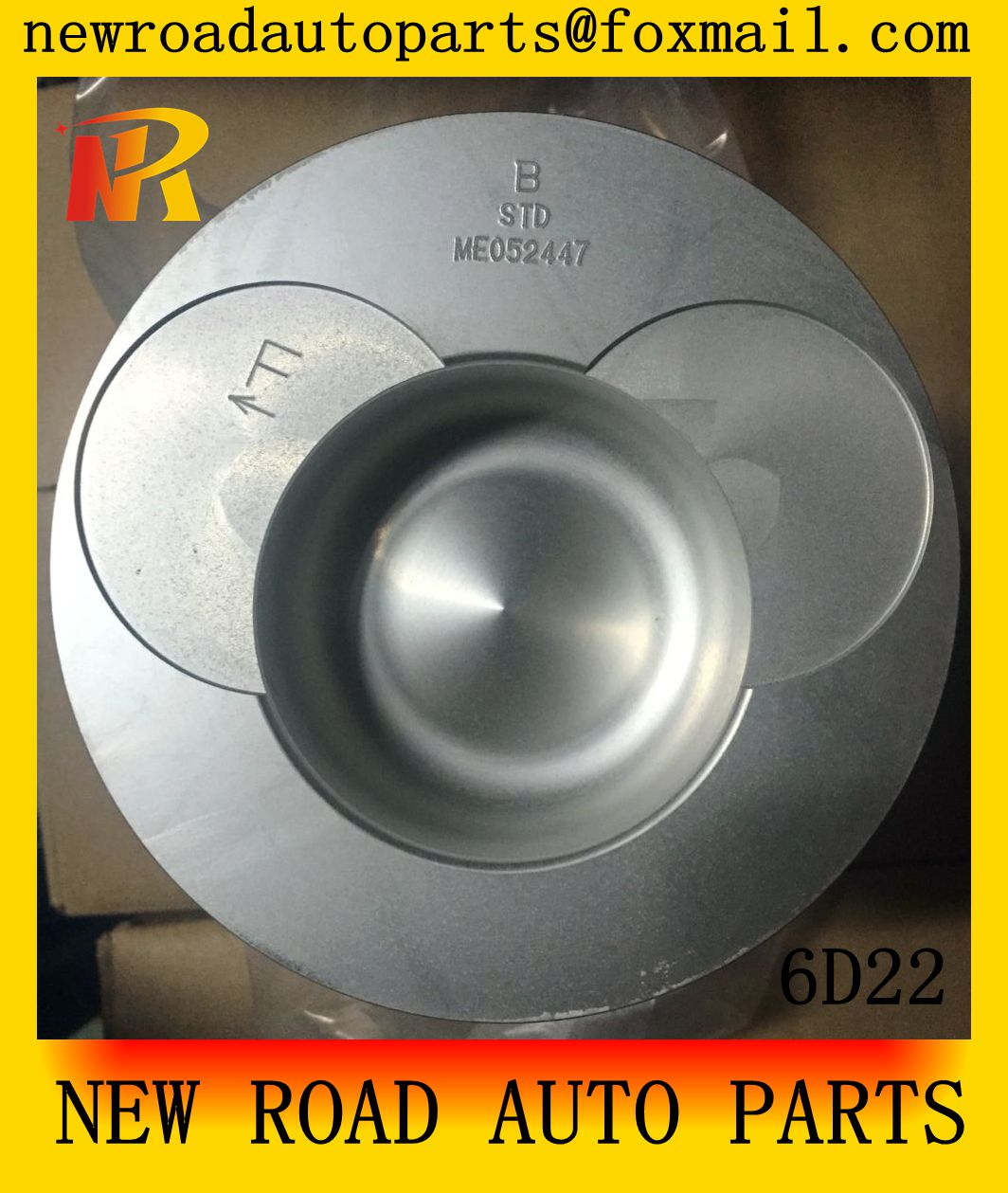

Piston Specifications
Key Piston Metrics
130 mm
Piston Diameter
158 mm
Length
83 mm
Compression Height
- Pin Size
- 50mm x 106mm
Compatibility & Identification
- OEM Reference Numbers
- ME052447ME052448ME052449
Piston Ring Specifications
Ring Dimensions
- 3.306 mm
- 3 mm
- 6 mm
