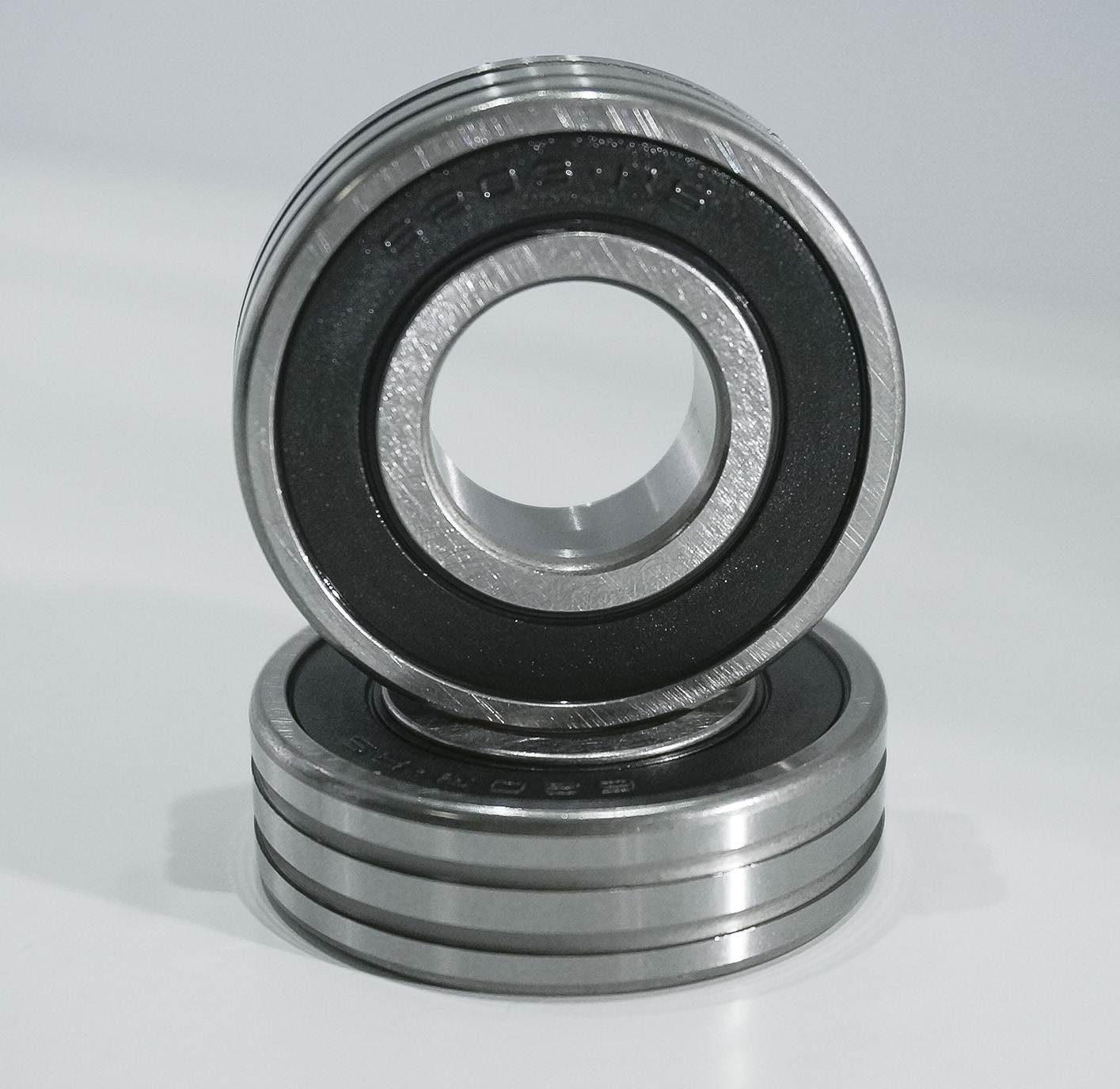

6203-2RS Deep Groove Ball Bearing for Timing Belt Tensioners
This high-precision deep groove ball bearing is designed for timing belt tensioner applications. It features 6203 dimensions and 2RS seals for enhanced protection and smooth operation.
Technical Specifications
Product Overview
High-Performance Tensioner Bearing
The 6203-2RS is a precision-engineered deep groove ball bearing specifically designed for demanding timing belt tensioner applications. Featuring high-temperature resistance and low-noise operation, this bearing ensures smooth rotational movement in automotive and industrial environments. It is constructed with durable chrome steel and reinforced with a nylon cage, providing reliability and an extended service life.
Dimensions & Specifications
Key Dimensions
17 mm
Inner Diameter
40 mm
Outer Diameter
12 mm
Width
- Internal Structure
- Ball bearings
- Cage Material
- Nylon
Technical Standards
Clearance Classes
C2C0C3C4C5
Vibration Grades
- Z1V1
- Z2V2
- Z3V3
- Z4V4
- Precision Levels (ABEC)
- ABEC1(P0)ABEC3(P6)ABEC5(P5)ABEC7(P4)ABEC9(P2)
- Supported Standards
- DINGBISOJISBAANSI
Performance & Materials
Available Materials
- Carbon Steel
- Chrome Steel
- Stainless Steel
- Plastic
- Ceramic
- Sealing Type
- 2RS (Rubber seals on both sides)
- Lubrication
- Grease
