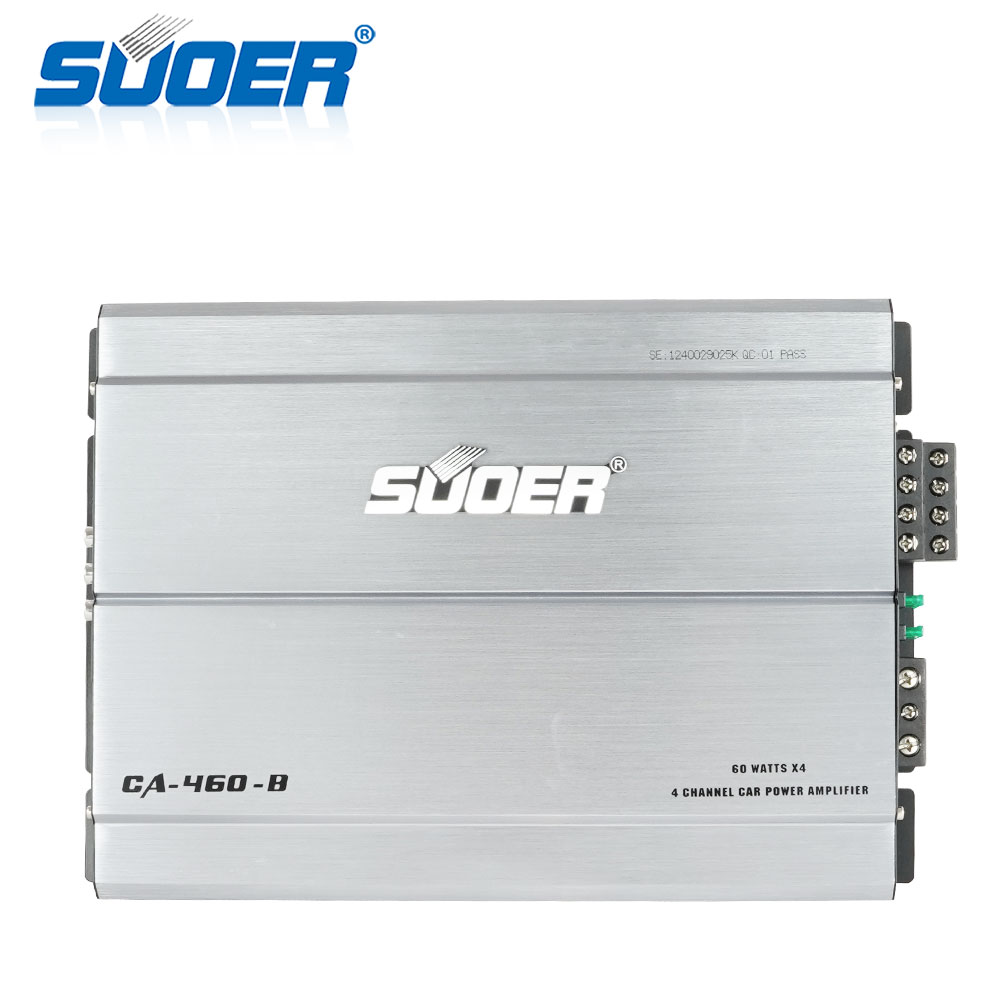

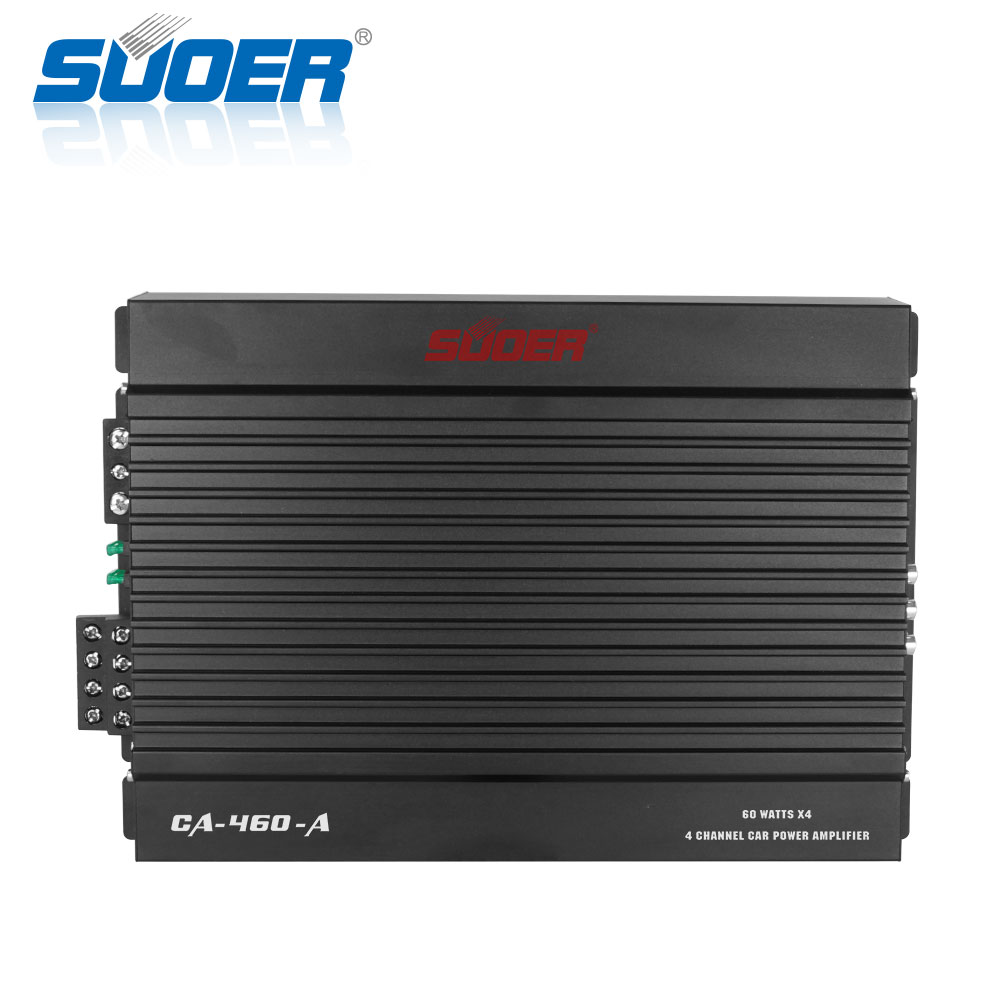

600W 4-Channel Class AB Car Audio Amplifier
This 4-channel car amplifier delivers 600W of power with Class AB technology. It is engineered to enhance the audio experience in vehicles, providing clear and powerful sound reproduction.
Technical Specifications
Overview
High-Performance 4-Channel Car Audio Solution
This 600W Class AB car audio amplifier is designed to deliver a balance of efficiency and high-fidelity sound reproduction. With four channels of output, it provides versatile connectivity for speakers and subwoofers, ensuring a clear and immersive 3D surround audio experience. Built-in protection circuitry and robust construction make it a reliable choice for demanding automotive environments.
Performance Metrics
Key Performance Metrics
600 W
Peak Power
82 dB
Signal-to-Noise Ratio
0.01 %
Total Harmonic Distortion
Power Output
Power Specifications
| Configuration | Output Power |
|---|---|
| 4 Channels @ 4 Ohms (14.4V) | 4 x 60W |
| 4 Channels @ 2 Ohms (14.4V) | 4 x 80W |
| Minimum Impedance | 2 Ohms |
Audio Tuning
Audio Controls & Tuning
- Adjustable Gain Control for precise signal matching
- Variable Bass Boost: 0 to 12dB
- Low Pass Filter: 20Hz - 250Hz
- High Pass Filter: 20Hz - 250Hz
- Frequency Response: 15Hz - 40kHz (-3dB)
Amplifier Class
Class AB
Technical Specifications
- Input Sensitivity
- 0.15V - 5V
- Operating Voltage
- 14.4V DC (9V-15V allowable)
- Grounding System
- Negative Ground
Protection & Safety
- Safety Systems
- Overheating ProtectionOvercurrent ProtectionShort Circuit ProtectionDual 30A Fuses
Physical Dimensions
- Product Size
- 230mm x 318mm x 50mm
- Net Weight
- 2.12 kg
