6-Gang Waterproof Rocker Switch Panel with Voltmeter and USB Charger
This waterproof switch panel features six rocker switches with blue LED indicators, a digital voltmeter, and a 3.1A USB charging port. It is designed for marine and automotive applications.
Technical Specifications
Overview
Comprehensive Control for Marine and Automotive Power

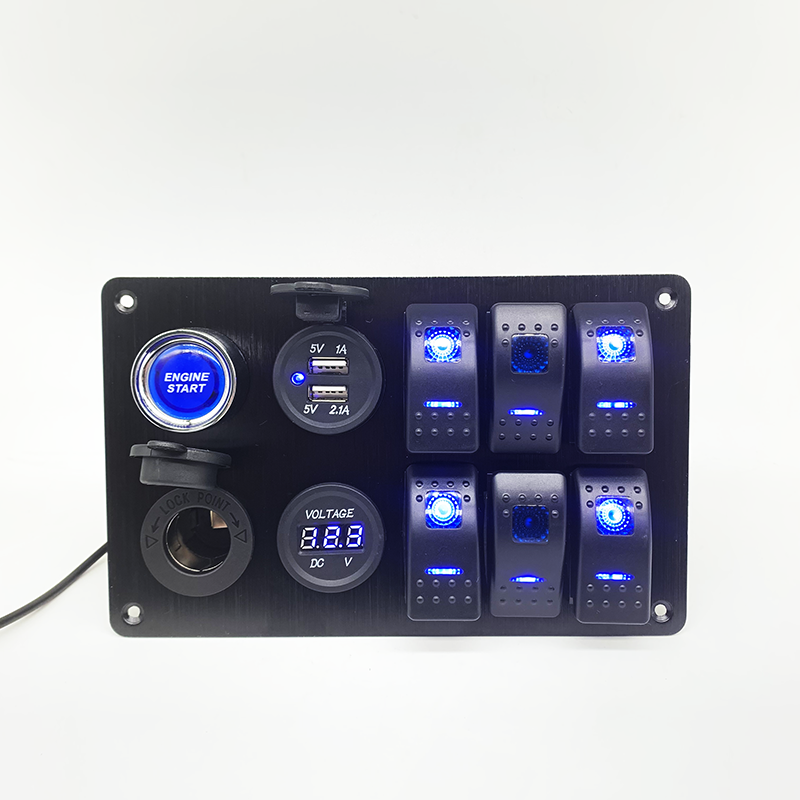

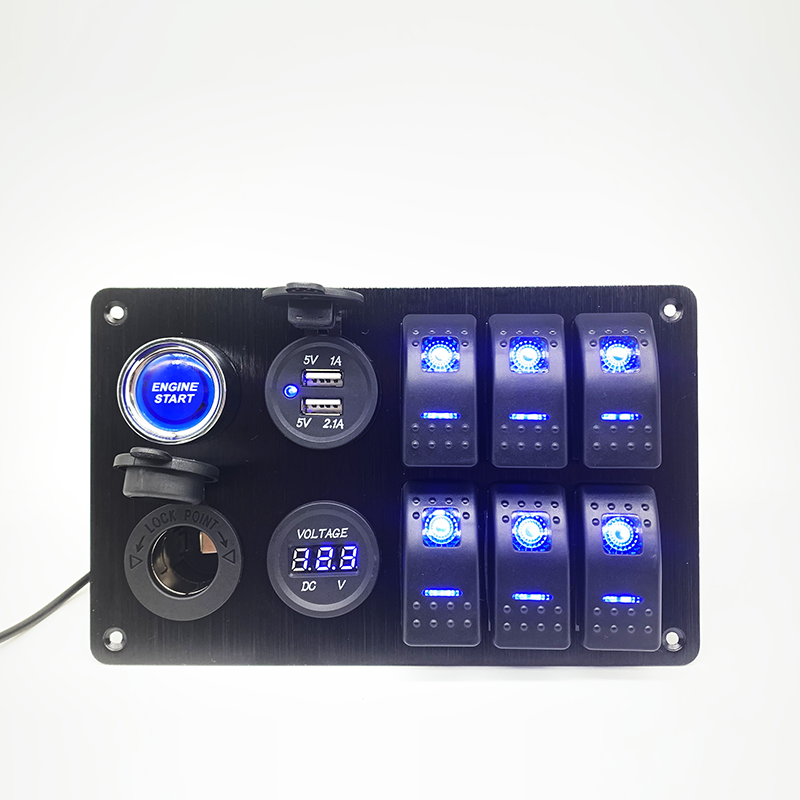

This 6-Gang Rocker Switch Panel is a versatile power management solution designed for boats, RVs, and off-road vehicles. It combines six independent SPST switches with a high-output 3.1A dual USB charger and a real-time digital voltmeter for constant battery monitoring. Built with a durable aluminum faceplate and waterproof rubber seals, it ensures reliable performance in harsh, high-moisture environments.
Technical Specifications

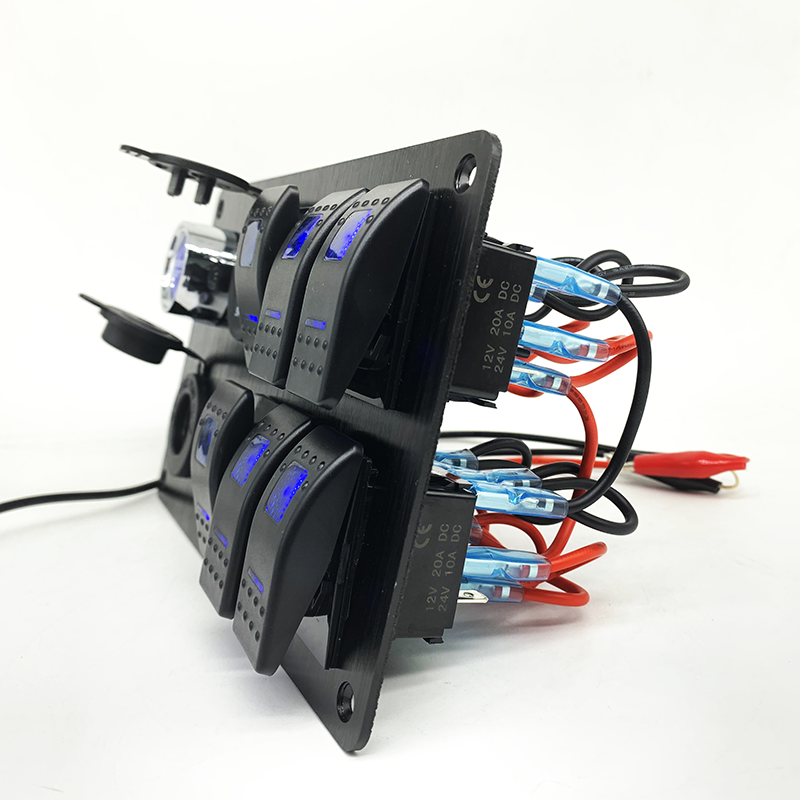

Electrical Rating
20 A
12V DC Rating
10 A
24V DC Rating
Operating Voltage
- 12V DC
- 24V DC
- Operating Temperature
- -25°C to +85°C
Design & Materials
- Materials
- AluminiumABSMetalFlame Retardant
- Panel Color
- Gold
- LED Indicator Color
- Blue
Functionality
Integrated Components
- Digital Voltmeter
- Dual USB Charger (3.1A Total)
- 12V Power Socket
- Engine Start Button
USB Output
| Port | Voltage | Amperage |
|---|---|---|
| Port 1 | 5V | 1A |
| Port 2 | 5V | 2.1A |
- Switch Configuration
- 6-Gang SPST ON-OFF Rocker
Installation & Protection
Protection Features
- Waterproof Sealing Covers
- Dust Resistant
- Debris Resistant
- Environmentally Friendly Flame Retardant Materials
Ideal Applications
MarineBoatRVCarBusTrailerMotorcycle

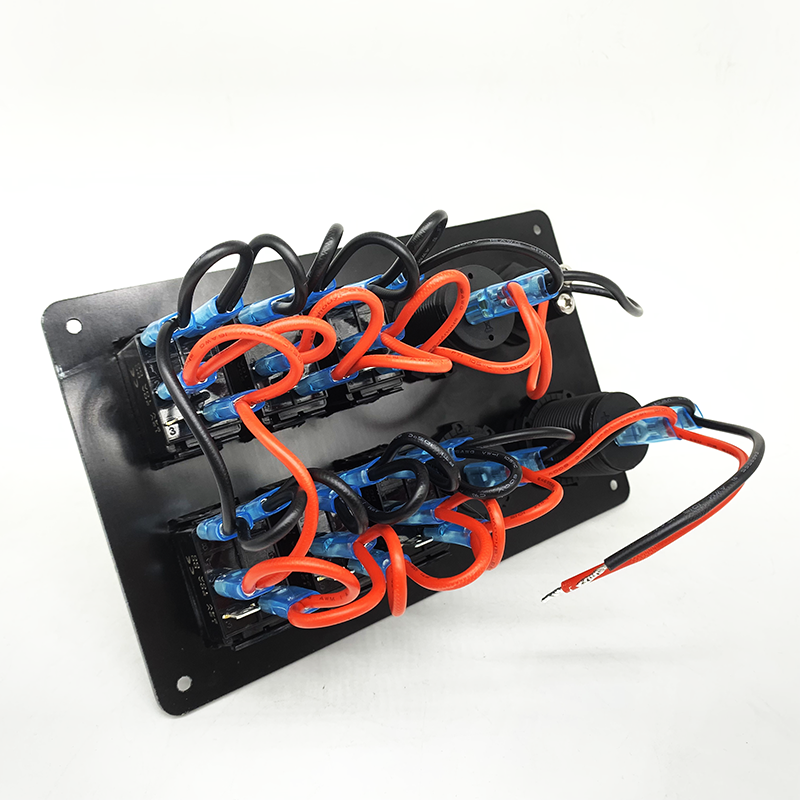

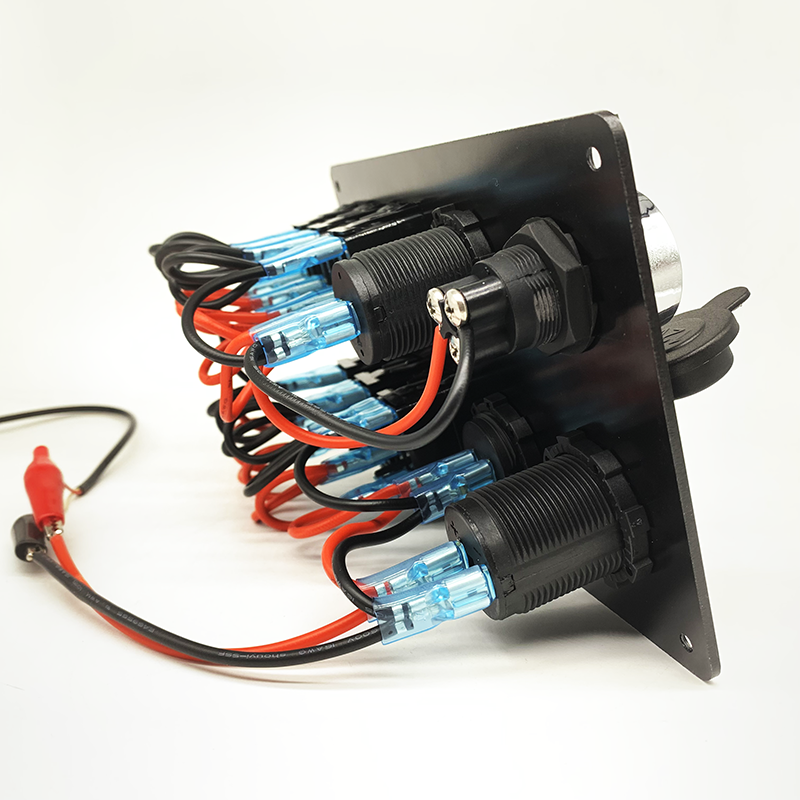

- Internal Wiring
- 16 AWG Pre-wired
- Compliance
- CE
