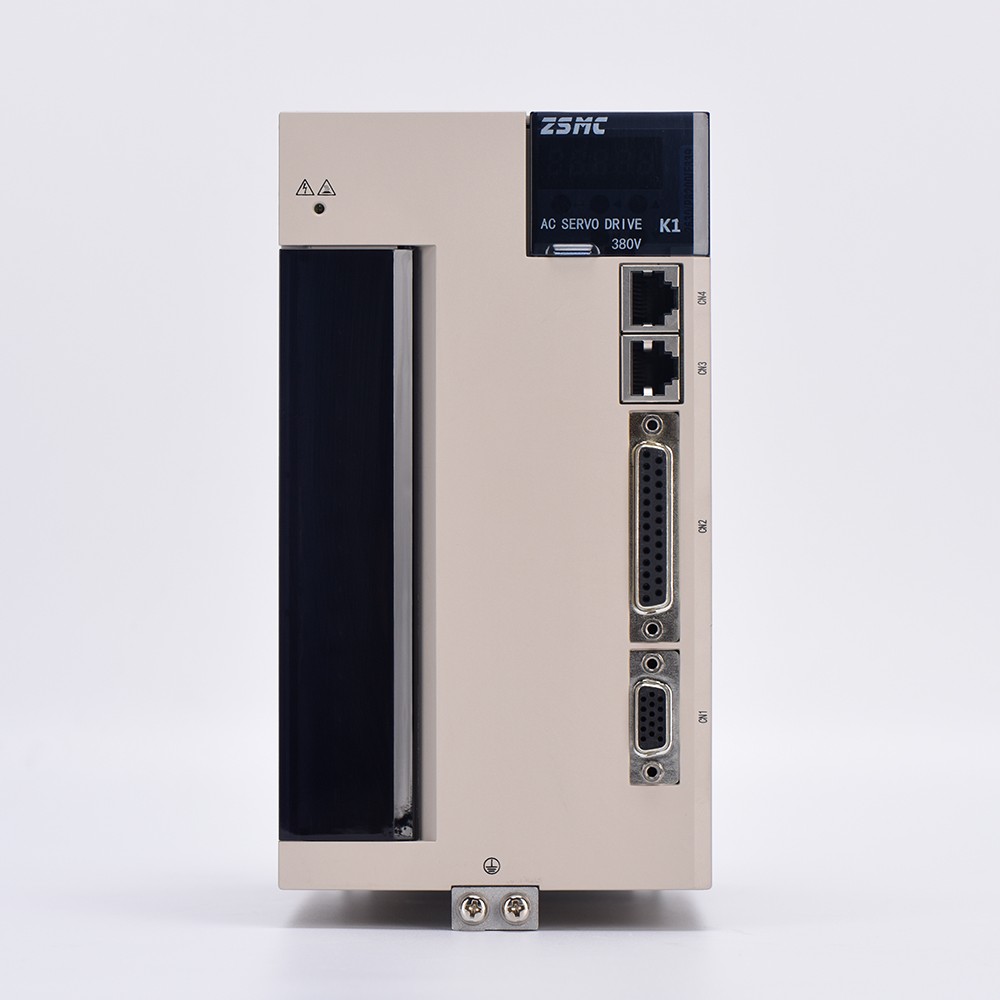

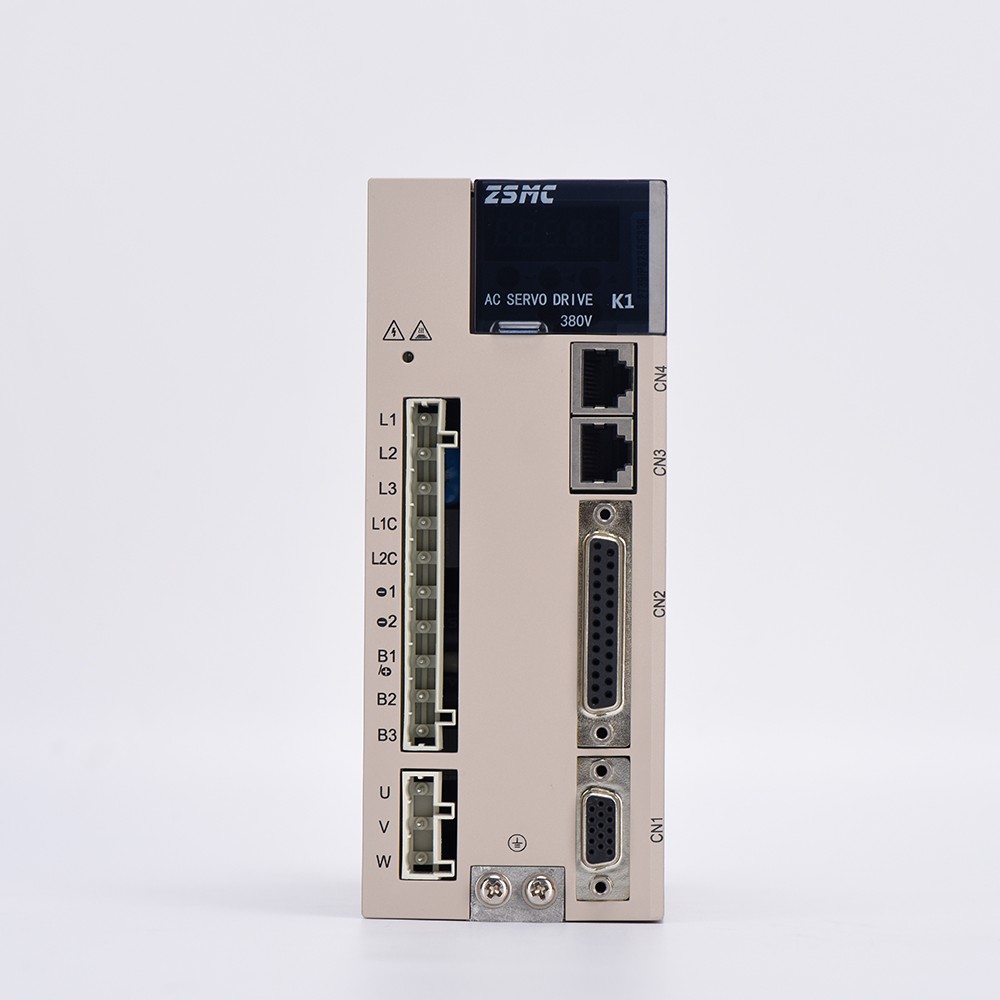

5kW Pulse Servo Drive for Automation
This 5kW servo drive is designed for precise motion control in automation applications. It features internal position mode for continuous multi-path planning and automatic load inertia determination for optimal gain.
Technical Specifications
Product Overview
High-Performance Pulse Servo Drive
This 5kW pulse servo drive is engineered for precision industrial automation, featuring advanced three-phase PWM converter technology. It offers intelligent motion control with support for up to 32 data sets and automatic load inertial property determination. Designed for stability, the unit includes mechanical resonance analysis and adjustable trap filters to ensure smooth operation in demanding environments.
Performance Specifications
- Control Modes
- Position ControlSpeed ControlTorque ControlInner Speed
- Overload Capacity
- 3 x Rated Torque
- Resonance Frequency Analysis
- 50-5000Hz
Electrical Ratings
- Power Input
- 220V Single/Three-Phase380V Three-Phase
- Voltage Tolerance
- -15% to +10%
- Rated Current (5kW Model)
- 25 A
Connectivity
I/O Isolation
- DC24V optocoupler isolated inputs
- 3-way optocoupler isolated outputs
- Supported Protocols
- CANopenModbus
Environment
- Operating Temperature
- 0 to 45 °C
- Operating Humidity
- 20-85% RH (non-condensing)
- Vibration Resistance
- 5.8 m/s² (0.6G)
