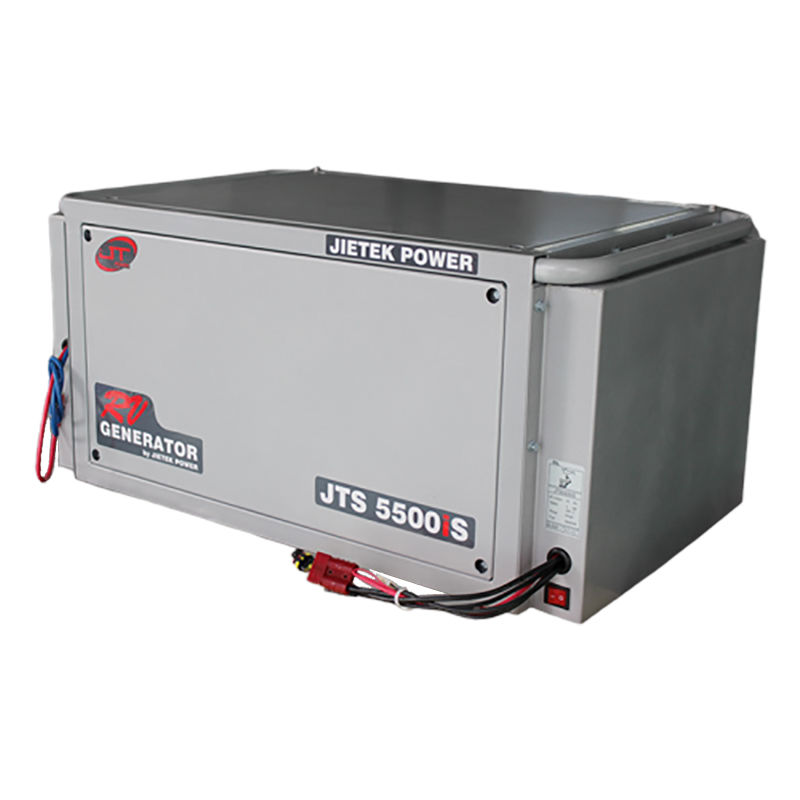

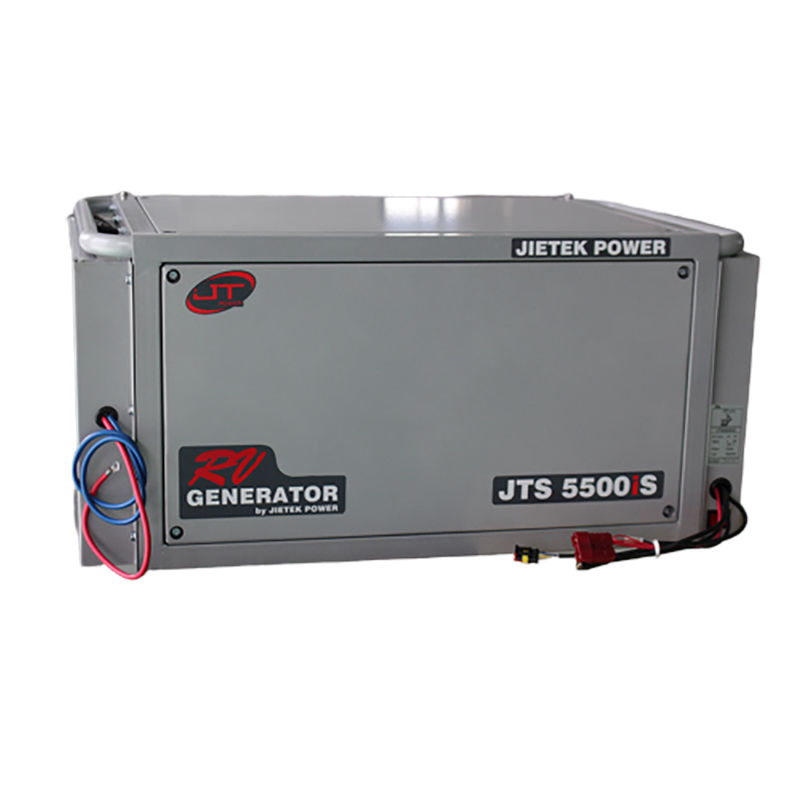

5500W Vehicle Inverter Generator
This 5500W gasoline inverter generator is designed for RVs and special vehicles. It features super silent operation and provides stable power for mobile applications.
Technical Specifications
Overview
High-Performance Vehicle Inverter Generator
This 5500W inverter generator is specifically engineered for RVs and specialized vehicles, providing a stable and clean pure sine wave output. It features a super silent design operating at 65dBA and is capable of 24-hour continuous operation under full load without power reduction. Designed for mobility, it can safely operate while the vehicle is in motion and offers significant fuel savings of 20% to 40% compared to traditional units.
Power Performance
Key Power Ratings
5 kW
Rated Power
5.5 kW
Max Power
2.5 %
Max THD
- Supported Voltages
- 110V220V240V
- Frequency
- 50 / 60 Hz
Engine Specifications
Engine Technical Data
| Feature | Specification |
|---|---|
| Model | JD190F |
| Type | Forced Air Cooled, Single Cylinder, 4-Stroke OHV |
| Displacement | 420cc |
| Speed | 2800-3600 rpm (load-based) |
| Fuel Type | Unleaded Gasoline / LPG |
Control & Monitoring
5-inch LCM Display Functions
- Remote Start / Stop Control
- Load Status Monitoring
- Voltage & Frequency Display
- Power Rate & Working Hours
- Inverter System Information
- Battery Status
Safety Systems
Short Circuit AlarmOverload AlarmLow Oil AlarmOverload Protection
Operation & Efficiency
- Fuel Tank Capacity
- 24 L
- Continuous Running Time
- 9 hours
- Noise Level (7m)
- 63 dBA
Physical Dimensions
- Dimensions (LxWxH)
- 730 x 670 x 640 mm
- Net Weight
- 87 kg
Compliance
- Product Certifications
- EPACEISO 9001
