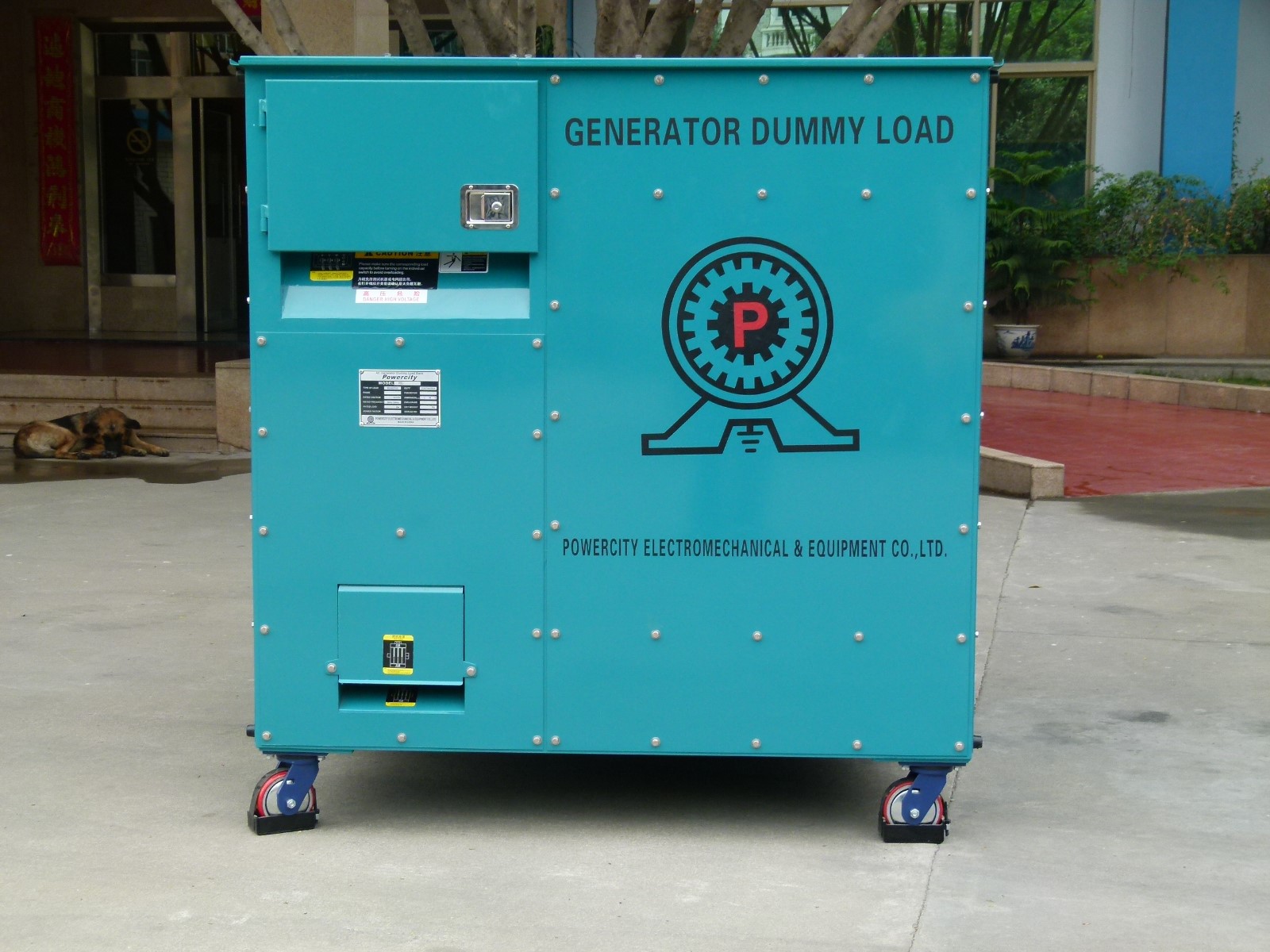

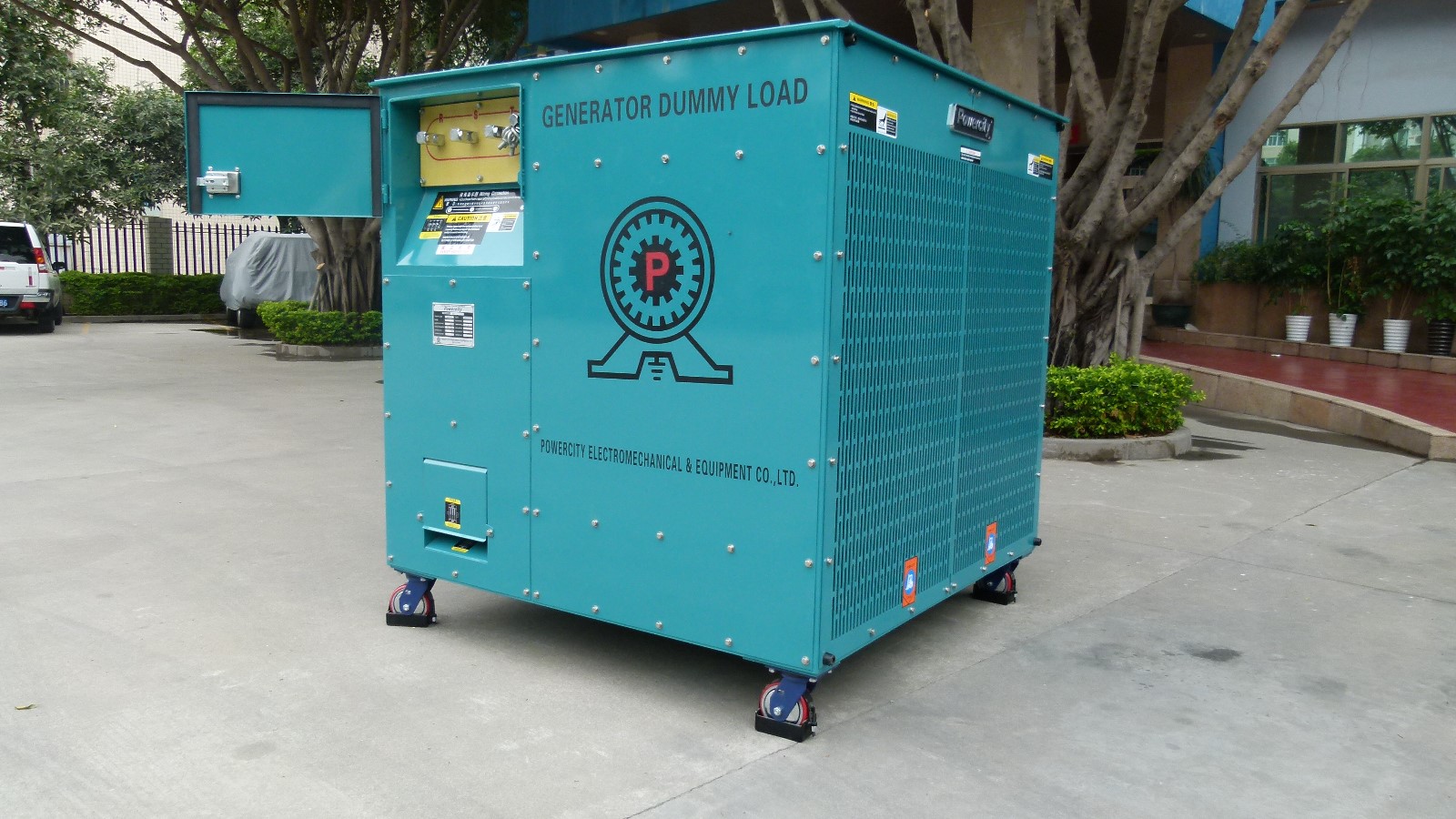

500kW Mobile Load Bank for Generator Testing
This mobile unit is designed for generator load testing, electrical, and marine load testing. The unit provides resistive load from 0 to maximum load, is convenient to use, and is easy to operate with step load bank variable adjustment.
Technical Specifications
Overview
High-Performance Mobile Load Bank
This 500kW mobile load bank is a robust and reliable solution designed for testing and verifying the performance of generators and power systems. It simulates real-world electrical loads, ensuring accurate assessment of generator capacity, stability, and response under various operational scenarios. With durable construction, precise load control, and integrated cooling, this unit is ideal for on-site commissioning, maintenance, and troubleshooting.
Technical Specifications
Rated Capacity
500 kW
Total Power
Load Steps
- 9
- 18
- 27
- 54
- 105
- 105
- 105
- 105
- Voltage Tolerance
- ±15% of rated voltage
- Frequency Compatibility
- 50Hz60Hz
Construction & Design
Enclosure Rating
NEMA 1
Mobility Features
- Four swivel caster wheels
- Forklift pockets
- Top-mounted lifting eyes
- Dimensions (LxWxH)
- 1580 x 1600 x 1470 mm
- Weight
- 1200 kg
Cooling & Elements
- Cooling System
- Horizontal Forced Air
- Resistor Elements
- Metal sheathed nickel resistance wire with cooling fins
Monitoring & Control
Metering Capabilities
- Amperage
- Voltage
- KVA
- KW
- Data logging
- PC connectivity
- Printing
