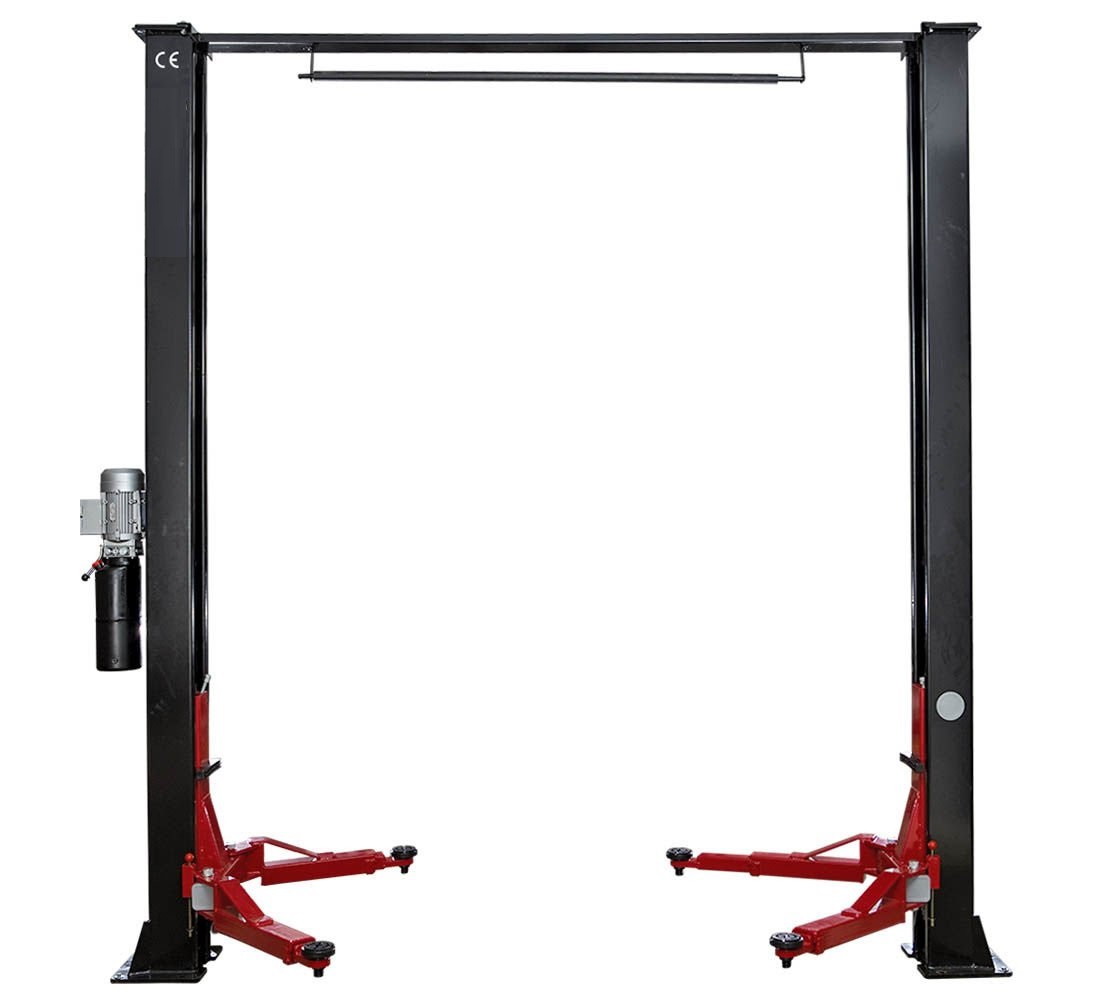

4T Two-Post Overhead Auto Hoist
This 4T two-post overhead auto hoist provides a robust lifting solution for automotive maintenance. Its overhead design maximizes workspace and enhances efficiency.
Technical Specifications
Overview
Robust Overhead Automotive Lifting
This 4-ton two-post overhead auto hoist is engineered for professional automotive maintenance and repair environments. Featuring a heavy-duty double 'S' column design and a reliable chain-drive hydraulic system, it ensures stable and efficient lifting performance. The overhead configuration maximizes workshop floor space, while comprehensive safety mechanisms like double-point locks and overload protection provide peace of mind for technicians.
Performance & Capacity
Lifting Capacity
4,000 kg
Weight Capacity
50 sec
Time to Full Rise
Arm Reach Specifications
| Arm Type | Reach Range |
|---|---|
| Front/Rear 3 Stage | 22 7/8" to 42 5/8" |
| Rear 2 Stage | 33 5/8" to 52 7/8" |
Dimensions
Physical Dimensions
- Overall Height: 3739mm
- Overall Width: 3370mm
- Column Inner Width: 2780mm
- Maximum Lift Height (w/ Truck Adaptor): 1930mm
- Minimum Arm Top Height: 100mm
Technical Details
- Power & Operation
- 220V380V/410V50Hz/60Hz2 Phase/3 Phase
- Drive System

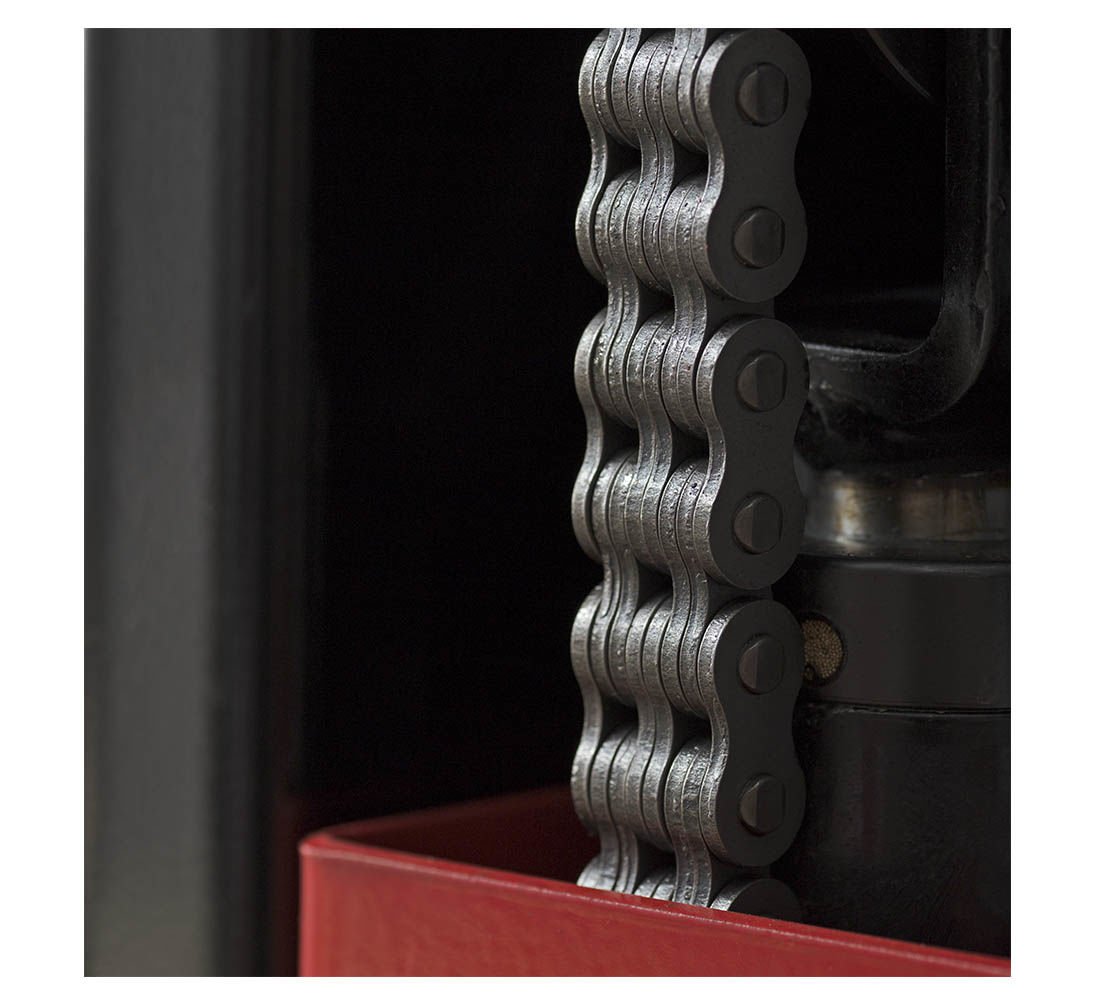

- Dual hydraulic cylinders, chain drive
Safety Features
Safety Systems
CE CertifiedDouble Point Lock ReleaseOverload Relief ValveArm RestraintsDoor GuardsUp-limit Switch
