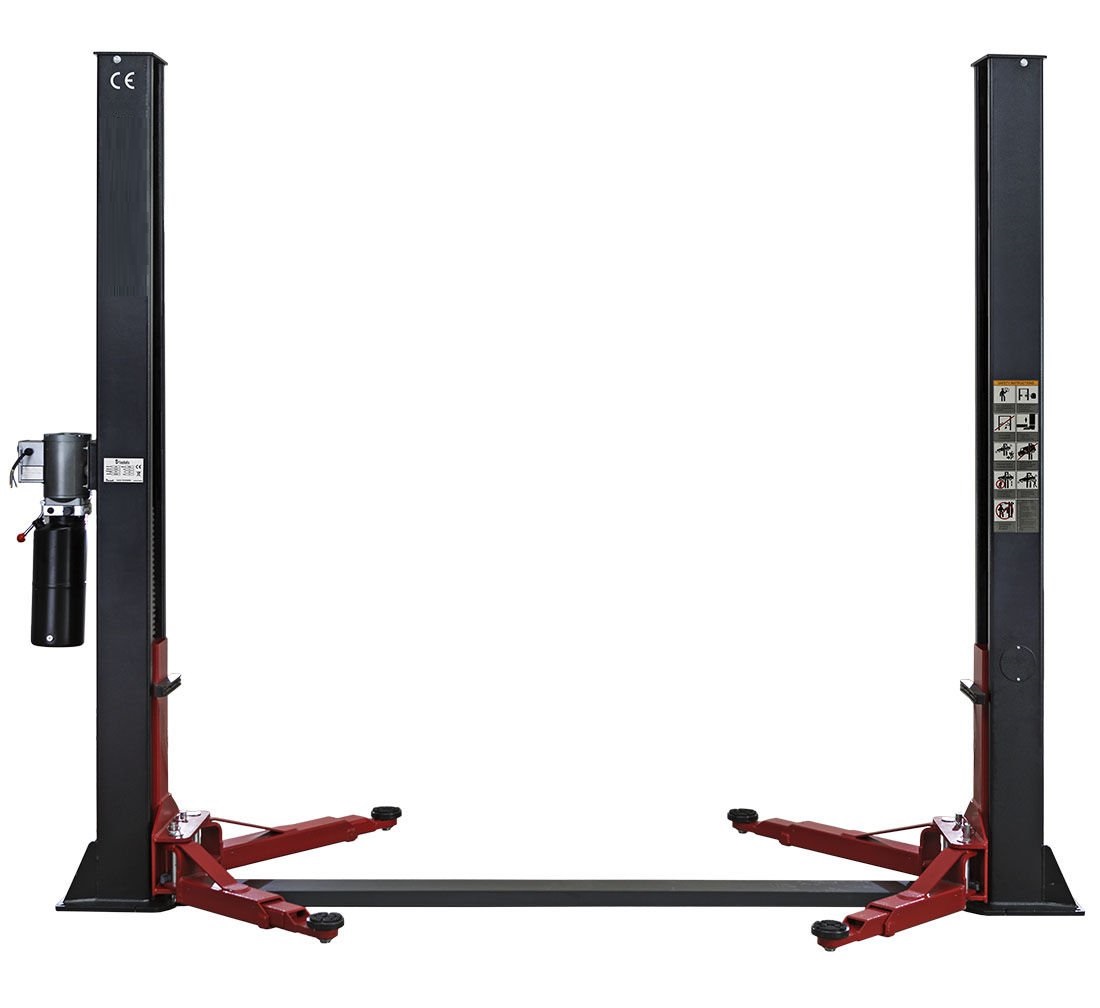

4T Two-Post Automotive Lift
This two-post car lift has a 4-ton lifting capacity for various vehicle models. It features a two-side safety unlock release mechanism for secure and controlled lowering.
Technical Specifications
Overview
Professional Automotive Lifting Solution
This 4-ton two-post automotive lift is engineered for stability and reliability in professional workshops. Featuring a dual-point safety lock release and automatic arm restraints, it ensures operator safety during every maintenance task. The system includes robust safety features like relief valves to prevent overloading and an up-limit switch to protect the cylinders, making it a dependable choice for servicing a wide range of vehicles.
Performance Metrics
Key Performance Metrics
4,000 kg
Lifting Capacity
1,930 mm
Max Lift Height
50 sec
Time to Full Rise
Technical Dimensions
Dimensions & Specifications
| Specification | Value |
|---|---|
| Overall Height | 2824 mm |
| Overall Width | 3370 mm |
| Column Width | 2780 mm |
| Minimum Height | 100 mm |
| Shipping Weight | 580 kg |
Safety & Features
Safety Features
- Double point safety lock release

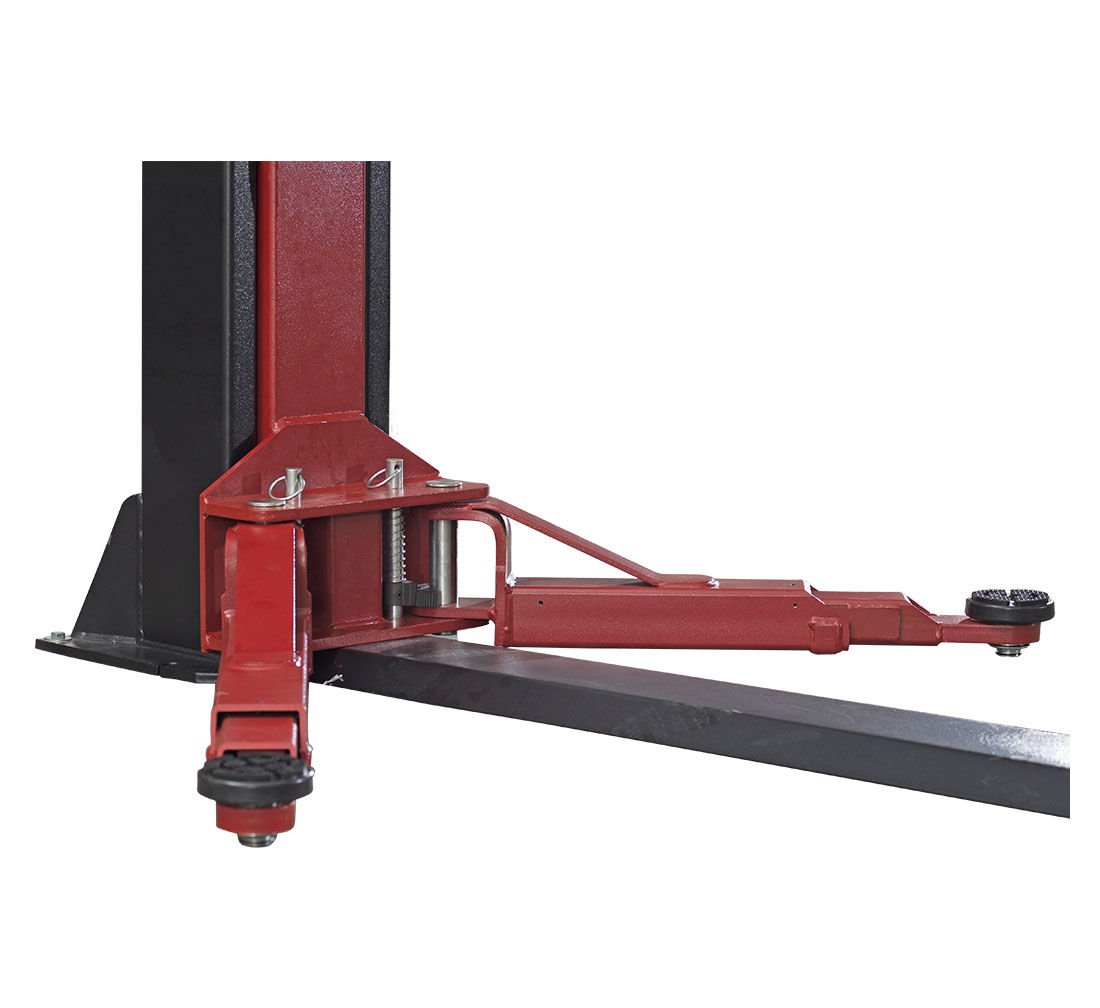

- Automatic arm lock restraints
- Relief valve built in power pump
- Up-limit switch for cylinder protection
- Door guards protection rubber
- Heavy duty cable and pulley system
Certifications
CE Certified
Installation & Logistics
- Unloading Requirements
- Forklift or Tractor is required from customer for unloading the product.
- Included Accessories
- Anchor boltsMounting hardwareTruck adapters (1 set)
