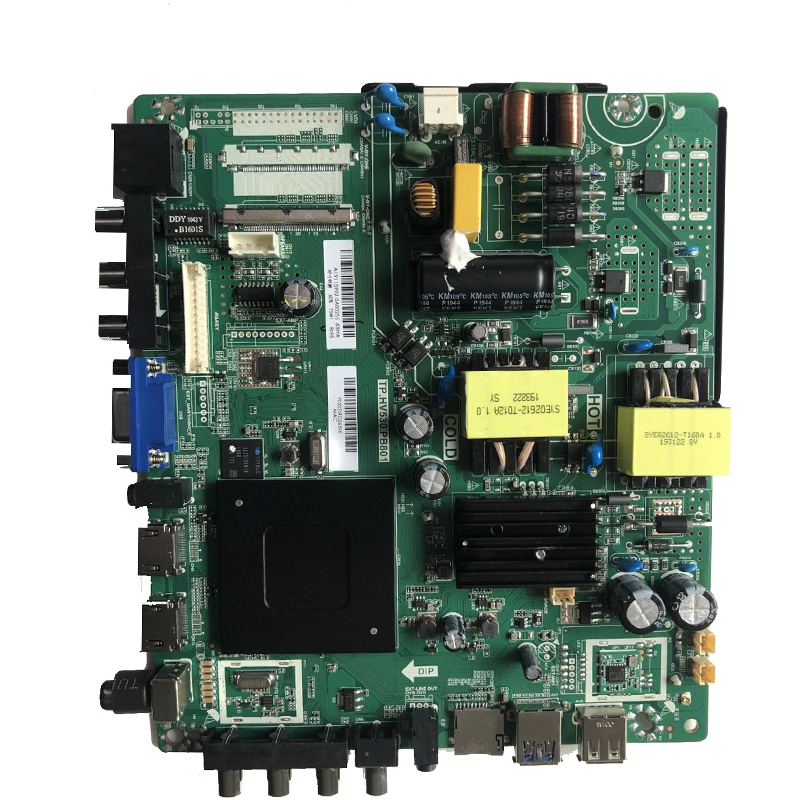

43-Inch LED TV Mainboard
This mainboard is designed for 43-inch LED televisions. It includes HDMI, USB, VGA, and AV connectors, along with power regulation circuitry and interfaces for connecting to the display panel.
Technical Specifications
Product Overview
High-Performance LED TV Mainboard
This integrated mainboard is designed specifically for 38.5 to 43-inch LED televisions, providing a comprehensive solution for display maintenance and assembly. It supports a Full HD resolution of 1920*1080, ensuring crisp and clear image processing for modern display panels. The board combines power regulation, signal processing, and multiple interface options into a single, efficient component.
Technical Specifications
Maximum Resolution
1,920 px
Horizontal Pixels
1,080 px
Vertical Pixels
- Compatible Screen Sizes
- 38.5-inch43-inch
Connectivity & Interface
Available Interfaces
- HDMI Port
- USB Port
- VGA Connector
- AV Connectors
- Antenna/RF Connector
Hardware Architecture
Model References
TP.HV530.PB801TP.MS358.PB801
Integrated Modules
- LED Driver Circuitry
- Signal Processing Unit
- Display Panel Interface
- Power Regulation
- Integrated power circuitry with isolated 'HOT' and 'COLD' sections
- Capacitor Thermal Rating
- 105
