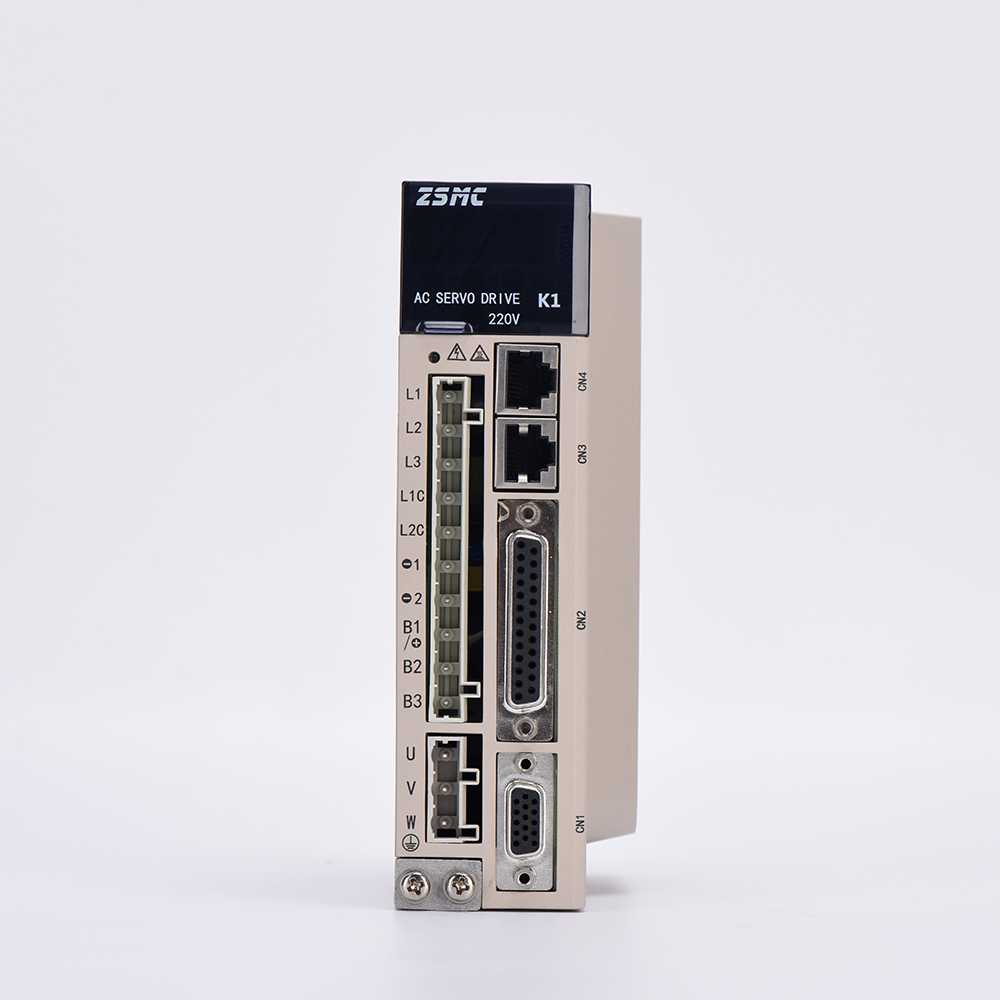

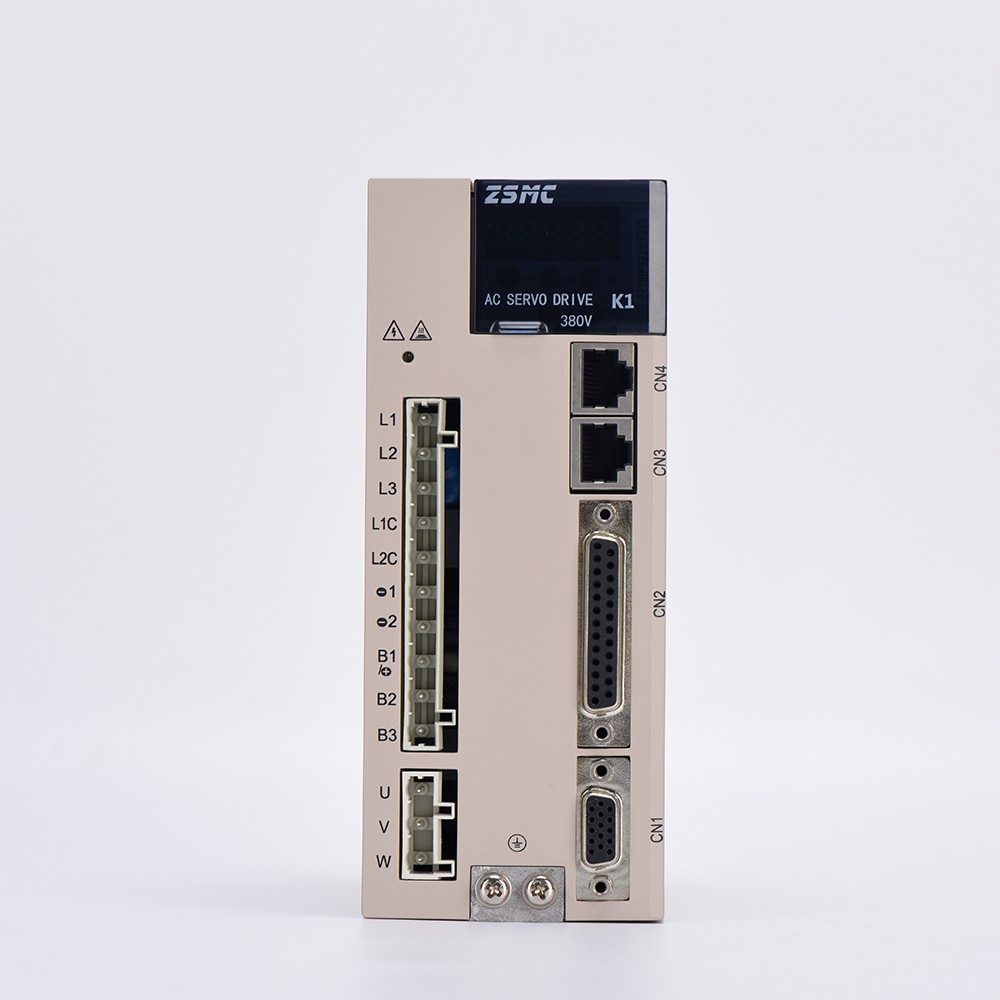

400W Pulse Servo Drive
This 400W servo drive offers intelligent control for precise motion in automation applications. It features mechanical resonance frequency analysis and frictional torque compensation for stable and reliable performance.
Technical Specifications
Overview
High-Performance Pulse Servo Drive
This 400W pulse servo drive provides high-precision motion control through advanced internal position modes and intelligent load inertial analysis. It ensures stable operation by utilizing mechanical resonance frequency analysis with adjustable trap filters to overcome vibrations. The drive supports flexible control configurations including pulse, analog, and CANopen communication, making it a reliable solution for various industrial automation and robotic applications.
Performance Metrics
Key Performance Indicators
400 W
Rated Power
3 x Torque
Overload Capacity
500 kHz
Differential Pulse Input
Control & Communication
Communication Protocols
CANopenModbus
- Supported Control Modes
- Position ControlSpeed ControlTorque ControlInner SpeedPosition/SpeedPosition/TorqueSpeed/Torque
Technical Specifications
Supported Input Power
- 220V Single/Three-Phase
- 380V Three-Phase
Protection Features
- Over-current protection
- Over-voltage protection
- Over-temperature protection
- Mechanical resonance suppression
Environment
- Operating Temperature Range
- 0 to 45°C
- Operating Humidity
- 20-85% RH (non-condensing)
