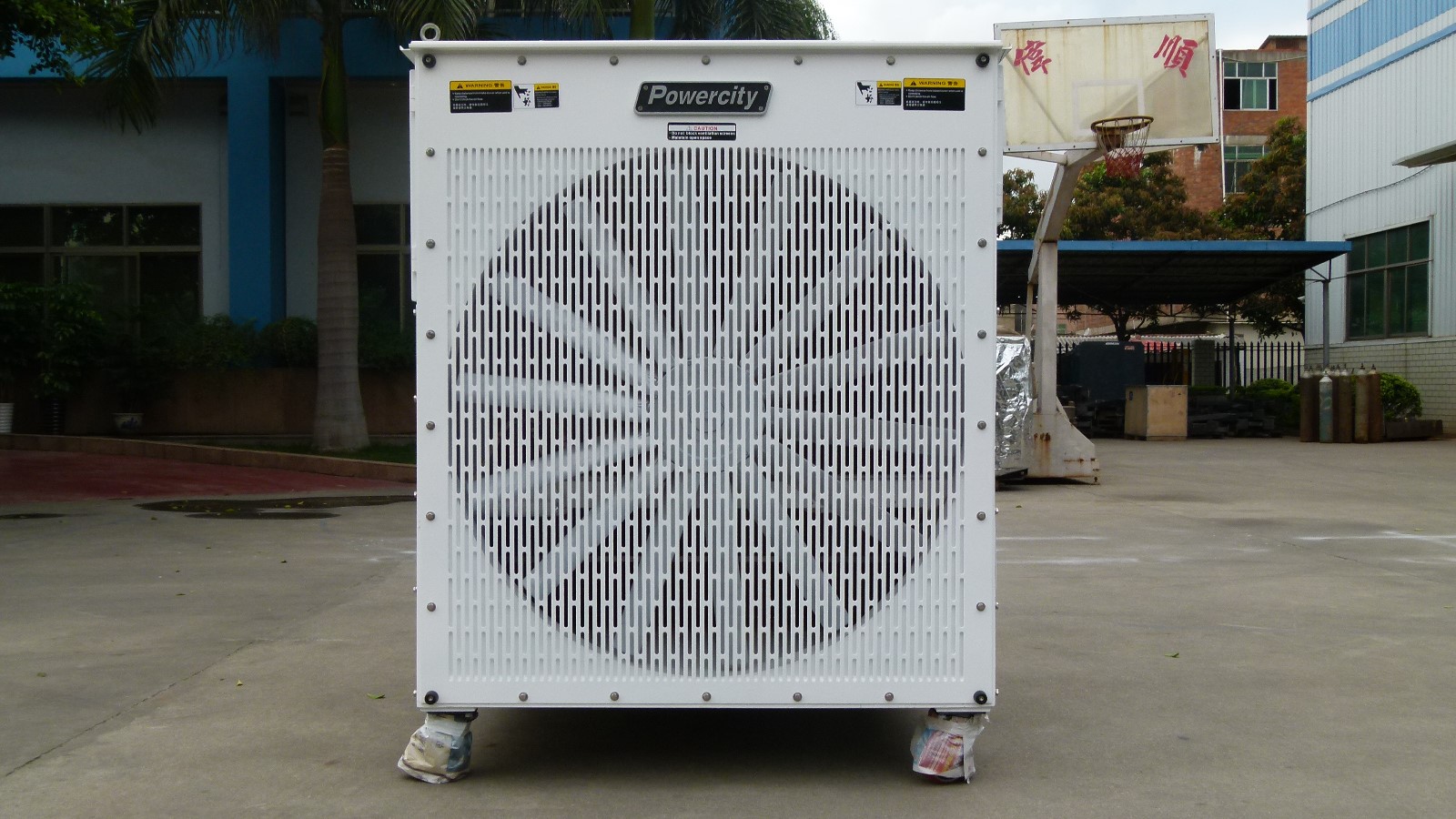

400kW Mobile Load Bank for Generator Testing
This mobile unit is designed for easy use during generator, electrical, and marine load testing. It features a U-type heating element with cooling fins, allowing for continuous operation.
Technical Specifications
Overview
Professional Mobile Load Testing Solution

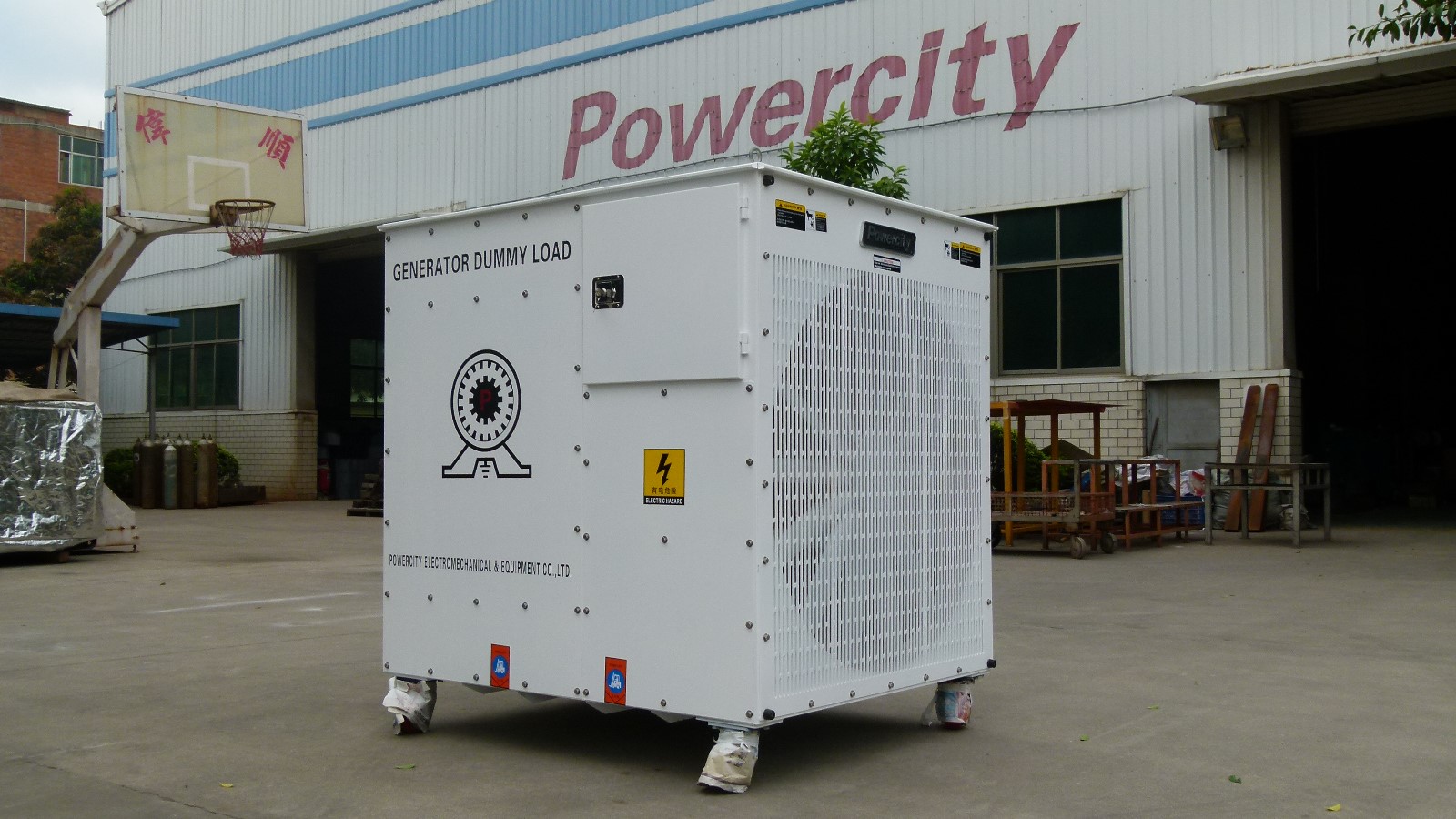

This 400kW mobile load bank is engineered for rigorous generator, electrical, and marine load testing applications. Featuring a robust, portable design with swivel caster wheels and lifting eyes, it is suitable for both indoor and outdoor environments. The unit utilizes advanced U-type or in-line heating elements with cooling fins, ensuring continuous operation even within assembly plants.
Performance Metrics
Rated Load Capacity
400 kW
Maximum Load
- Load Adjustment
- 8 steps including a Variac
Electrical Specifications
- Voltage Rating
- 180-240V / 380-440V
- Phase Configuration
- Single or Three Phase
- Operating Frequency
- 50Hz60Hz
- Voltage Tolerance
- Up to ±15% of rated voltage
Physical Characteristics
Enclosure Rating
NEMA 1
- Dimensions
- 1360 x 1270 x 1470 mm
- Weight
- 1200 kg
Operational Features
Digital Metering Capabilities
- Line Voltage
- Line Ampere
- Frequency
- Power Measurements
- Power Factor (Optional)
- Cooling System
- Horizontal forced air cooling with 9 AC axial fan blowers
- Max Ambient Operation Temperature
- 55 °C

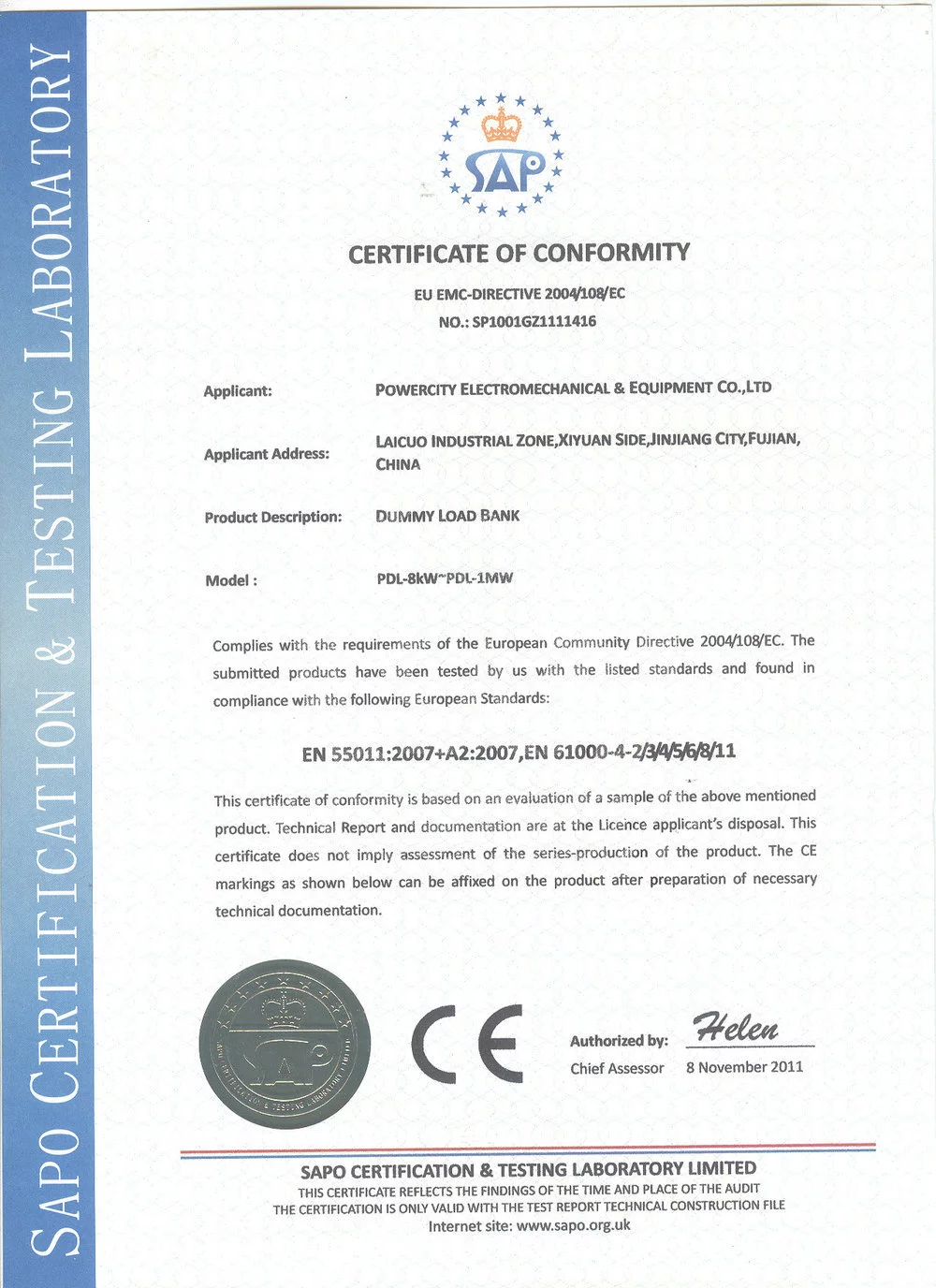

Compliance
- Standards Compliance
- EN 55011:2007+A2:2007EN 61000-4-2/3/4/5/6/8/11CE Certified
