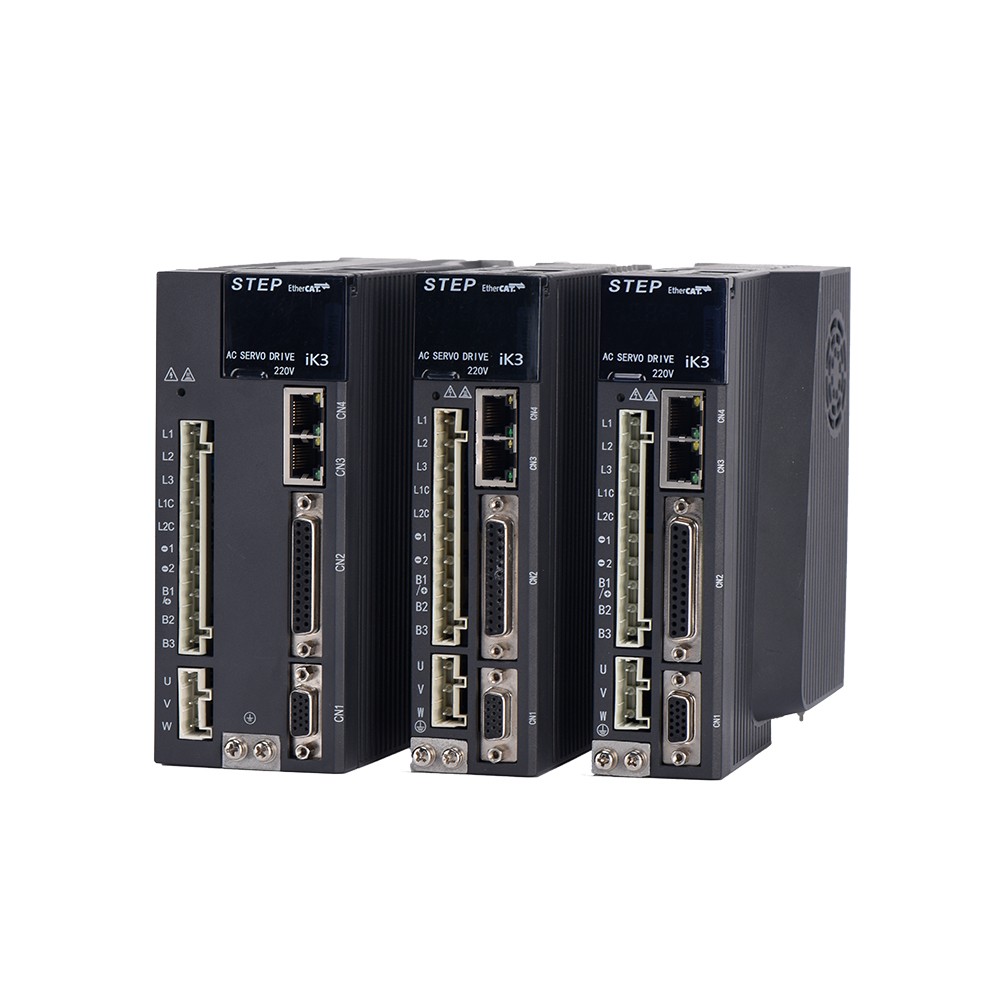

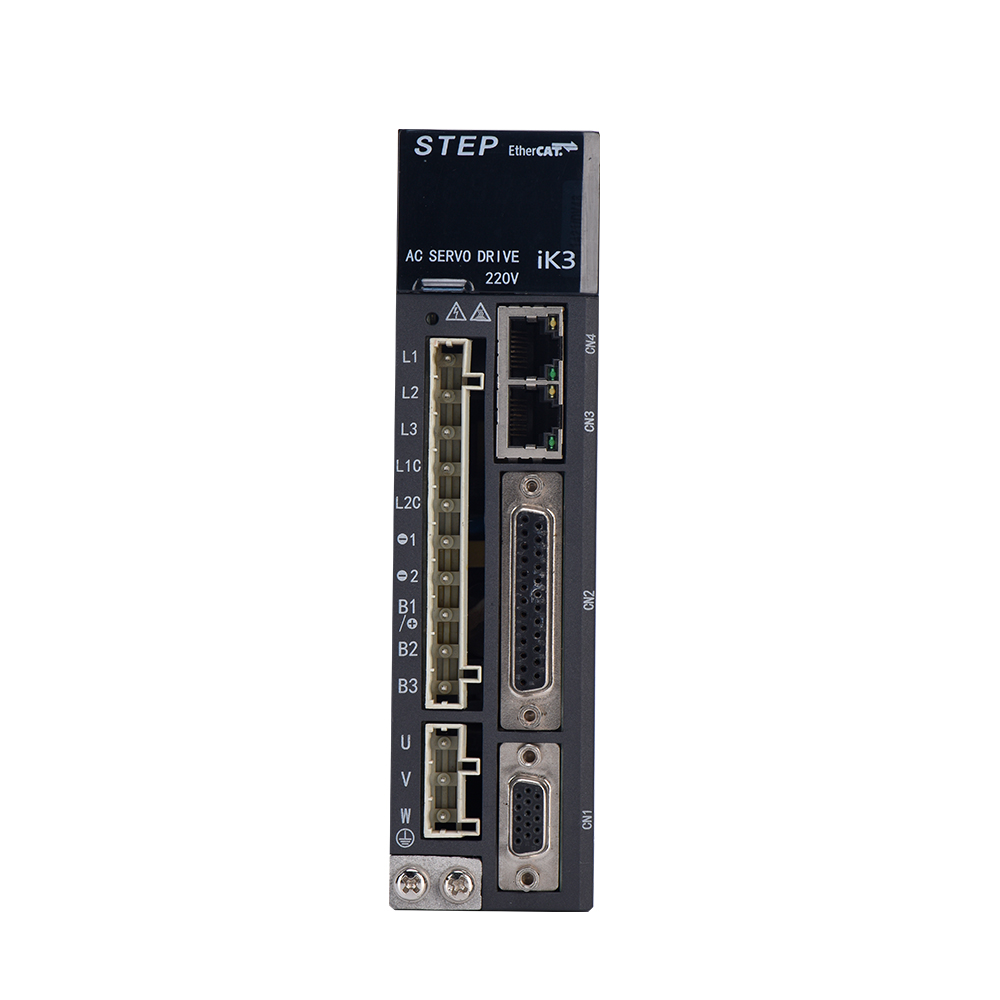

3kW Universal Bus Servo Drive
This 3kW servo drive supports universal bus communication for seamless integration. It offers high performance with EtherCAT protocol and adaptability for various mechanical structures.
Technical Specifications
Overview
High-Performance Universal Bus Servo Drive
This 3kW universal bus servo drive is engineered for precision motion control in demanding industrial environments. It features advanced control algorithms, including a speed loop frequency response exceeding 1.6 kHz and a current loop frequency response over 2.5 kHz, ensuring superior operational stability. With built-in EtherCAT communication and robust safety protocols like SS1, SS2, and SBC, this drive offers both high-speed performance and reliable integration for complex mechanical systems.
Technical Metrics
Key Performance Metrics
3 kW
Rated Power
16 A
Rated Current
2.5 kHz
Current Loop Frequency Response
1.6 kHz
Speed Loop Frequency Response
Control & Accuracy
- Bus synchronization accuracy < 0.1us
- 23-bit absolute encoder support
- 16-bit current sampling accuracy
- Advanced jitter and resonance suppression
- Kalman observation algorithm
Connectivity & Protocol
- Communication Protocols
- EtherCATCANopen
Safety & Environment
Safety Standards
SS1SS2SBC
Operating Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -20 to 65°C |
| Humidity | 20-85% RH (Non-condensing) |
| Max Altitude | 1000m |
