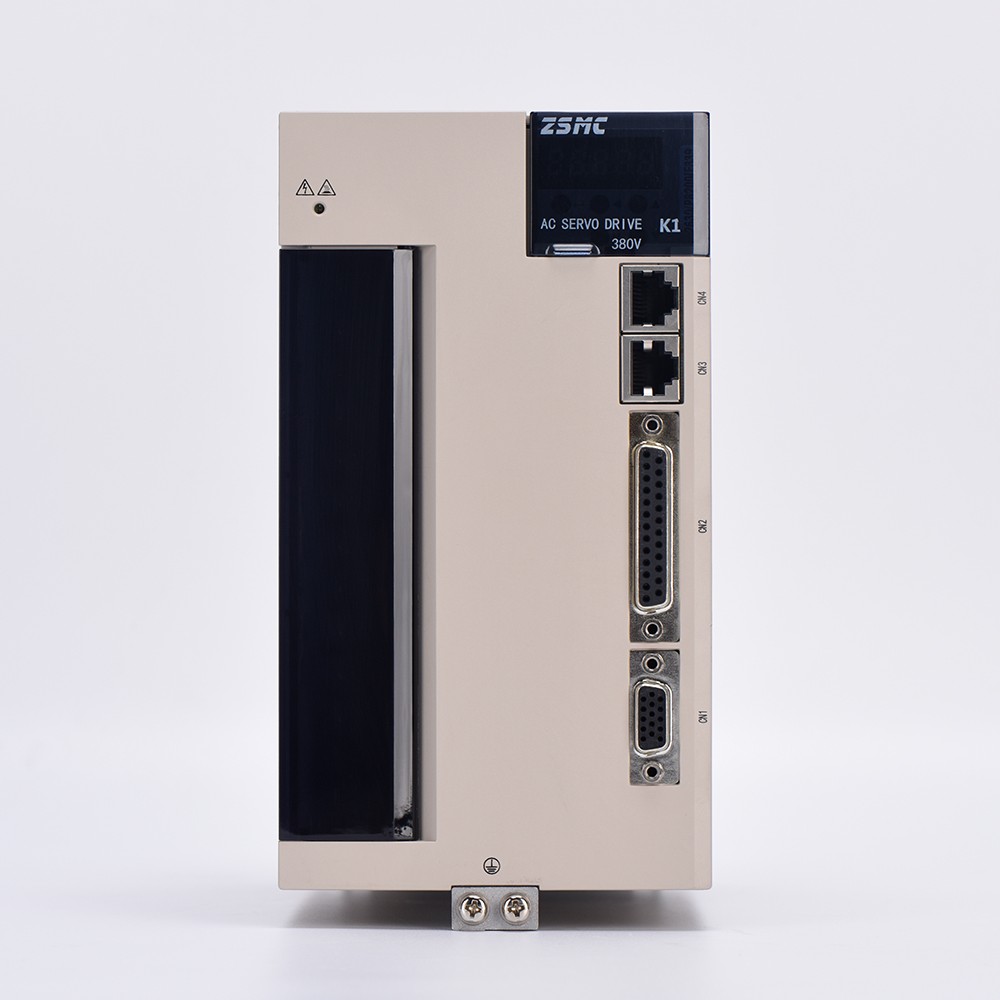

3kW Pulse Servo Drive
This 3kW pulse servo drive is designed for precise motion control applications. It features mechanical resonance frequency analysis and multi-bus support.
Technical Specifications
Product Overview
High-Performance 3kW Pulse Servo Drive
This advanced pulse servo drive is engineered for precision motion control, featuring intelligent internal position modes that support multi-path planning for up to 32 data sets. It offers high operational stability through mechanical resonance frequency analysis and dual trap filter configurations to mitigate vibrations. Designed for versatility and ease of use, it supports multi-bus communication including CANopen and provides intuitive debugging software for streamlined commissioning.
Technical Specifications
Input Power
- 220V Single/Three-Phase AC
- 380V Three-Phase AC
- Rated Power
- 3 kW
- Control Modes
- PositionSpeedTorqueInternal SpeedPosition/SpeedPosition/TorqueSpeed/Torque
- Communication
- ModbusCANopen
Performance Features
Key Performance Indicators
3 x
Torque Overload Capacity
500 kHz
Differential Pulse Input
5 Hz
Vibration Frequency
Advanced Functionality
- Mechanical resonance frequency analysis
- Frictional torque compensation
- Automatic load inertia determination

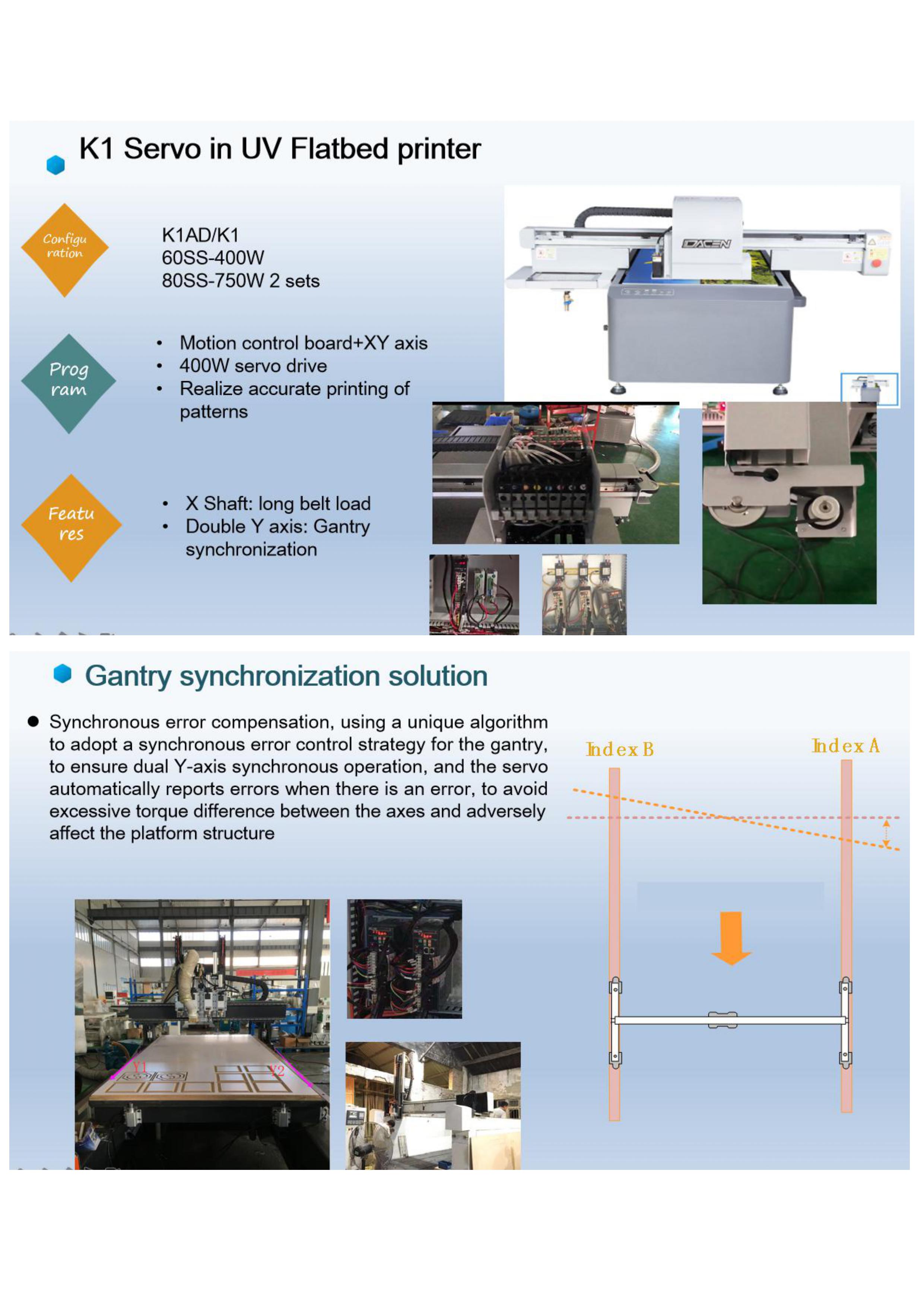

- Gantry synchronization algorithm
- One-button calibration
Environmental Requirements
Environmental Specs
| Parameter | Value |
|---|---|
| Operating Temp | 0-45°C |
| Storage Temp | -20-65°C |
| Humidity | 20-85% RH (Non-condensing) |
| Max Altitude | 1000m |
