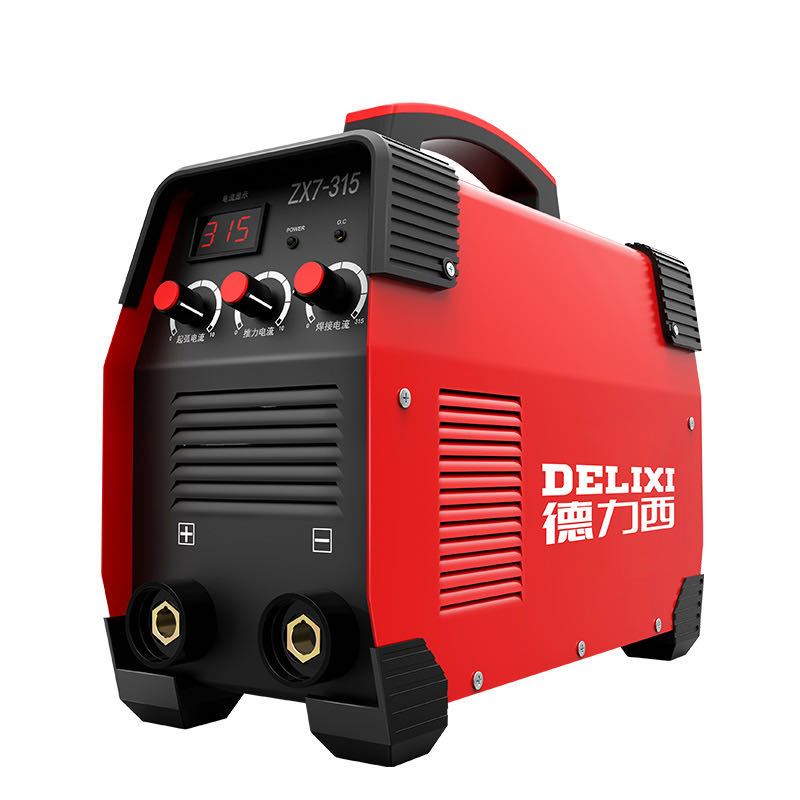

315A Single-Board IGBT Inverter MMA Welder
This MMA welder features advanced IGBT inverter technology for low consumption and high output. Digital control improves reliability, ensuring smooth and stable welding performance.
Technical Specifications
Product Overview
High-Performance IGBT Inverter MMA Welder
This 315A welding machine utilizes advanced IGBT inverter technology to deliver high output with low power consumption. Designed for versatility, it automatically adapts to 220V or 380V power grids and supports all types of acid and alkaline electrodes. The digital control system and high-speed cooling fan ensure stable performance, a high duty cycle, and comprehensive protection against over-current or over-heating.
Key Performance Metrics
Performance Highlights
315 A
Max Rated Current
85 %
Efficiency
70 V
No-Load Voltage
30 %
Duty Cycle
Technical Specifications
Electrical Parameters
| Parameter | Value |
|---|---|
| Input Voltage | AC220V/380V±15% |
| Frequency | 50/60 Hz |
| Rated Input Current | 26.1 A |
| Rated Input Capacity | 5.45 KVA |
| Current Adjustment Range | 20-140 A |
| Power Factor | 0.7 |
Core Features
Advanced Features
- Advanced IGBT inverter technology
- Digital control for improved reliability
- Automatic 220V/380V power grid adaptation
- High no-load voltage for smooth arc starting
- Minimal spatter performance
- High-speed fan for effective heat dissipation
- Built-in over-current and over-heat protection
Physical Properties
- Product Dimensions
- 150mm x 230mm x 365mm
- Internal Configuration
- Single board with 8 capacitors
Applications
- Compatible Electrodes
- Acid ElectrodesAlkaline ElectrodesMMA Welding
