30mm Industrial Buzzer with Push Button
This 30mm industrial buzzer is designed for push-button activation, providing a distinct sound for signaling purposes. It is suitable for various industrial applications requiring audible alerts.
Technical Specifications
Overview
High-Performance Industrial Signaling
The AD22-30MFD is a robust 30mm industrial buzzer designed for reliable sound signaling in demanding environments such as manufacturing, automation, and safety systems. Utilizing advanced LED technology, it offers high brightness, low power consumption, and a significantly longer lifespan compared to traditional incandescent lamps. Its durable polycarbonate construction and bolt-type connectors ensure both safety and ease of installation for professional B2B applications.
Technical Performance
Key Performance Metrics
2.5 kV
Working Frequency Voltage
20 mA
Rated Current
2 MΩ
Insulation Resistance
Electrical Specifications
- Supported Voltages
- 24V AC/DC36V AC/DC48V AC/DC110V AC220V AC230V AC
- Voltage Wave Allowance
- ±20%
Physical Dimensions

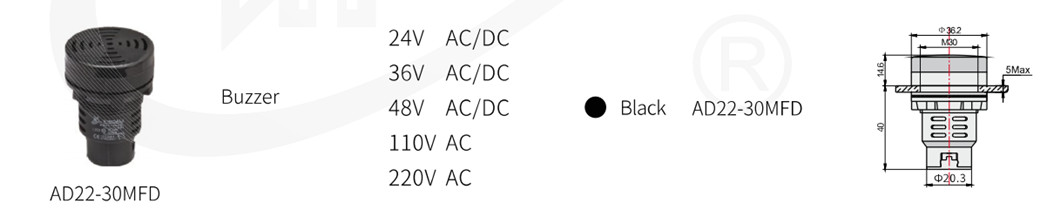

Mounting Dimensions
| Dimension Type | Value |
|---|---|
| Mounting Diameter | 30mm (M30) |
| Top Diameter | 36.2mm |
| Base Diameter | 20.3mm |
| Overall Height | 40mm |
| Visible Height (Above Panel) | 14.6mm |
| Max Panel Thickness | 5mm |
Compliance & Standards
Standards Compliance
CEIEC947-5-1EN60947-5-1
Application Areas
Recommended Industries
- Electrical Power Systems
- Telecommunications
- Machine Tools
- Watercraft & Marine
- Textile Machinery
- Printing Equipment
- Mining Machinery
Construction Materials
Material Properties
- High-intensity Polycarbonate lampshade
- Anti-surge performance
- Bolt-type safety connectors
- Lightweight compact design
