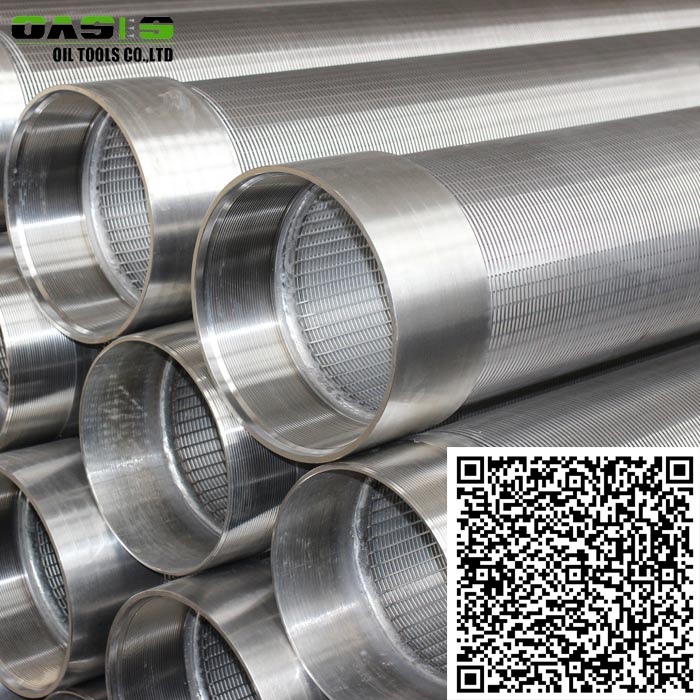

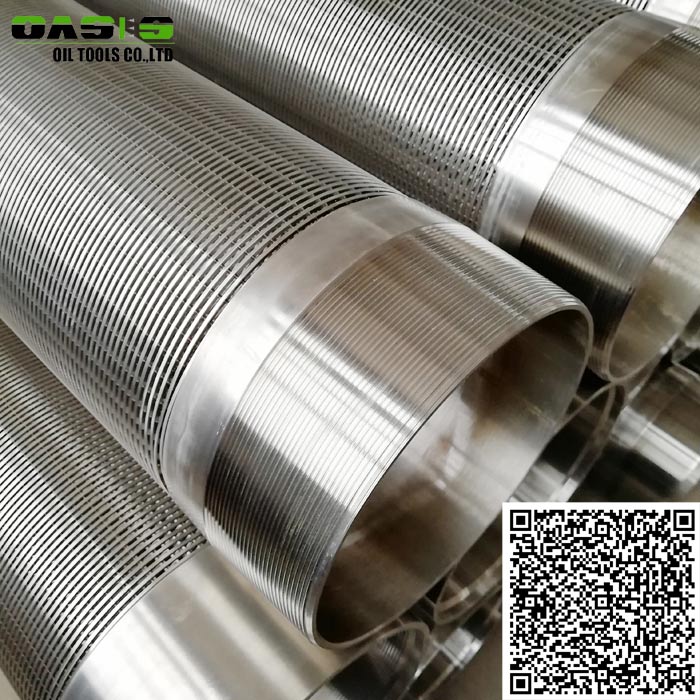

304L Stainless Steel Wire-Wrapped Well Screen
These 304L stainless steel well screens feature a wire-wrapped design for filtration. Their construction ensures resistance to corrosion and mechanical stress for long-lasting performance.
Technical Specifications
Product Overview
Professional Grade Well Filtration
These wire-wrapped well screens utilize a high-precision wedge-shaped wire design welded onto longitudinal support rods to provide superior structural integrity. By creating a continuous slot opening, these screens maximize water or oil intake efficiency while effectively preventing sand and gravel ingress. Engineered for durability, the 304L stainless steel construction offers excellent resistance to corrosion, making them suitable for demanding water, oil, and gas well environments.
Technical Specifications
- Slot Size
- 0.1 - 3.0 mm
- Maximum Open Area
- 60 %
- Diameter Range
- 25 - 1500 mm
- Maximum Unit Length
- 6 meters
Material and Construction
Key Features
- Wedge-shaped wire profile
- Fusion welded intersections
- Continuous slot design
- Corrosion-resistant coating options
- Available Materials
- 304L Stainless Steel316L Stainless SteelLow Carbon SteelGalvanized Steel
