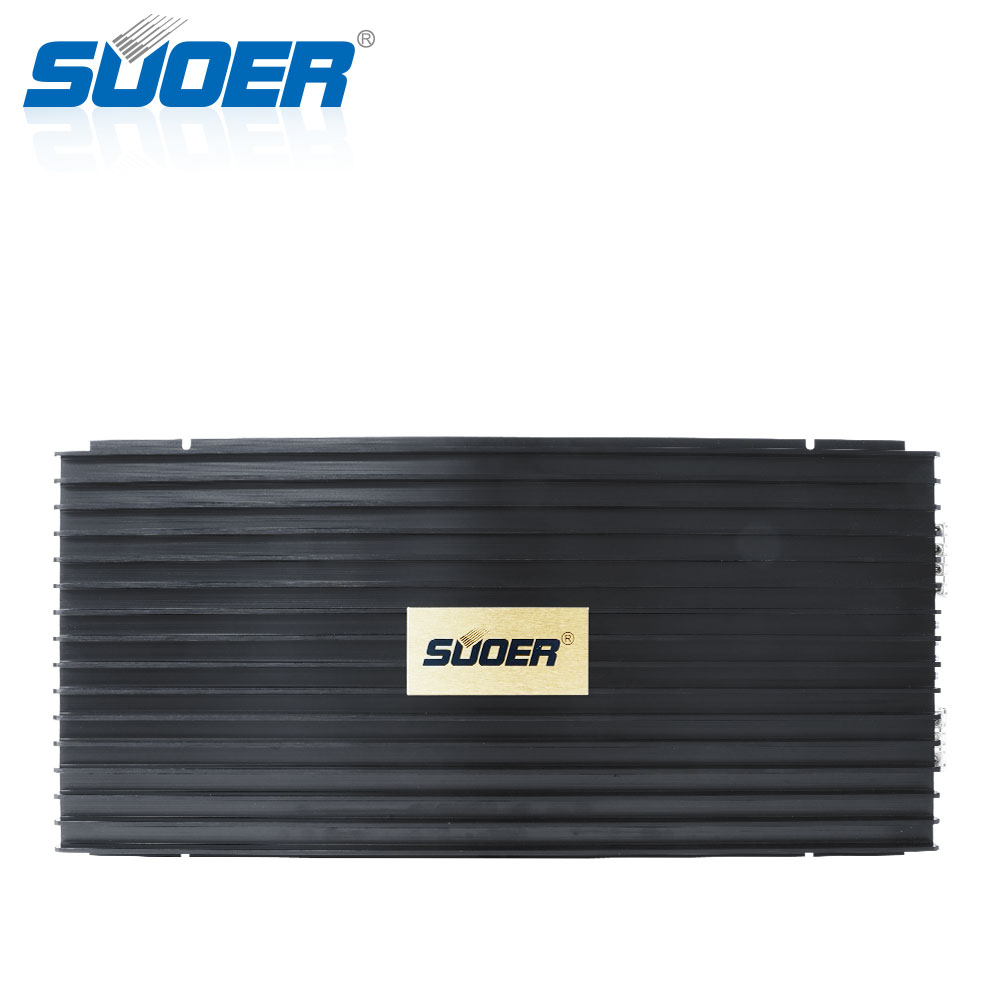

3000W Class AB Full Frequency Car Amplifier
This is a full frequency channel 3000W Class AB car amplifier. It is designed to enhance car audio systems with amplified sound.
Technical Specifications
Overview
High-Performance Class AB Car Amplifier
The CD-1000.1-D is a high-power full-frequency mono power amplifier designed to deliver exceptional audio clarity and power to vehicle sound systems. Utilizing a Class AB design, it balances efficient power delivery with high-fidelity reproduction, offering up to 3000W maximum output. Its robust thermal management and comprehensive protection circuitry ensure reliable performance for professional car audio installations.
Power Performance
RMS Power Output
350 W
RMS Power @ 4 Ohms
650 W
RMS Power @ 2 Ohms
1,000 W
RMS Power @ 1 Ohm
Audio Specifications
- Frequency Response
- 10Hz - 47kHz
- Signal-to-Noise Ratio
- >92dB
- THD + Noise
- <0.01%
- Variable Input Level
- 0.2V - 6V
Filter Controls
High Pass Frequency Range
- 20Hz - 120Hz
- 120Hz - 700Hz
- 700Hz - 4.1kHz
Low Pass Frequency Range
- 50Hz - 215Hz
- 215Hz - 925Hz
- 925Hz - 4kHz
- Bass Boost
- 0dB - 12dB
Physical Characteristics
- Dimensions
- 502 x 225 x 60 mm
- Net Weight
- 5.33 kg

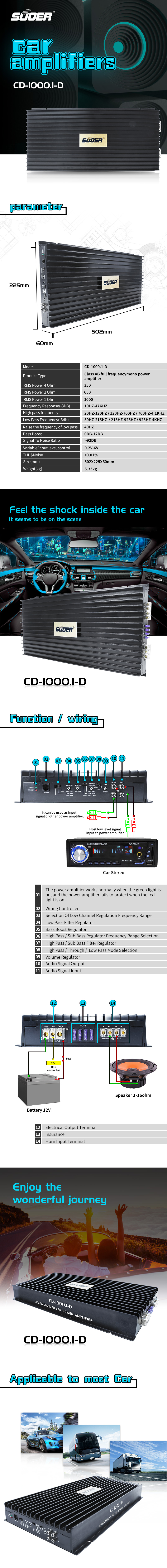

Connectivity & Controls
Status Indicators
Green Light: Normal OperationRed Light: Protection Mode
- Interface & Controls
- Wiring ControllerLow Pass Filter RegulatorHigh Pass/Sub Bass RegulatorMode SelectionVolume RegulatorAudio Signal OutputHorn Input Terminal
