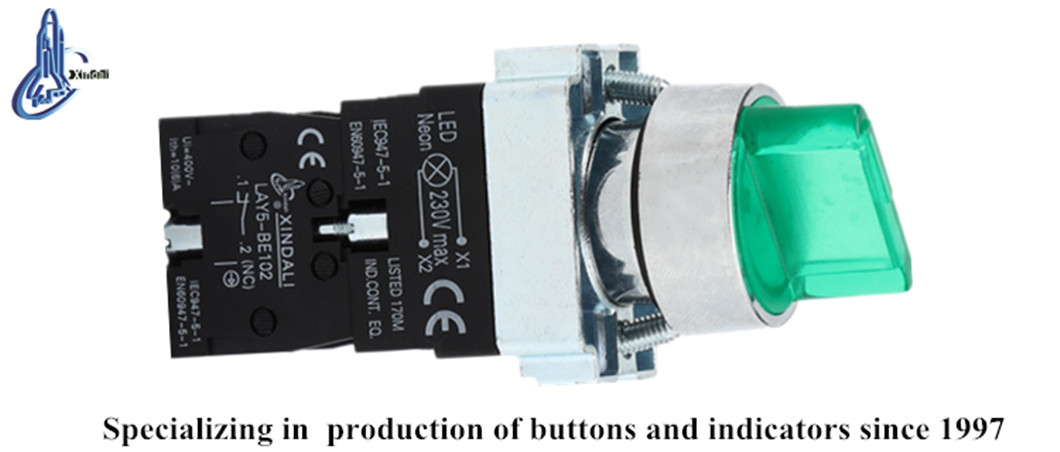

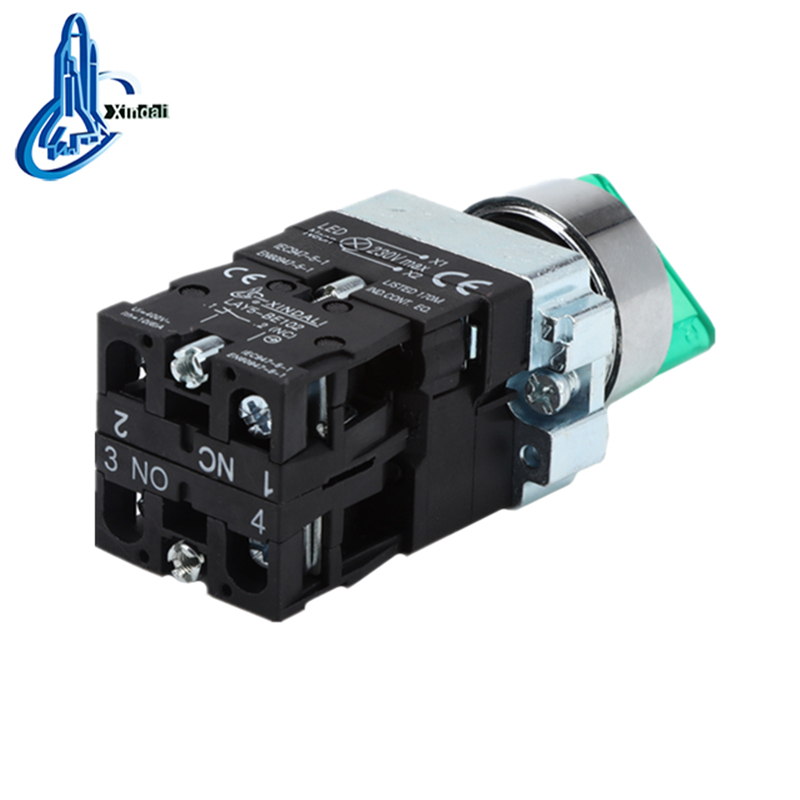

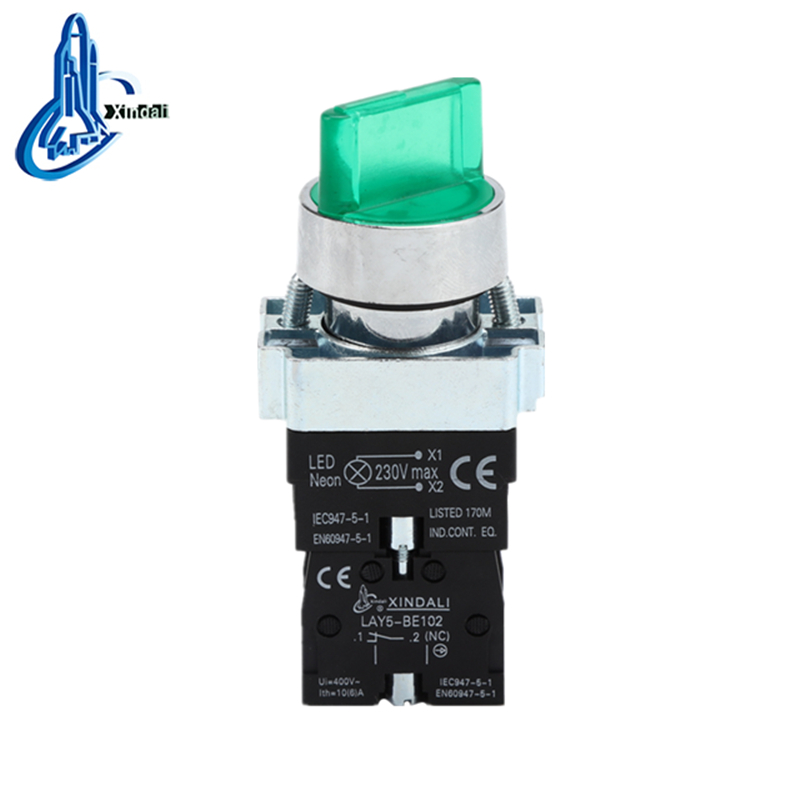

3-Position Selector Switch with 120V LED Indicator
This 3-position selector switch is equipped with a 120V LED indicator. It can be used as a selector switch or a push-button with spring return functionality.
Technical Specifications
Overview
Industrial Control Selector Switch
This 3-position selector switch is engineered for reliable performance in industrial control circuits. Constructed with a durable zinc alloy and high-grade anti-flame plastic body, it is designed to withstand harsh environments while providing precise control. The unit includes an integrated 120V LED indicator for clear status visualization and utilizes a spring-return mechanism for consistent, responsive operation.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
Performance Metrics
Mechanical Life
500,000 cycles
Selector Switch Cycles
Electrical Life
250,000 cycles
Selector Switch Cycles
- Continuous Working Life
- 100000 h
Indicator Specifications
- LED Brightness
- 60 cd/m²
Compliance
Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO 9001RoHSUL
