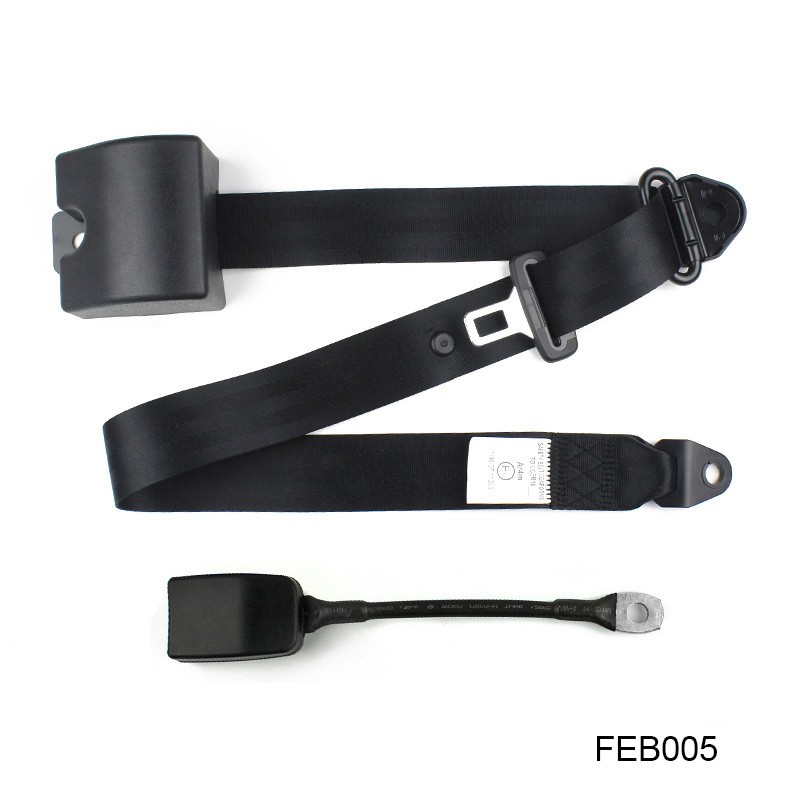

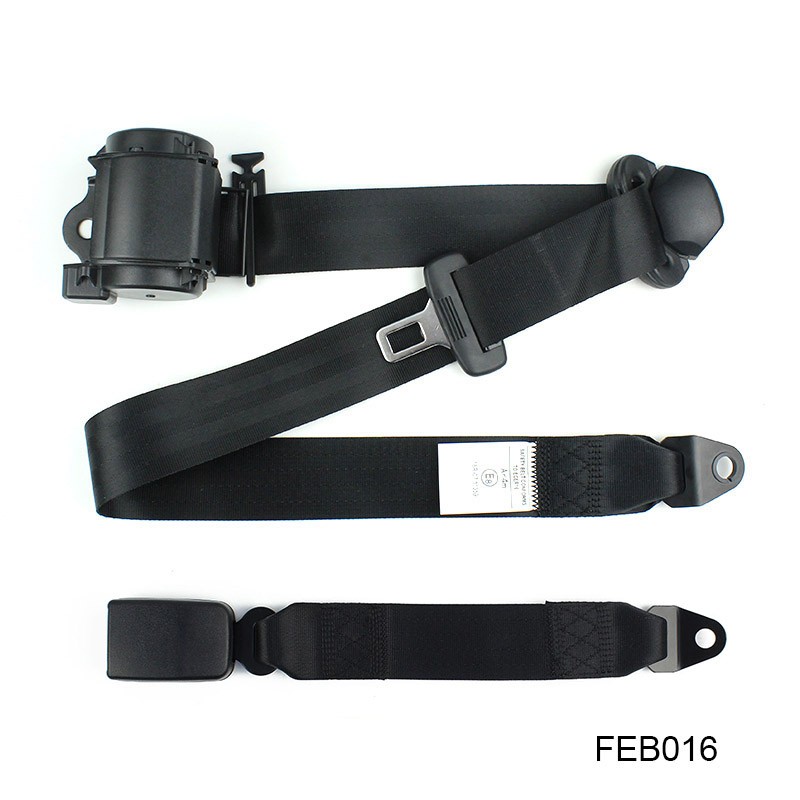

3-Point Retractable Car Safety Belt
This safety belt is a retractable 3-point design, suitable for use as a lap and shoulder restraint. It features a plastic push-button buckle and adjustable hardware for secure and comfortable use in cars, trucks, and vans.
Technical Specifications
Product Overview
Universal 3-Point Retractable Safety Solution
This 3-point Emergency Locking Retractor (ELR) seatbelt is designed for universal fitment across cars, trucks, buses, and engineering vehicles. Featuring heavy-duty polyester webbing and a quick-release plastic push-button buckle, it provides a secure and adjustable restraint system for both driver and passenger positions. The retractable mechanism ensures a tidy interior and automatic length adjustment for optimal occupant safety.
Technical Specifications
Key Dimensions
3,200 mm
Total Length
47 mm
Webbing Width
1.1 mm
Webbing Thickness
Compliance & Quality
- Safety Certifications
- ISO9001: 2015DOTCCCECE R16FMVSS 302E8Ar4m
Material & Design
Standard Color
Black
Hardware Features
- Quick release camlock
- Plastic push button buckle
- Fully adjustable hardware
- Heavy-duty nylon straps
- Webbing Material
- High-strength Polyester
Application
Compatible Vehicles
- Passenger Cars
- Commercial Buses
- Heavy Duty Trucks
- Engineering Vehicles
Installation Options

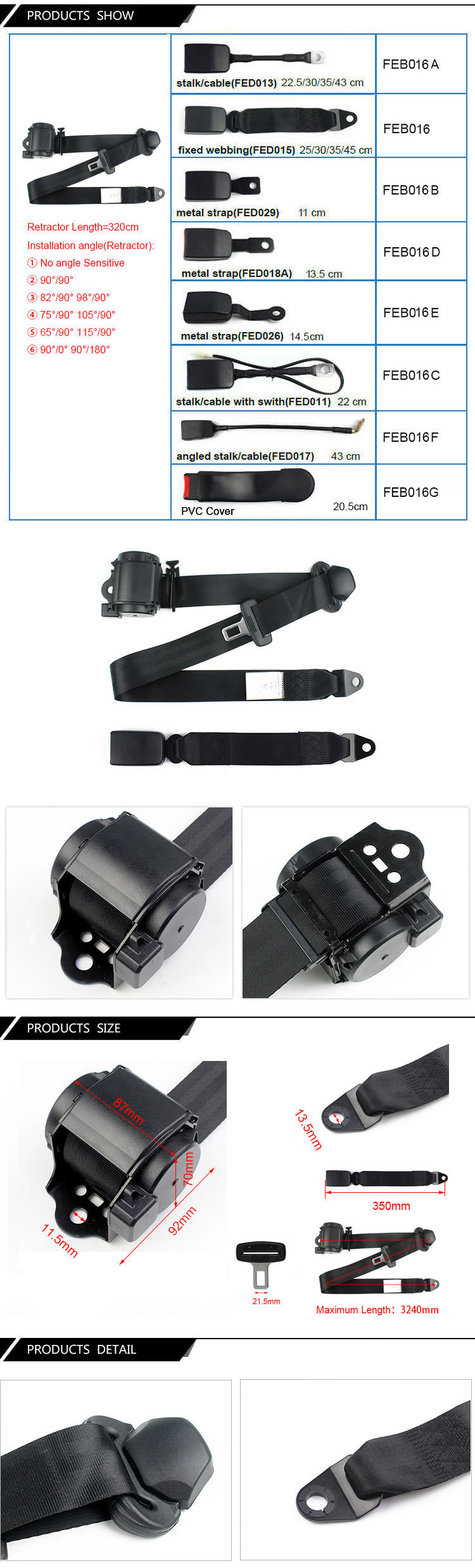

Retractor Installation Angles
- No angle sensitive
- 90°/90°
- 82°/90° or 98°/90°
- 75°/90° or 105°/90°
- 65°/90° or 115°/90°
- 90°/0° or 90°/180°
Logistics
Order & Shipping
| Parameter | Requirement |
|---|---|
| Minimum Order Quantity | 50 pcs |
| Delivery Lead Time | 20 Days |
| Shipping Method | Express |
| Loading Ports | Ningbo / Shanghai |
| Packaging | Neutral or Custom |
