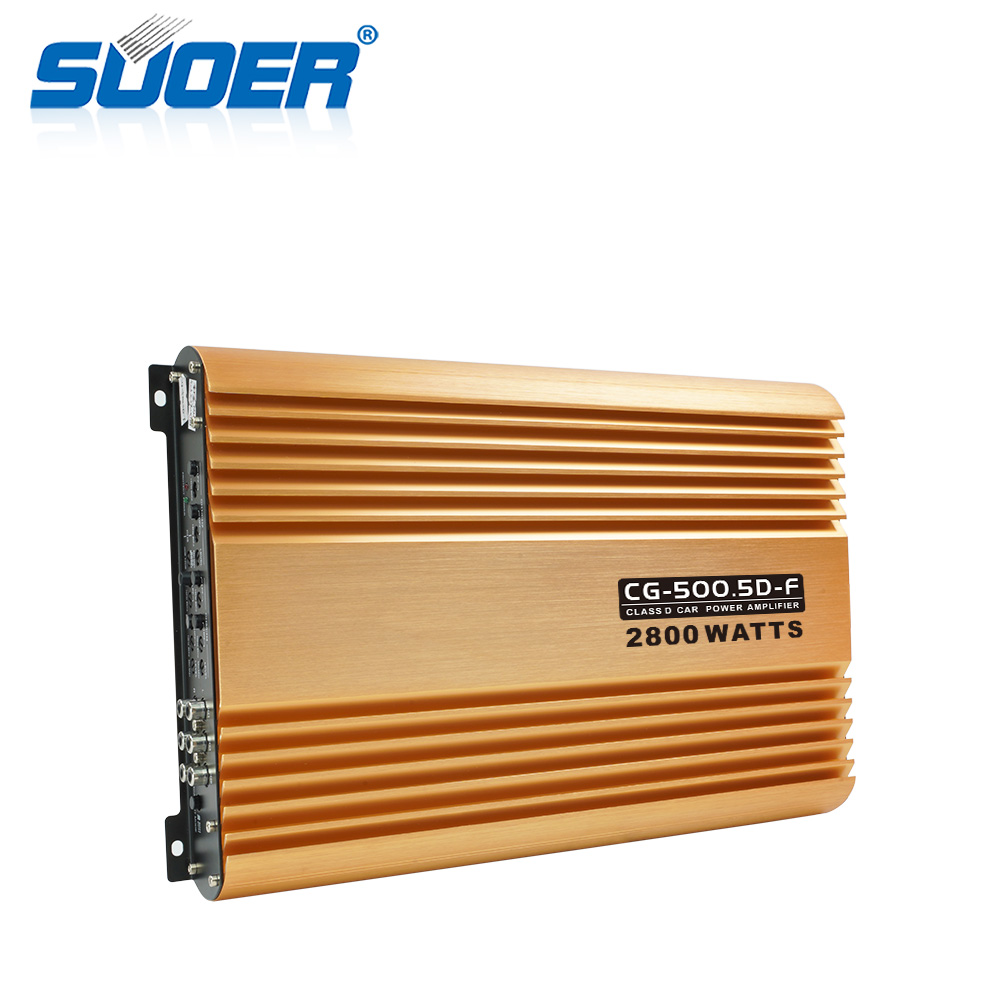

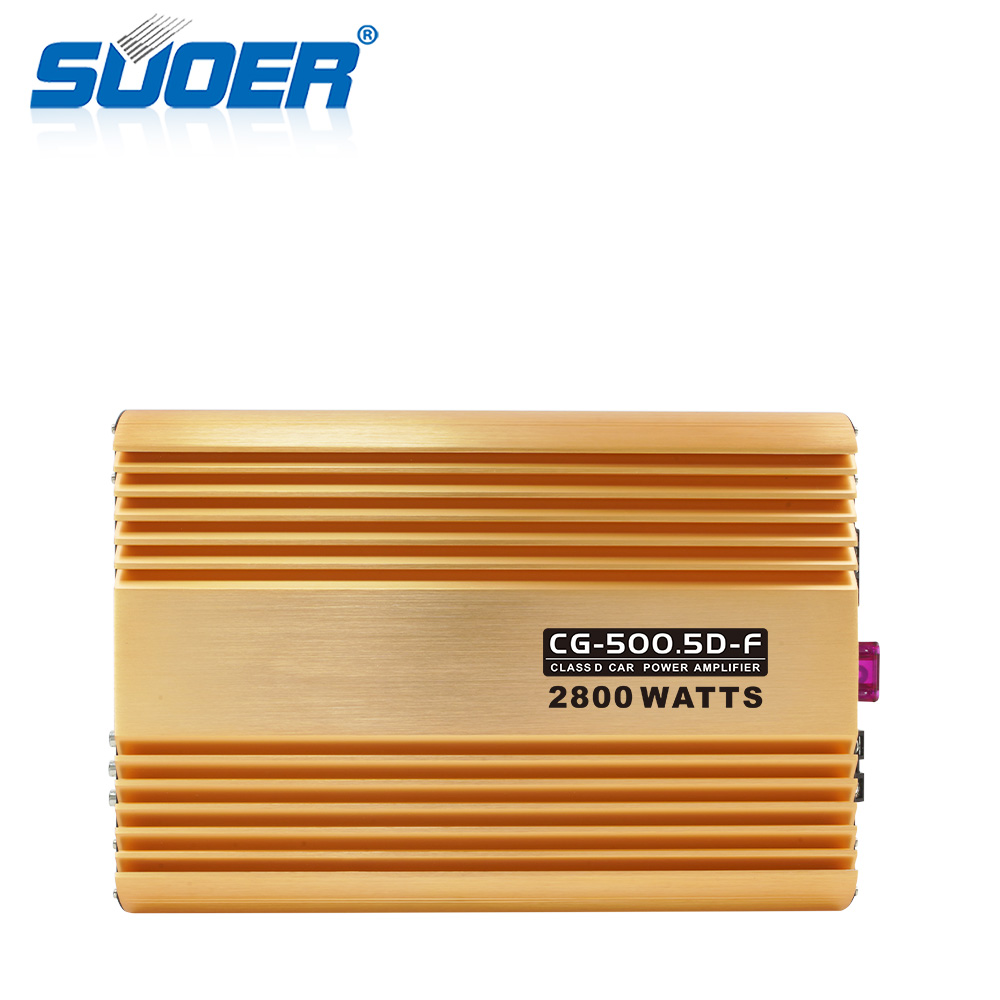

2800W 5-Channel Full Frequency Class D Car Amplifier
This Class D car amplifier features 5 channels and a full frequency response. With a maximum power output of 2800W, it provides ample power for driving multiple speakers and subwoofers.
Technical Specifications
Overview
High-Performance 5-Channel Audio Solution
The CG-500.5D-F is a versatile Class D car amplifier designed to provide a complete audio solution with its 5-channel configuration. Delivering up to 2800W of peak power, it efficiently drives a full range of speakers and subwoofers while maintaining a compact footprint. Its advanced Class D architecture ensures high efficiency and minimal heat generation, making it ideal for high-demand automotive audio installations.
Power Performance
Power Output Ratings
2,800 W
Max Power
5
Channels
92 dB
Signal-to-Noise
RMS Power Specifications
| Configuration | Output Power (RMS) |
|---|---|
| 4 Ohms (THD 1%) | 4 x 120W + 1 x 500W |
| 2 Ohms | 4 x 220W + 1 x 650W |
| Bridged Mode (4 Ohms) | 2 x 450W |
Technical Specifications
- Frequency Response
- 13Hz - 33KHz (-3dB)
- Working Voltage
- 10-16V
- THD & Noise
- < 0.01%
- Input Sensitivity
- 0.2 - 6V
Audio Control
Crossover & Tuning
- High Pass Frequency: 16Hz - 7.6KHz
- Low Pass Frequency: 14Hz - 8KHz
- Bass Boost: 0-6-12 dB at 45Hz
- 2CH/5CH Mode Selection Switch
- Independent Volume Regulators
Physical Design
- Dimensions
- 363 x 240 x 60 mm
- Unit Weight
- 4 kg
- Safety & Protection
- 1x100A FuseProtection CircuitryLED Status IndicatorsClass D Efficiency
