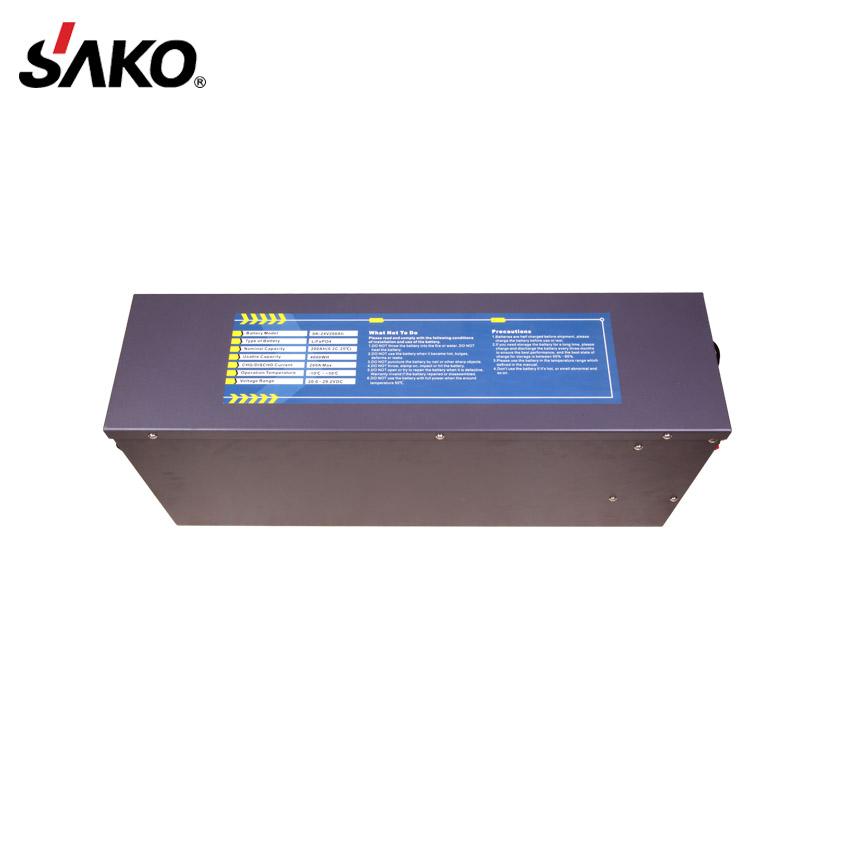

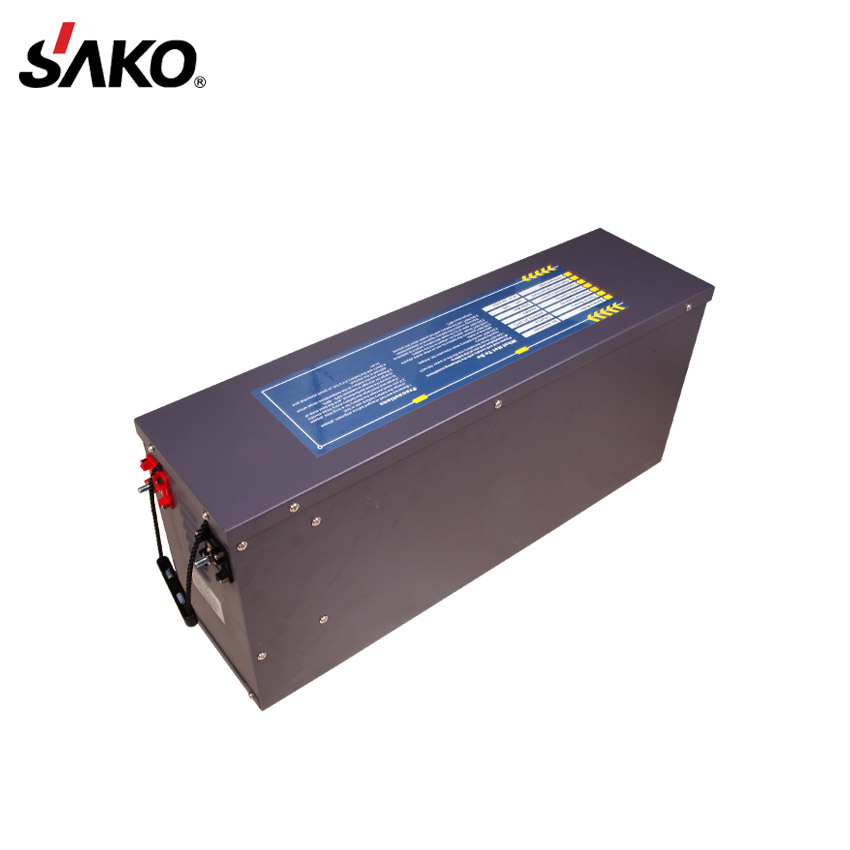

24V 200Ah LiFePO4 Battery Bank for Solar
This 24V 200Ah LiFePO4 lithium battery bank is designed for solar applications. It features an intelligent Battery Management System (BMS) and cell equalizer for optimal performance and longevity.
Technical Specifications
Overview
High-Performance Energy Storage
This 24V 200Ah LiFePO4 battery bank is engineered for robust performance in solar power systems and standby applications. Featuring an integrated intelligent Battery Management System (BMS) and a built-in cell equalizer, it ensures optimal energy density and extended cycle life. Designed for reliability, the unit offers comprehensive protection against over-charging, over-current, and short-circuits, making it a dependable solution for off-grid and communication infrastructure.
Technical Specifications
- Nominal Voltage
- 25.6 V
- Nominal Capacity
- 200 Ah
- Usable Capacity
- 4000 Wh
- Cycle Life
- >3000 Cycles
- Max Charge Current
- 50 A
- Voltage Range
- 20.0-29.2 VDC
Operating Environment
- Operation Temperature
- -10°C to +60°C
- Storage Temperature
- -20°C to +60°C
Features
- Key Features
- Intelligent BMSCell EqualizerHigh Energy DensityNo Memory EffectShort-circuit ProtectionOver-temperature Protection
Applications
Recommended Applications
- Solar Power Systems
- UPS Systems
- Communication Equipment
- Telecommunication Systems
- Standby Power Supplies
