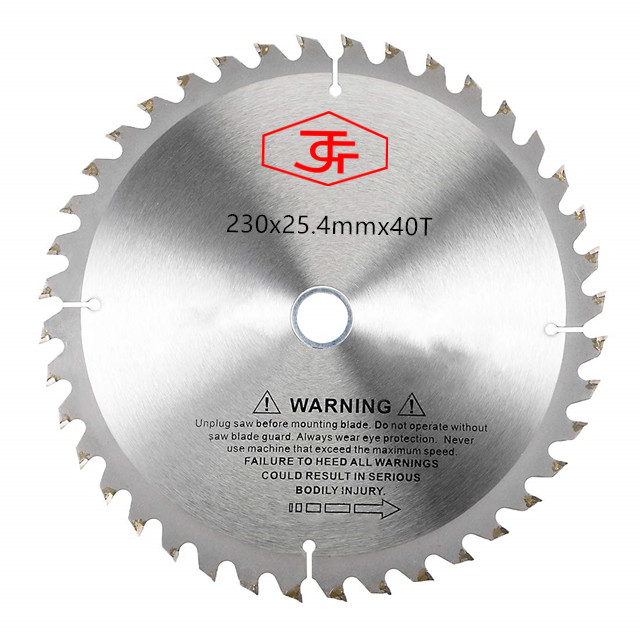

230mm 40T TCT Saw Blade for Wood
This is a tungsten carbide tipped (TCT) saw blade designed for wood-cutting. It measures 230mm in diameter, has a 25.4mm bore, and features 40 teeth.
Technical Specifications
Product Overview
High-Performance TCT Wood Cutting Blade
This 230mm professional-grade Tungsten Carbide Tipped (TCT) saw blade is engineered for precision wood cutting applications. Featuring 40 ATB teeth made from premium YG8 material, it ensures high performance, clean cuts, and long-lasting durability. The blade is treated with electrophoretic rust protection and sandblasted for a clean finish, meeting strict EN 847-1 safety standards.
Technical Specifications
Blade Dimensions
230 mm
Outer Diameter
40 T
Tooth Count
Material Composition
| Component | Material | Hardness |
|---|---|---|
| Blade Body | 50# Steel / 65Mn Steel | HRC 38-46° |
| Carbide Teeth | YG8 Tungsten Carbide | HRA 86-93° |
- Available Bore Sizes
- 20mm25.4mm30mm
Compliance & Features
Standards & Compliance
EN 847-1 CompliantRust ResistantFully Automatic Brazed
Safety Instructions
- Unplug saw before mounting
- Use mandatory saw blade guard
- Always wear eye protection
- Do not exceed maximum machine speed
