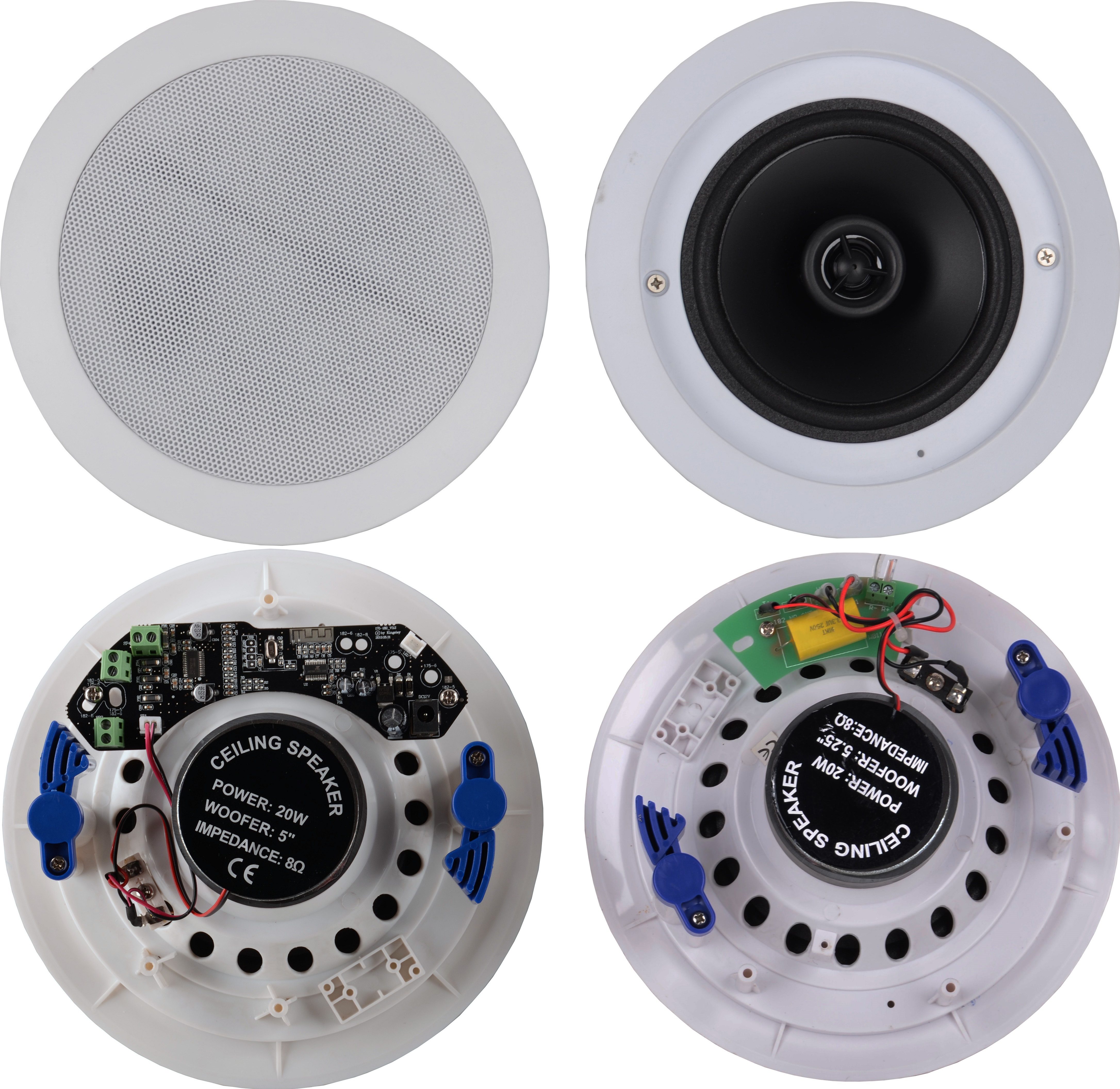

20W 5-Inch Ceiling Speaker

This ceiling speaker delivers 20W output through a 5-inch woofer. It is designed for straightforward installation and operates at 12V DC.

Request a Quote Download PDFPDF

Technical Specifications

Overview

Versatile Ceiling Audio Solution

The HSR182-BT series offers an efficient active Bluetooth ceiling speaker system designed for background music and public address applications. Featuring a high-quality 2-way PP cone loudspeaker design, this kit includes one active and one passive speaker for a complete installation. It is an excellent choice for living rooms, bedrooms, classrooms, and gymnasiums, providing clear speech reproduction and reliable music performance.

Technical Specifications

Load Rating

20 W

Power Output

Frequency Range: 100-20KHz
SPL (@1W/m): 88 dB
Power Input: 12V DC

Components

Driver Configuration

Component	Specification
Woofer Size	5.25 inch
Tweeter Size	1/2 inch Mylar dome

Installation

Physical Dimensions

Overall Diameter: 202 mm
Installation Depth: 68 mm
Cutout Dimension: 166 mm

Certifications

CE Certified

Finish Color: White
