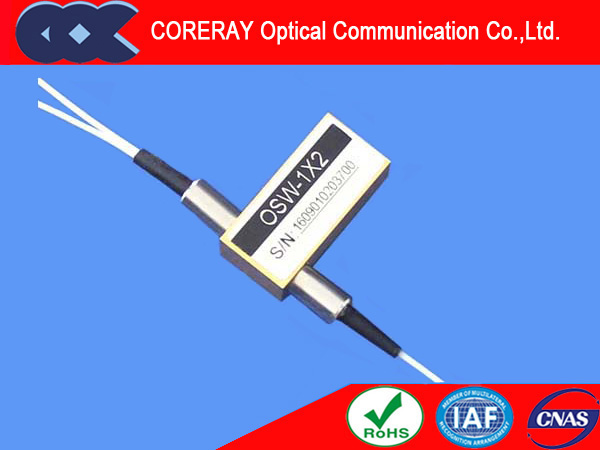

1x2 Fiber Optic Switch
This switch utilizes patented non-mechanical configurations activated by an electrical control signal. Its latching operation maintains the selected optical path even after the drive signal is removed.
Technical Specifications
Overview
High-Performance 1x2 Mechanical Optical Switch
This 1x2 mechanical optical switch is engineered for high reliability and stability in optical communication systems. It provides low insertion loss and low crosstalk, making it an ideal solution for optical signal routing, network protection, and restoration. Featuring a compact, epoxy-free optical path design, this switch supports both latching and non-latching operation modes to suit diverse application requirements.
Key Features
- Main Features
- Low Insertion LossLow CrosstalkHigh StabilityHigh ReliabilityEpoxy-free Optical PathLatching/Non-latching
Performance Metrics
Optical Performance
0.5 dB
Typical Insertion Loss
50 dB
Min Return Loss
55 dB
Min Crosstalk
8 ms
Max Switch Time
Technical Specifications
- Wavelength Range
- 650–1310 nm / 1260–1670 nm
- Power Supply Voltage
- 5 V
- Lifetime Cycles
- ≥ 10^7
- Dimensions (L x W x H)
- 27 x 12.6 x 8.5 mm
- Weight
- 16 g
- Operating Temperature
- -40 to +85 °C
Pinout Configuration

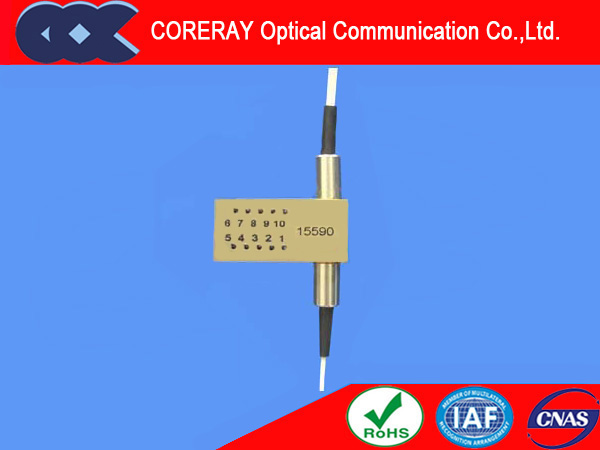

Pinout and Drive Logic
| Type | Optical Path | Status |
|---|---|---|
| Latching | P1-P2 | OPEN |
| Latching | P1-P3 | CLOSE |
| Non-Latching | P1-P2 | OPEN |
